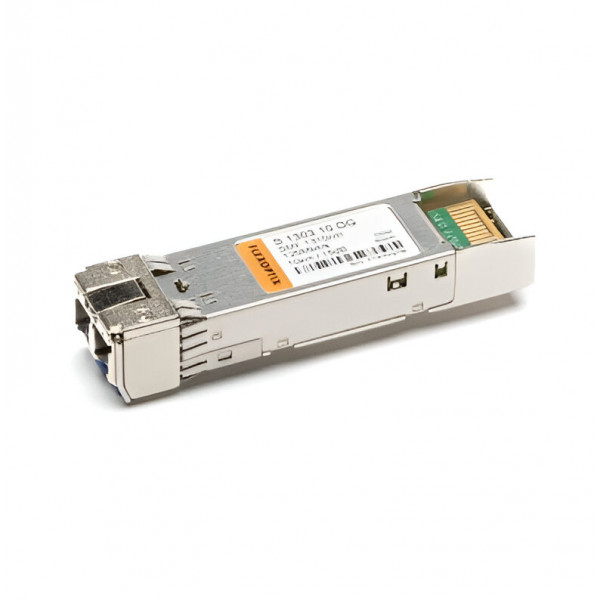

FLEXOPTIX 100M SFP LX SGMII | 10 km, λ1310 nm, DDM, LC-Duplex, Singlemode

Be the first to review this product

SKU #S.1303.10.DG

Universal SFP Transceiver
Use FLEXBOX to configure to almost any vendor
For 100M - 800MBASE-LX Ethernet links
Leverage SMGII to support Fast Ethernet on 1 Gigabit devices
Supported Data Rates: 125 Mbit/s
Up to 10 km via Singlemode OS2
LC-Duplex Connector
Digital Diagnostic Monitoring (DDM)

AU$186.87 AU$205.56

Reordering - Contact to confirm availability

Part Number

S.1303.10.DG

Choose Vendor Compatibility

More Information

Reviews

Product Questions

More Information
Manufacturer	FLEXOPTIX
Product Series	FLEXOPTIX Universal Transceivers
Product Type	Transceivers
Form Factor	SFP
Connector	LC-Duplex PC
Distance	10 km
Interface	LX SGMII
Wavelength TX	1310 nm
Power Budget (dB)	15 dB
Extinction Ratio	9 dB
Bandwidth Range	125 Mbit/s
Laser	FP
Receiver Type	PIN
Wavelength RX (Range)	1200 - 1600 nm
Temperature Range	0°C - 70°C
Type of DDM / DOM	Yes, internally calibrated
Networking Protocol	Fast Ethernet
Vendor Switch Coding	MSA Standard, Juniper
CDR	none
Inbuilt FEC	No
Receiver Min/Max	-30 dBm / 0 dBm (overload)
SGMII	Yes
Transmit Min/Max	-15 dBm / -8 dBm
Power Consumption	1.2 W
Modulation	NRZ
Industry	Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications	Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Warranty	1 Year
Warranty Notes	AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
