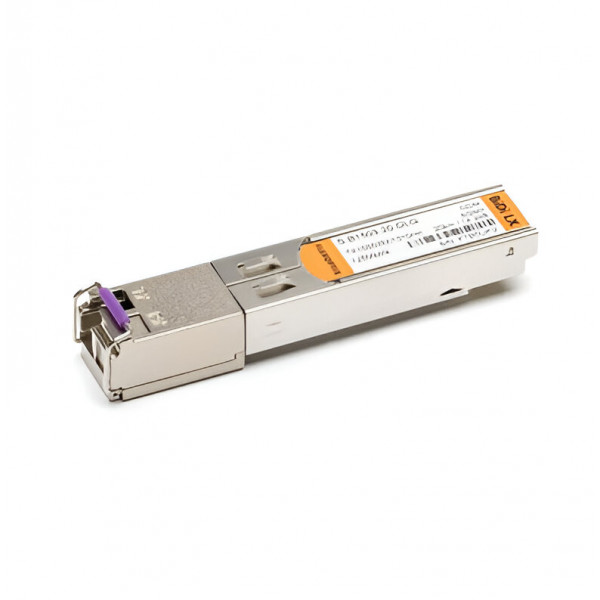

FLEXOPTIX 100M SFP BiDi LX SGMII | 20 km, ᵀˣ1550 / ᴿˣ1310 nm, DDM, LC-Simplex, Singlemode

SKU #S.B1503.20.DLG
  • Universal SFP BiDi Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • Double your bandwidth by using only one fiber for transmit and receive
  • For 100M - 800MBASE-LX Ethernet links
  • Leverage SMGII to support Fast Ethernet on 1 Gigabit devices
  • Supported Data Rates: 125 Mbit/s
  • Up to 20 km via Singlemode OS2
  • LC-Simplex Connector
  • Digital Diagnostic Monitoring (DDM)
AU$242.81 AU$267.09
Confirm stocks / Dispatched from Germany (7 days)
Part Number
S.B1503.20.DLG
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor SFP
Connector LC-Simplex UPC
Distance 20 km
Interface BiDi LX SGMII
Wavelength TX 1550 nm
Power Budget (dB) 14.2 dB
Extinction Ratio 9 dB
Bandwidth Range 125 Mbit/s
Laser FP
Receiver Type PIN
Wavelength RX (Range) 1260 - 1360 nm
Temperature Range 0°C - 70°C
Type of DDM / DOM Yes, internally calibrated
Networking Protocol Fast Ethernet
Vendor Switch Coding MSA Standard
CDR none
Inbuilt FEC No
Receiver Min/Max -29.2 dBm / -8 dBm (overload)
SGMII Yes
Transmit Min/Max -15 dBm / 8 dBm
Power Consumption 1 W
Modulation NRZ
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
