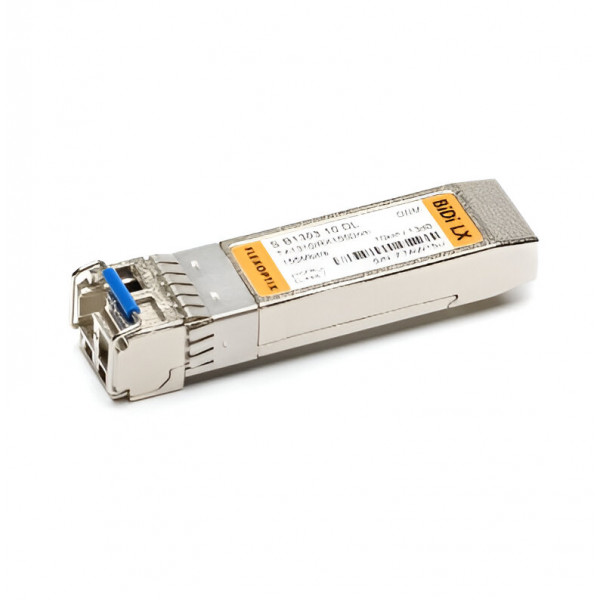

FLEXOPTIX 100M SFP BiDi LX | 10 km, ᵀˣ1310 / ᴿˣ1550 nm, DDM, LC-Simplex, Singlemode
SKU #S.B1303.10.DL
- Universal SFP BiDi Transceiver
- Use FLEXBOX to configure to almost any vendor
- Double your bandwidth by using only one fiber for transmit and receive
- For 100M - 800MBASE-LX Ethernet links
- Supported Data Rates: 125 Mbit/s - 155 Mbit/s
- Up to 10 km via Singlemode OS2
- LC-Simplex Connector
- Digital Diagnostic Monitoring (DDM)
- Need help selecting the right option for your vendor / hardware?
Request compatibility
AU$39.95
AU$43.95
Reordering - Contact to confirm availability
Part Number
S.B1303.10.DL
| Manufacturer | FLEXOPTIX |
|---|---|
| Product Series | FLEXOPTIX Universal Transceivers |
| Product Type | Transceivers |
| Form Factor | SFP |
| Connector | LC |
| Distance | 10 km |
| Interface | BiDi |
| Wavelength TX | 1310 nm |
| Wavelength RX | 1550 nm |
| Power Budget (dB) | 13 dB |
| Transmit Min. | -15 dB |
| Receive Min. | -28 dB |
| Transmit Max. | -8 dB |
| Receive Max. (Receiver Overload) | -8 dB |
| Extinction Ratio | 8.2 dB |
| Bandwidth from | 0.1 G |
| Bandwidth to | 0.2 G |
| Laser | FP |
| Receiver Type | PIN |
| Wavelength TX Min. | 1250nm |
| Wavelength TX Max. | 1350nm |
| Wavelength RX Min. | 1500nm |
| Wavelength RX Max. | 1600nm |
| Temperature Range | 0°C - 70°C |
| Type of DDM / DOM | Internally calibrated |
| Networking Protocol | Fast Ethernet, OC3/STM1 |
| Type | BiDi LX |
| Operating Temp. (Min) | 0°C |
| Operating Temp. (Max) | 70°C |
| Vendor Switch Coding | MSA Standard |
| Industry | Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks |
| Applications | Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking |
| Standard Package Contains | |
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team |
