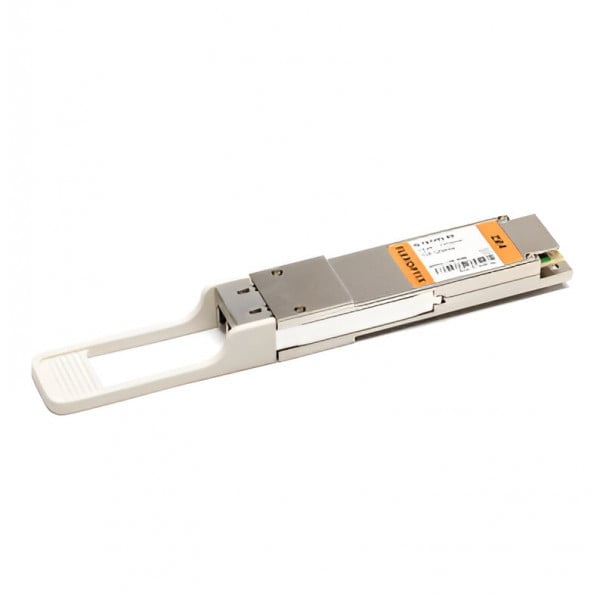

FLEXOPTIX 100G QSFP28 ZR4 with dual CDR | 80 km, λ1296-1309 nm, LC-Duplex, Singlemode

SKU #Q.161HG.80
  • Universal QSFP28 Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • For 100GBASE-ZR4 Ethernet links
  • Integrated Clock-Data-Recovery (CDR)
  • Sensitivity of -28 dBm is with enable KR4 FEC in Host, specified for IUT-T G.652
  • Supported Data Rates: 103.12 Gbit/s
  • Up to 80 km via Singlemode OS2
  • LC-Duplex Connector
AU$4,646.50 AU$5,111.15
Reordering - Contact to confirm availability
Part Number
Q.161HG.80
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor QSFP28
Connector LC-Duplex PC
Distance 80 km
Interface ZR4
Wavelength TX 1295.6 nm|1300 nm|1304.6 nm|1309.1 nm
Power Budget (dB) 30 dB
Extinction Ratio 6 dB
Bandwidth Range 103.12 Gbit/s
Laser EML
Receiver Type SOA + PIN
Temperature Range 0°C - 70°C
Type of DDM / DOM Yes, internally calibrated
Networking Protocol 100G Ethernet
Vendor Switch Coding MSA Standard, Arista Networks, Cisco Systems, Extreme, Huawei, Juniper, Nokia (ex. Alcatel-Lucent)
CDR TX and RX
Inbuilt FEC No
Bandwidth Per Lane 25.78 Gbit/s
Receiver Min/Max -28 dBm / -3.5 dBm (overload)
SGMII No
Transmit Min/Max 2 dBm / 6.5 dBm
Power Consumption 6.5 W
Lane Count 4x (Tx/Rx)
Modulation NRZ
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
