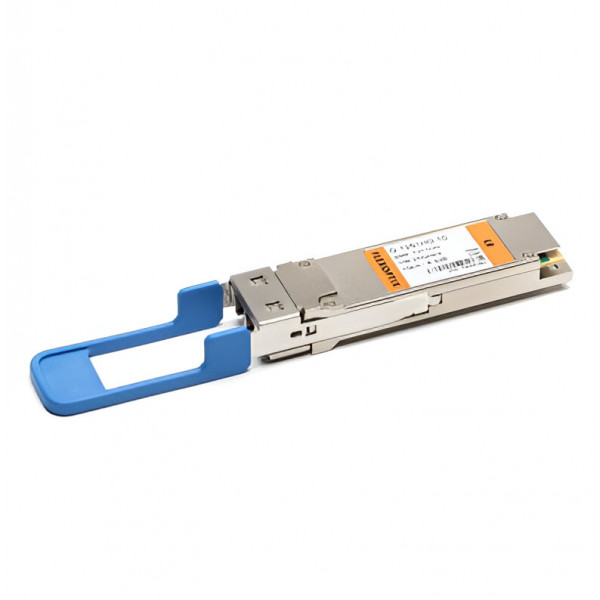

FLEXOPTIX 100G QSFP28 LR with dual CDR | 10 km, λ1311 nm, LC-Duplex, Singlemode
SKU #Q.13S1HG.10
- Universal QSFP28 Transceiver
- Use FLEXBOX to configure to almost any vendor
- For 100GBASE-LR Ethernet links
- Integrated Clock-Data-Recovery (CDR)
- PAM4 modulated signal
- Supported Data Rates: 106.25 Gbit/s
- Up to 10 km via Singlemode OS2
- LC-Duplex Connector
AU$607.19
AU$667.91
Confirm stocks / Dispatched from Germany (7 days)
Part Number
Q.13S1HG.10
| Manufacturer | FLEXOPTIX |
|---|---|
| Product Series | FLEXOPTIX Universal Transceivers |
| Product Type | Transceivers |
| Form Factor | QSFP28 |
| Connector | LC-Duplex PC |
| Distance | 10 km |
| Interface | Singlemode |
| Power Budget (dB) | 6.3 dB |
| Transmit Min. | -1.4 dBm |
| Receive Min. | -7.7 dBm |
| Transmit Max. | 4.5 dBm |
| Receive Max. (Receiver Overload) | 4.5 dBm (overload) |
| Transmit and Dispersion Penalty | 3.4 dB |
| Extinction Ratio | 3.5 dB |
| Bandwidth from | 106.25 Gbit/s |
| Laser | EML |
| Receiver Type | APD |
| Wavelength TX Min. | 1304.5 nm |
| Wavelength TX Max. | 1317.5 nm |
| Wavelength RX Min. | 1304.5 nm |
| Wavelength RX Max. | 1317.5 nm |
| Temperature Range | 0°C - 70°C |
| Type of DDM / DOM | Internally calibrated |
| Networking Protocol | 100G Ethernet LAN, 100G Infiniband EDR |
| Type | LR |
| Operating Temp. (Min) | 0°C |
| Operating Temp. (Max) | 70°C |
| Vendor Switch Coding | MSA Standard, Cisco Systems |
| Industry | Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks |
| Applications | Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking |
| Standard Package Contains | |
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team, Engineered to FLEXOPTIX exacting standards You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires |
