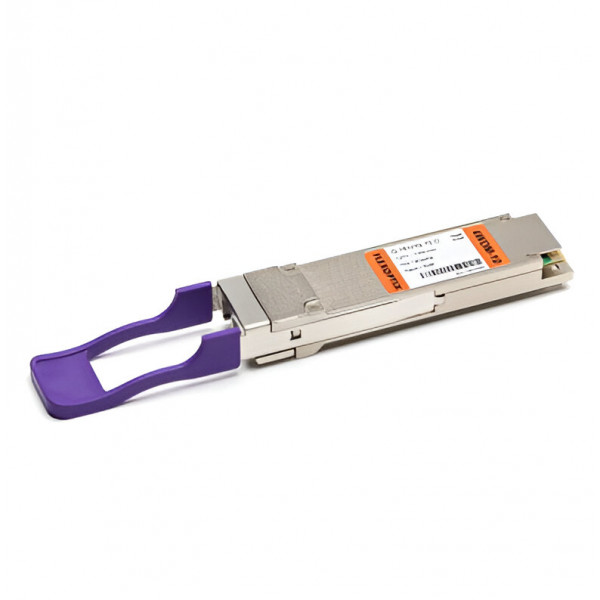

FLEXOPTIX 100G QSFP28 4WDM-10 with dual CDR | 10 km, λ1271-1331 nm, LC-Duplex, Singlemode

Be the first to review this product

SKU #Q.161HG.10.C

Universal QSFP28 Transceiver
Use FLEXBOX to configure to almost any vendor
For 100GBASE-4WDM-10 Ethernet links
Integrated Clock-Data-Recovery (CDR)
Supported Data Rates: 103.12 Gbit/s
Up to 10 km via Singlemode OS2
LC-Duplex Connector

AU$545.58 AU$600.14

Reordering - Contact to confirm availability

Part Number

Q.161HG.10.C

Choose Vendor Compatibility

More Information

Reviews

Product Questions

More Information
Manufacturer	FLEXOPTIX
Product Series	FLEXOPTIX Universal Transceivers
Product Type	Transceivers
Form Factor	QSFP28
Connector	LC-Duplex PC
Distance	10 km
Interface	4WDM-10
Wavelength TX	1271 nm\|1291 nm\|1311 nm\|1331 nm
Power Budget (dB)	5 dB
Transmit and Dispersion Penalty	3 dB
Extinction Ratio	3.5 dB
Bandwidth Range	103.12 Gbit/s
Laser	DFB
Receiver Type	PIN
Temperature Range	0°C - 70°C
Type of DDM / DOM	Yes, internally calibrated
Networking Protocol	100G Ethernet
Vendor Switch Coding	MSA Standard, Arista Networks, Brocade, Cisco Systems, Cumulus Networks, Juniper
CDR	TX and RX
Inbuilt FEC	No
Bandwidth Per Lane	25.78 Gbit/s
Receiver Min/Max	-11.5 dBm / 2.5 dBm (overload)
SGMII	No
Transmit Min/Max	-6.5 dBm / 2.5 dBm
Power Consumption	3.5 W
Lane Count	4x (Tx/Rx)
Modulation	NRZ
Industry	Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications	Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Warranty	1 Year
Warranty Notes	AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
