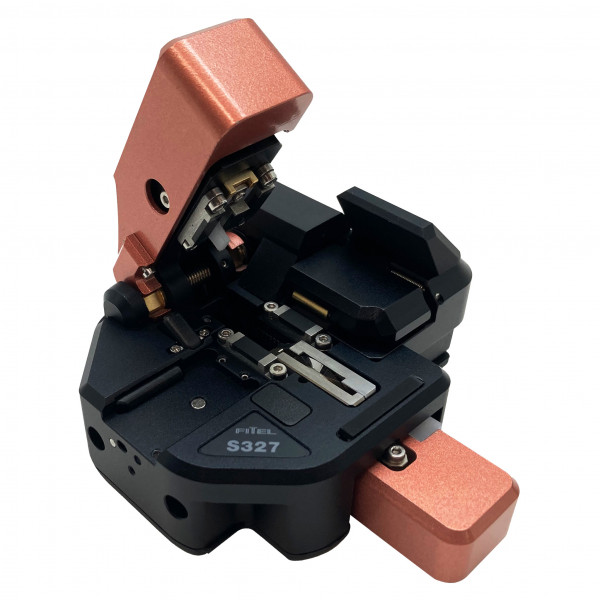

FITEL S327 High Precision Optical Fiber Cleaver

SKU #473031 | MFR #S327A-01
  • Latest model, featuring the most durable blade on the market (65000 cleaves)
  • Easy blade replacement can be done in 1 minute with no special tools and needs no other adjustments
  • Suits both single fibre and 12 fibre ribbon cable
  • Consistent cleaving quality
AU$877.01 AU$964.71
Request current lead time
Part Number
473031

Features

  • The most durable blade on the market (65000 cleaves)
  • One-click blade rotation to one of 24 positions
  • New easy to replace blade mechanism avoids servicing downtime
  • Versatile – handheld or desktop operation
  • Switchable opening angle, depending on use
  • Consistent cleaving quality

Introduction

The Fitel S327 high precision fiber optic cleaver, ergonomically designed  for a range of Telecoms and Production applications.

This one-action cleaver provides seamless and repeatable cleaving for both single and ribbon fiber.

Capable of 65,000 cleaves the S327 offers the longest blade life in the market. Easy blade replacement can be done in 1 minute with no special tools and needs no other adjustments.

The small footprint allows handheld operation or traditional desktop use  and fiber ends are automatically collected in the waste bin.

The S326 cleaver offers optical fibre cleaving for a full range of OSP and OEM applications.

Specifications

Applicable Fibers Silica
Fibre Count Single fiber
250µm: 2~12 fiber ribbon
200µm: 2~16 fiber ribbon
Clad Diameter 125um
Coating Diameter Single fiber: 0.20~3.0 mm
Ribbon fiber: 0.20~0.40 mm×0.25 mm pitch
Ribbon fiber: 0.20~0.40 mm×0.20 mm pitch
Cleave Length Single fiber: 3mm~*1
Tape: 10mm~
Ribbon Fibre: Fixed length 10mm
Blade Life 65,000 fiber (2,500 fiber per cutting blade position)*2
Dimensions (mm) 88W×93D×54H mm (Closed for carrying)
Weight 320g



1 Cutting lengths of more than 3 mm but less than 5 mm are only available with a coating diameter of 0.25 mm or less.

2 The cutting blade life depends on the operation environment and condition. The number can vary and is not guaranteed. 0.20 mm pitch ribbon fiber decrease of cleaves.

More Information
Manufacturer FITEL (Furukawa Electric)
Manufacturer Part Number S327A-01
Product Series FITEL S327 High Precision Optical Fiber Cleaver
Product Type Cleavers
Fiber Compatibility Singlemode 9/125μm (OS1, OS2) (ITU-T G.652), Multimode 50/125μm (OM2, OM3, OM4) (ITU-T G.651.1), Multimode 62.5/125μm (OM1) (IEC60793-2-10), 12 Fiber Flat Ribbon Cable (ITU-T G.652D)
Size / Operation Aerial, Benchtop, Compact, Handheld, Light weight, Rugged
Case Included Semi-hard case
Splicer: Fiber Count Single to 12-Ribbon Fibers
Fiber: Cleave Length Ribbon Fibre: Fixed length 10mm, Single Fibre: Fixed length 10 & 16mm, Single Fibre: Variable length 3 ~ 20mm
Industry Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Aerospace and Defence, Fiber Optic Lasers, Medical, Optical Equipment Manufacturing (OEM), Research, Broadcast, Mining, Off-shore and Remote
Applications Access Construction (Underground, Aerial), Drop Construction (Aerial, Underground), Telecommunications (Back Bone, Metro & Long-haul), Long-haul installation, CO (Central Office) LAN and Network, OSP (Out Side Plant), NBN (National Broadband Network), Wideband Transmission Network, NBN: Single Fibre, NBN: 12 Fiber Flat Ribbon Cable (ITU-T G.652D), PON / FTTx (including FTTP (GPON), FTTH, and FTTB), LAN Installation, Fiber Preparation Equipment, Acoustic and seismic sensing, Testing of high speed optical receivers, Distributed Temperature and Strain (DTSS), Tunable heterodyne source, Mining, Oil and Gas, Installers and Telco Contractors, Research and Development
Recommended Service Interval 1 Year
Equipment Service/Calibration Notes Equipment used in harsh environments may require more frequent servicing and calibration intervals
Standard Package Contains

1 x S327A-01 Main Body

1 x S327X-12 Waste Bin

2 x S327X-16 Hex Wrench

1 x S327X-18 Single Fibre Adapter (scales 5-16mm)

1 x FTS-B616 Operating Instructions

Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
