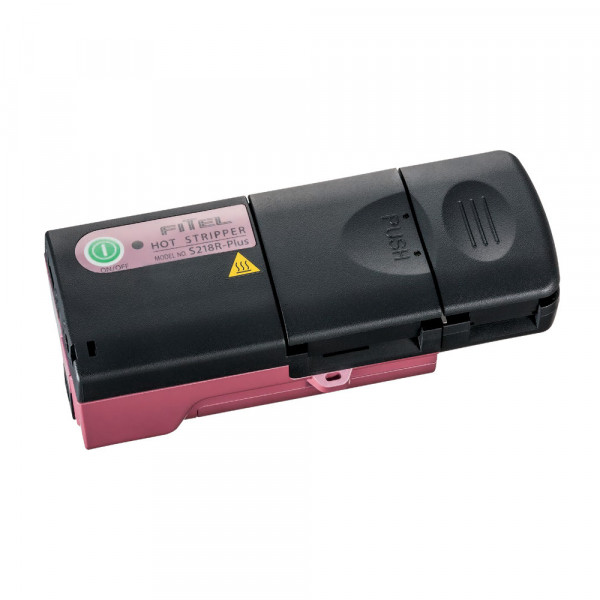

FITEL S218R-Plus Thermal Stripper for Rollable, Ribbon and Single Fibres

SKU #302626 | MFR #S218R-Plus-01
Exceptionally clean stripping. Long 10 hour battery capacity. Added compatibility with 200 micron rollable ribbon fibres, as well as NBN ribbon, and single fibre types.
AU$1,697.35 AU$1,867.09
In Stock / Available for Dispatch
Part Number
302626

Features

  • Exceptionally clean stripping performance for Single, Ribbon, and Rollable Ribbon fibres
  • Flexible, long battery capacity (10 Hours) with built-in battery recharger so you can charge and work with AC power
  • Easy operation
  • Durable industrial design

Description

The new and improved S218R-Plus meets the demanding requirements of Rollable Ribbon installations currently being driven by data centres and their increasing need for density and efficiency.

At 200 micron, Rollable Ribbon is thinner than the conventional ribbon fiber. To remove this coating with a thermal stripper adequately requires a very high degree of accuracy in the peeling mechanism. In order to address to this issue, the S218R has been updated along with our next generation of fusion splicers to support the adaption of 200 μm Rollable Ribbon fibre, as well as stripping for both conventional ribbon fiber and single fibre types.

Specifications



Fibre Types All optical fiber (glass) types - single to 12-fibre ribbons
Clad Diameter 0.125mm
Coating Diameter 0.2mm ~ 0.4mm for single fibre
0.25 to 0.4mm (thickness)
Heating Temperature 80 to 140°C (4 steps of temperature)
Power Source (using S952 AC Adaptor) DC 11 ~ 14V
AC 85 ~ 264V
Battery Running Time Approx. 10 hours (Normal Mode)
Charge Time Approx. 2.5 hours (while unit is switched off)
Operating Environment (non-condensing) Temperature: 0 ~ 40°C
Humidity: Below 95%
Dimensions (mm) 125W x 48D x 41H
Weight 260g (including battery)



Standard Package

  • Main body S218R-Plus-01
  • Battery S944
  • AC adapter S952
  • Bag for main body S218X-04
  • Hexagon Wrench S218X-07
  • Screw driver S218X-20
  • Hexagon Wrench S218X-07
  • Cleaning brush VGC-01
  • Operation Manual FTS-B553
More Information
Manufacturer FITEL (Furukawa Electric)
Manufacturer Part Number S218R-Plus-01
Product Series FITEL S218R Thermal Stripper
Product Type Fiber Stripping Tools
Fiber Compatibility Singlemode 9/125μm (OS1, OS2) (ITU-T G.652), Multimode 50/125μm (OM2, OM3, OM4) (ITU-T G.651.1), Multimode 62.5/125μm (OM1) (IEC60793-2-10), 12 Fiber Flat Ribbon Cable (ITU-T G.652D), Dispersion-Shifted Fiber (DSF) (ITU-T G.653), Non Zero-Dispersion-Shifted Fiber (NZDSF) (ITU-T G.655), Ultra Bend Insensitive Fiber (BIF/UBIF) (ITU-T G.657), Cut-off Shifted Fiber (ITU-T G.654, Large Area type)
Size / Operation Handheld
Battery Capacity 10 hours
Case Included Soft case
Protection Level Ruggedised
Industry Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Mining, Off-shore and Remote
Applications Access Construction (Underground, Aerial), Drop Construction (Aerial, Underground), Telecommunications (Back Bone, Metro & Long-haul), Long-haul installation, OSP (Out Side Plant), NBN (National Broadband Network), Wideband Transmission Network, NBN: Single Fibre, NBN: 12 Fiber Flat Ribbon Cable (ITU-T G.652D), LAN Installation, Fiber Preparation Equipment, LIDAR and remote sensing
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
