FITEL S185LDF/S185PMLDF High-end Fusion Splicers for LDF & PM-LDF splicing

Contact to confirm lead time
Part Number
S185LDF/S185PMLDF
The FITEL S185LDF / S185PMLDF High-end Fusion Splicers for LDF and PMLDF splicing up to 500μm. Low splice loss, compact size. Designed for production, manufacturing and R&D applications.
Request Quote

Features

  • Fusion Splicers for LDF and PMLDF splicing up to 500μm
  • Low splice loss
  • Compact size
  • High capacity built-in battery (Optional)
  • LCD touch panel provides easy operation
  • Fiber clamps land gently to prevent damage to the fiber
  • Remote control by Wi-Fi communication

Overview

The FITEL S185LDF / S185PMLDF High-end Fusion Splicers are designed for splicing up to 500μm cladding fiber with low splice loss.

The powerful and compact design has been optimised for the Fiber laser industry. The new fiber alignment mechanism achieves low splice loss. The new design allows for the fiber clamps to land gently to reduce the possibility of damage to fiber. Battery operation and a compact design make transportation easy for the LDF Fusion splicer.

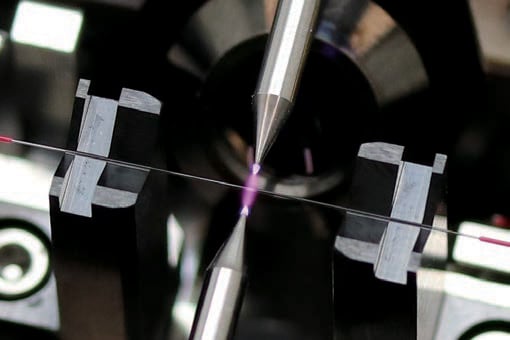

Low splice loss
Low splice loss

Precise alignment with resolution of 0.03μm for fiber axis

Prevent damage
Prevent damage

Fiber clamps land gently to prevent damage to the fiber

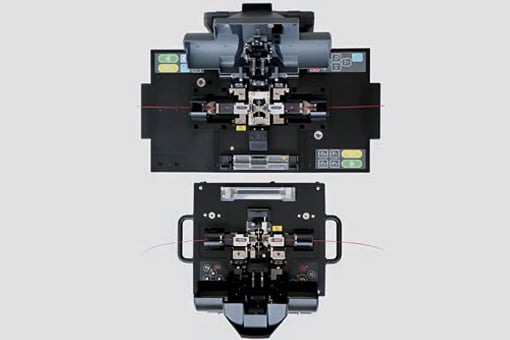

Footprint is 46% smaller than previous model
Compact size

Footprint is 46% smaller than previous model

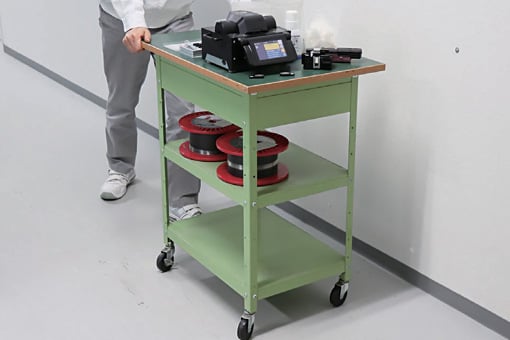

Battery operation and a compact design make transportation easy
Built-in battery

Battery operation and a compact design to make transportation easy

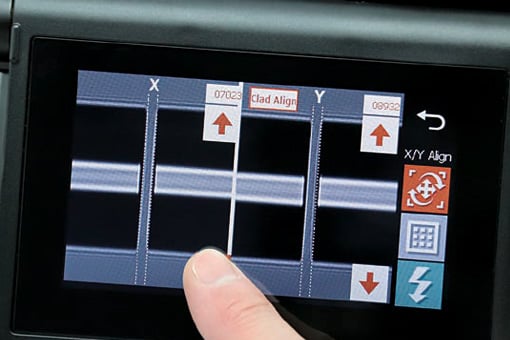

Easy and intuitive touch panel operation and GUI
Touch panel

Easy and intuitive touch panel operation and GUI

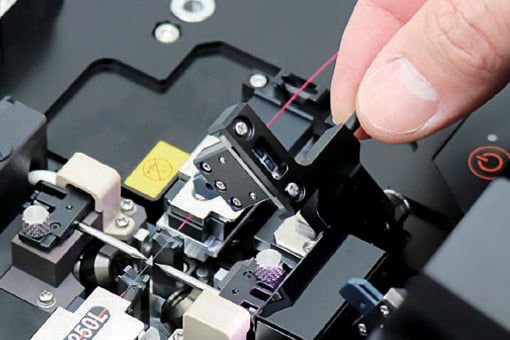

Soft-closing clamps
Soft-closing clamps

Releasing the fiber clamp links allow the fiber clamps to be placed without closing the canopy

Remote control is available by Wi-Fi
Wi-Fi communication

Remote control is available by Wi-Fi

Auto-flip display
Auto-flip display

Automatically adjusts image when LCD display is flipped





Specifications

Description

S185LDF

S185PMLDF

Applicable fibers*1

SM, MM, DS, NZDS, High-Index, EDF, LDF

SM, MM, DS, NZDS, High-Index, EDF, LDF, PMF

Cladding diameter

80 to 500μm

Coating diameter

160 to 2000μm (In Fiber holder) 160 to 900μm (Coating clamp splice)

160 to 1300μm (In Fiber holder) 160 to 900μm (Coating clamp splice)

Fiber cleave length

3 to 5mm (Coating clamp splice) 8 to 11mm (Cladding clamp splice)

Typical splice loss*2

SM(ITU-T G652): 0.014dB

Typical extinction ratio*2

PANDA: -36.8dB*3 (Angle offset: 0.6degree)

Return loss

>60dB

Typical splice time*4

15s (SM by cladding clamp splice)

15s (SM by cladding clamp splice) 40s (PANDA by cladding clamp splice)

Tension strength

1.96 (+0% to +20%)

Applicable protection sleeve length

10 to 60mm

Typical heat time

35s (S922:40mm sleeve)

Splice programs

Max.200

Heater programs

Max.100

Splice data storage

Max. 1000 including 4 images before and after splice

Fiber image magnification on LCD

104X, 278X or 556X

Dimension

210W x 180D x 150H mm

Weight (without Battery)

4.5kg

4.75kg

Monitor

4.3” wide color LCD with touch panel

Data output

USB ver. 2.0 type A: 1 port USB ver. 2.0 mini B: 1 port

Battery capacity (Optional)*5

Typical 60 splice / heat cycles

Operating temperature

0 to 40°C

Storage temperature

-40 to 60°C

Humidity

0 to 90% (Non-condensing)

Power source

AC input 100 to 240V (50/60Hz)

  1. Fibers should be applied to ITU-T standard. In case of other fibers, depending on the type of fiber, the optimisation of splice program may be needed or the splice result may not be satisfied.
  2. These are references. Depending on the environment and condition, the number vary.
  3. Extinction ratio -36.8dB is measured in the condition that the initial extinction ratio is -40dB and there is the splice with 0.6 degree of rotation offset.
  4. This value is references. Depending on the type of fiber and condition of fiber on splicer, the number can vary.
  5. This value can produce using fully charged brand new battery at room temperature 20 degree C. Depending on the condition of the battery and operation environment, the number can vary.



Optional Components



Item

P/N

Quantity

160μm Coating Fiber Holder

S713S-160

1pair

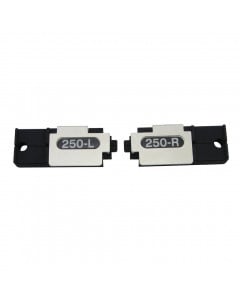

250μm Coating Fiber Holder

S713S-250

1pair

400μm Coating Fiber Holder

S713S-400

1pair

650μm Coating Fiber Holder

S713S-650

1pair

900μm Coating Fiber Holder

S713S-900

1pair

1300μm Coating Fiber Holder

S713S-1300

1pair

Customized Fiber Holder*6

S713S-XXX

1pair

Hard Carrying Case

HCC-12

1

Built-in Battery Pack

S947B

1

USB Cable

USB-01

1

Wi-Fi Dongle

WFD-01

1

More Information
Manufacturer FITEL (Furukawa Electric)
Product Series FITEL S185LDF/S185PMLDF Fusion Splicers for LDF and PMLDF Splicing up to 500μm
Type Fusion Splicers
Fiber Compatibility Singlemode 9/125μm (OS1, OS2) (ITU-T G.652), Multimode 50/125μm (OM2, OM3, OM4) (ITU-T G.651.1), Multimode 62.5/125μm (OM1) (IEC60793-2-10), Dispersion-Shifted Fiber (DSF) (ITU-T G.653), Non Zero-Dispersion-Shifted Fiber (NZDSF) (ITU-T G.655), Erbium-Doped Fiber (EDF), Large Diameter Fiber (LDF), Polarization Maintaining Fiber (PMF)
Size / Operation Benchtop
Battery Capacity Typical 60 splice / heat cycles
Case Included Hard case
Device Connectivity via USB, WiFi
Splicer: Alignment Type Active, Core
Splicer: Fiber Count Single Fiber
Splicer: Special Applications Arc scanning function, Dissimilar fiber, Fiber rotation function, High Strength, Large Diameter fiber (Up to 1200um), Large Diameter fiber (Up to 500um), PM fiber
Splicer: Splice Time SM: 15 sec
Splicer: Heater time 40mm: 35 sec
Fiber Cladding Diameter 80 to 500μm
Industry Telecommunications, Carriers, Service and Content Providers, Aerospace and Defence, Fiber Optic Lasers, Medical, Optical Equipment Manufacturing (OEM), Photonics, Research
Applications OEM (Optical Equipment Manufacturing), Automated Manufacturing, High-Volume Manufacturing, High-Yield Manufacturing, High-Strength Fiber Splicing, LDF (Large Diameter Fiber), Specialty and Exotic Fiber Splicing, Dissimilar-Fiber Splicing, PCF (Photonic Crystal Fiber) Splicing, MFA (Mode Field Adapter) Processing, Small Gyro Fiber Splicing, Mining, Oil and Gas, Research and Development, Fusion Splicing
Recommended Service Interval 1 Year
Equipment Service/Calibration Notes 1st service free - valid at AusOptic for 12 months after purchase
Standard Package Contains
  • S185LDF Main body (S185LDF- X-A-0001)
  • S185PMLDF Main body (S185PMLDF- X-A-0001)
  • Hard Carrying Case (HCC-12)
  • Built-in Battery Pack (S947B)
  • AC Adapter (S981A)
  • AC Cable Cord
  • Z Stage Lock (ZL-01)
  • Spare Electrode (ELR-03)
  • Electrode Sharpener (D5111)
  • Cleaning Brush (VGC-01)
  • User Manual
Warranty 2 Years
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
