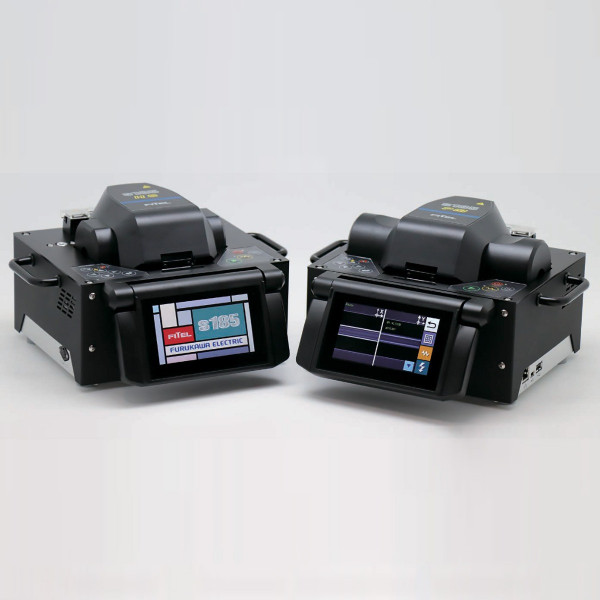

The FITEL S185HS / S185PM High-end Fusion Splicers for PMF and High strength splicing. Low splice loss, compact size. Designed for production, manufacturing and R&D applications.

Request Quote

Details

Features

Fusion Splicers for PMF and High strength splicing
Low splice loss
Compact size
High capacity built-in battery (Optional)
LCD touch panel provides easy operation
Short fiber cleave length allows to use ultra mini sleeve
Remote control by Wi-Fi communication

Overview

The FITEL S185HS / S185PM High-end Fusion Splicers are designed for splicing specialty fibers for factory, manufacturing and R&D applications. The compact but powerful design has been optimised for use in the optical component and optical sensor fields. By targeting the necessary functions in these applications, exceptional performance and a compact design are achieved with these High-end Fusion Splicers.

Low splice loss

Precise alignment with resolution of 0.03μm for fiber axis

High ext. ratio

Accurate 360 degree fiber rotation with a resolution of 0.1 degree

Compact size

Footprint is 46% smaller than previous model

Battery operation and a compact design make transportation easy

Built-in battery

Battery operation and a compact design to make transportation easy

Touch panel

Easy and intuitive touch panel operation and GUI

Short cleave length

Short cleave length allows to reinforce the exposed glass with ultra mini sleeve

Wi-Fi communication

Remote control is available by Wi-Fi

Auto-ﬂip display

Automatically adjusts image when LCD display is flipped

Specifications

Description	S185HS	S185PM
*Applicable fibers1**	SM, MM, DS, NZDS, High-Index, EDF	SM, MM, DS, NZDS, High-Index, EDF, PMF
Cladding diameter	80 to 150μm
Coating diameter	160 to 2000μm (In Fiber holder) 160 to 900μm (Coating clamp splice)	160 to 1300μm (In Fiber holder) 160 to 900μm (Coating clamp splice)
Fiber cleave length	3 to 5mm (Coating clamp splice) 8 to 11mm (Cladding clamp splice)
*Typical splice loss2**	SM(ITU-T G652): 0.014dB
*Typical extinction ratio2**	−	PANDA: -36.8dB*3 (Angle offset: 0.6degree)
Return loss	>60dB
*Typical splice time4**	15s (SM by cladding clamp splice)	15s (SM by cladding clamp splice) 40s (PANDA by cladding clamp splice)
Tension strength	1.96 (+0% to +20%)
Applicable protection sleeve length	10 to 60mm
Typical heat time	35s (S922:40mm sleeve)
Splice programs	Max.200
Heater programs	Max.100
Splice data storage	Max. 1000 including 4 images before and after splice
Fiber image magnification on LCD	104X, 278X or 556X
Dimension	210W x 180D x 150H mm
Weight (without Battery)	4.5kg	4.75kg
Monitor	4.3” wide color LCD with touch panel
Data output	USB ver. 2.0 type A: 1 port USB ver. 2.0 mini B: 1 port
*Battery capacity (Optional)5**	Typical 60 splice / heat cycles
Operating temperature	0 to 40°C
Storage temperature	-40 to 60°C
Humidity	0 to 90% (Non-condensing)
Power source	AC input 100 to 240V (50/60Hz)

Fibers should be applied to ITU-T standard. In case of other fibers, depending on the type of fiber, the optimization of splice program may be needed or the splice result may not be satisfied.
These are references. Depending on the environment and condition, the number vary.
Extinction ratio -36.8dB is measured in the condition that the initial extinction ratio is -40dB and there is the splice with 0.6 degree of rotation offset.
This value is references. Depending on the type of fiber and condition of fiber on splicer, the number can vary.

Optional Components

Item	P/N	Quantity
160μm Coating Fiber Holder	S713S-160	1pair
250μm Coating Fiber Holder	S713S-250	1pair
400μm Coating Fiber Holder	S713S-400	1pair
650μm Coating Fiber Holder	S713S-650	1pair
900μm Coating Fiber Holder	S713S-900	1pair
1300μm Coating Fiber Holder	S713S-1300	1pair
Customized Fiber Holder*6	S713S-XXX	1pair
Hard Carrying Case	HCC-12	1
Built-in Battery Pack	S947B	1
USB Cable	USB-01	1
Wi-Fi Dongle	WFD-01	1

More Information

More Information
Manufacturer	FITEL (Furukawa Electric)
Product Series	FITEL S185HS/S185PM Fusion Splicers for PMF and High Strength Splicing
Type	Fusion Splicers
Fiber Compatibility	Singlemode 9/125μm (OS1, OS2) (ITU-T G.652), Multimode 50/125μm (OM2, OM3, OM4) (ITU-T G.651.1), Multimode 62.5/125μm (OM1) (IEC60793-2-10), Dispersion-Shifted Fiber (DSF) (ITU-T G.653), Non Zero-Dispersion-Shifted Fiber (NZDSF) (ITU-T G.655), Erbium-Doped Fiber (EDF), Large Diameter Fiber (LDF), Polarization Maintaining Fiber (PMF)
Size / Operation	Benchtop
Battery Capacity	Typical 60 splice / heat cycles
Case Included	Hard case
Device Connectivity via	USB, WiFi
Splicer: Alignment Type	Active, Core
Splicer: Fiber Count	Single Fiber
Splicer: Special Applications	Arc scanning function, Dissimilar fiber, Fiber rotation function, High Strength, Large Diameter fiber (Up to 500um), PM fiber
Splicer: Splice Time	SM: 15 sec
Splicer: Heater time	40mm: 35 sec
Fiber Cladding Diameter	80 to 150μm
Industry	Telecommunications, Carriers, Service and Content Providers, Aerospace and Defence, Fiber Optic Lasers, Medical, Optical Equipment Manufacturing (OEM), Photonics, Research
Applications	OEM (Optical Equipment Manufacturing), Automated Manufacturing, High-Volume Manufacturing, High-Yield Manufacturing, High-Strength Fiber Splicing, LDF (Large Diameter Fiber), Specialty and Exotic Fiber Splicing, Dissimilar-Fiber Splicing, PCF (Photonic Crystal Fiber) Splicing, MFA (Mode Field Adapter) Processing, Small Gyro Fiber Splicing, Mining, Oil and Gas, Research and Development, Fusion Splicing
Recommended Service Interval	1 Year
Equipment Service/Calibration Notes	1st service free - valid at AusOptic for 12 months after purchase
Standard Package Contains	S185HS Main body (S185HSX-A-0001) S185PM Main body (S185PMX-A-0001) Hard Carrying Case (HCC-12) Built-in Battery Pack (S947B) AC Adapter (S981A) AC Cable Cord Z Stage Lock (ZL-01) Spare Electrode (ELR-03) Electrode Sharpener (D5111) Cleaning Brush (VGC-01) User Manual
Warranty	2 Years
Warranty Notes	AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
