FITEL S154-AC Active Clad Aligning Splicer

Features

• Robust performance with long uptime
• Compatible with various types of Splice-On-Connectors (SOCs)
• Fast and reliable fiber splicing for exceptional performance (splicing 6 sec / splice loss 0.03 dB)

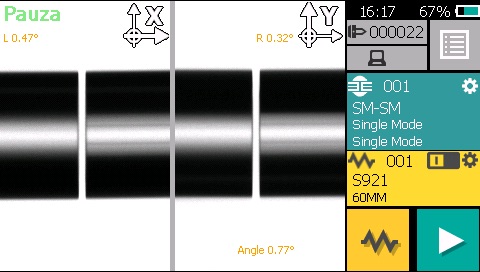

• Easy to interface 4.3-inch-wide touch screen for fast, intuitive operation
• Removable V-Groove enabling easy field maintenance and lens cleaning, for greater uptime
• Tough environments tolerance (IP52, IK07)

Overview

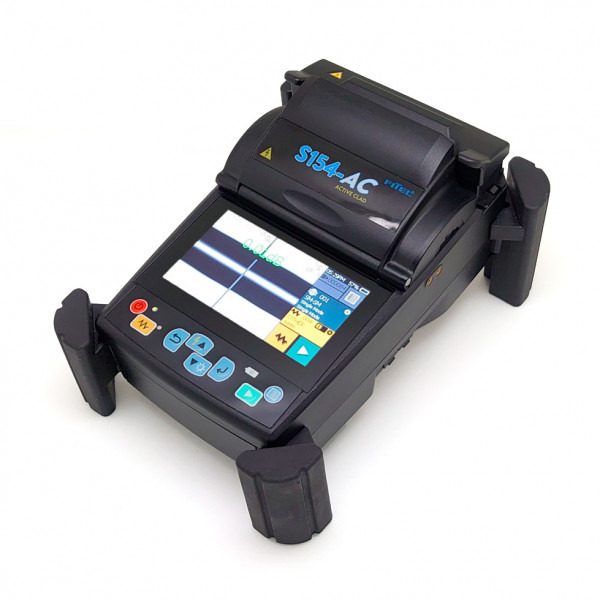

With a proven chassis design, the FITEL S154-AC Hand-Held Fusion Splicer provides a robust, fast, and reliable splicing solution for FTTx, Splice-On-Connectors (SOCs), data centres, and Metro applications. A broad range of new features that enhance communication, ease of use, portability, and field durability make the S154-AC Fusion Splicer one of the most powerful and user-friendly fusion splicing machines available today.

The FITEL S154-AC is an optical fiber splicer that features Active Clad Aligning on the fiber jacket. This splicing machine is suitable for various applications, including FTTx, LAN, metropolitan networks, data centers, and the assembly of spliced connectors (SOC - Splice On Connector). The design of the splicer's body and control is identical to the proven FITEL S179 model.

Reliable Splicing in Demanding Conditions

The S154-AC splicer provides fast and reliable splicing with low splice insertion loss (0.03 dB for identical SM filaments), even in the most demanding conditions. Its rugged body is resistant to dust, water, and wind, making it suitable for outdoor installations in inclement weather. The splicer is also designed to withstand falls and impacts from five different angles.

Enhanced Features for Efficient Operation

The FITEL S154-AC splicer offers several features that enhance its operational deployment. It provides fast splicing, baking, and long battery life, including fast charging. The work space is well-lit with four LEDs, facilitating work in poor light conditions. The splicer can be controlled either through a touch LCD or a standard keyboard. Additionally, it is ready for mounting on a tripod.

Ruggedness Specifications

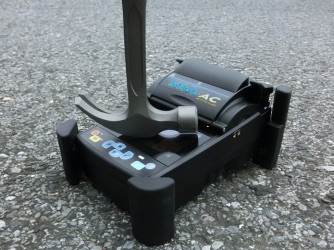

• Impact resistance according to the IK07 standard (direct impact of an object with an energy of 2J)
• Drop resistance from a height of 76 cm from five different angles
• Water resistance according to the IPX2 standard

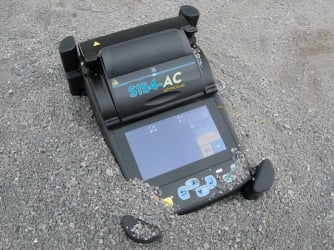

• Dust resistance according to the IP5X standard

Fast Splicing and Heating

The FITEL S154-AC Fusion Splicer is capable of completing a splice in just 6 seconds. Additionally, it only takes 15 seconds to heat the splice protector. During the heating process, the splicer utilizes a patented pressure mechanism to apply pressure on the splice protection. This mechanism allows for a more efficient heat transfer from the splice protection furnace, resulting in a significant reduction in baking time.

Quick and Easy Maintenance of the FITEL S154-AC Splicer

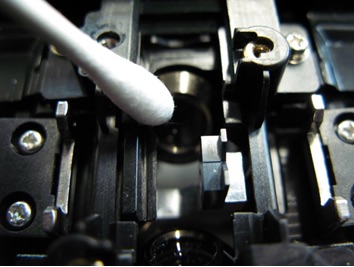

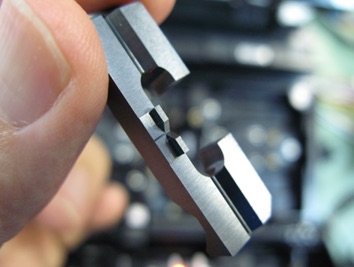

The FITEL S154-AC splicer offers a convenient and efficient maintenance process. One of its standout features is the removable V-groove, which greatly simplifies maintenance tasks. By removing the V-groove, users gain easy access to clean both the lenses and the V-groove itself. The best part is that no tools are required to remove the V-groove and electrodes.

In addition, the splicing machine is designed without the need for mirrors or prisms, further streamlining maintenance procedures. Furthermore, the software of the splicer can be easily updated by the end user, ensuring that it remains up-to-date with the latest advancements.

With the FITEL S154-AC splicer, maintenance is quick, easy, and hassle-free.

Specifications

• Active Clad Aligning Splicer
• Interchangeable Magnetic or Fixed Holders
• The Splicer and Pick is Ready for SOC (Soldered Connectors)
• Applicable Fibers: SM, MM, DSF, NZD, BIF/UBIF (Bend Resistant Fibers)
• Average Splice Insertion Loss:
  • SM: 0.03 dB
  • MM: 0.01 dB
  • DSF: 0.05 dB
  • NZD: 0.05 dB
• Battery Life: 200 Splices (Including Baking)
• Electrode Life: 5,000 Splices
• Splicing Time: 6s
• Protection Baking Time: 15s (Tyco SMOUV1120-0, Power Mode)
• Color Touch LCD: 4.3"
• Connectivity: USB, Wi-Fi (Optional)
• Weight: 1.85 kg (Including Battery)
• Dimensions: 179x246x131mm (Dimensions Including Rubber Bumpers)
