FITEL S124M12 Ribbon Fibre Fusion Splicer Kit

SKU #473111_K2 | MFR #S124M12-3-0
Rugged, compact and precise hand-held splicer ideal for NBN ribbon fibre. Featuring new 200 μm coating fiber ribbon splicing compatibility with swappable V-groove. 3 year warranty on the S124M12 splicer.
  • This fully featured kit includes:
  • FITEL S327 High Precision Cleaver
  • FITEL S218R Thermal Stripper
  • 2 x 12-Fiber Ribbon Holders and 250um Holders
  • Splicer Cleaning Kit, Angled Stand, Road Case and more...
AU$14,660.00 AU$16,126.00
Request current lead time
Part Number
473111_K2

Features

  • Up to 12-fiber ribbon splicing
  • High speed splicing of 15 seconds
  • Interchangeable V-groove system
  • New 200 μm coating fiber ribbon splicing with swappable V-groove
  • Easy operation with touch panel and GUI
  • 3 LED lights allow convenient loading of fibers in V-groove
  • Wi-Fi Connection allows wireless control and data management

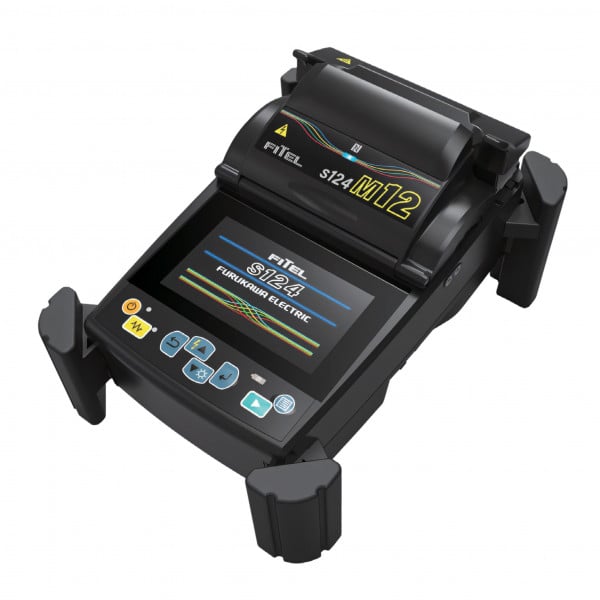

FITEL S124M12 Ribbon Fiber Fusion Splicer

With its low profile and new super rugged body, FITEL S124 Series Fusion Splicer offers speedy operation for FTTX, LAN, backbone or long-haul in lations. The lightweight, durable metal body frame and rubber protection corners provide robust protection, enabling use in challenging locations without compromising splicer performance.

The S124 Splicer is water resistant and dust resistant to IP5X.

A large battery capacity makes it possible to perform up to 170 cycles of splicing and heating for the S124M12 models.

Combining portability, power flexibility and field ruggedness, the S124 Splicer delivers fast and consistent splicing with outstanding mobility and extreme ease-of-use. It also offers a splice-on- connector (SOC) solution.



Under Tough Environments

The S124 passed manufacturer testing based on criteria below:

  • Drop resistant – 76 cm drops from 5 different angles
  • Impact protection - IK07 grade impact proof
  • Water resistant – IPX2 rating drip proof
  • Dust resistant – IP5X rating dust proof



Specifications

Applicable Fibers

SM (ITU-T G.652 / G.657A1 / G.657A2)

MM (ITU-T G.651)

DS (ITU-T G.653)

NZD (ITU-T G.655)

BIF (ITU-T G.657.A1/A2)

Cladding Diameter

125 µm

Coating Diameter

250 to 900 µm for single fiber

280 to 400 µm for ribbon (thickness)

200 µm for rollable ribbon fiber (optional)

Fibers Cleave Length

10 mm (S124M4, S124M8, S124M12)

Average Splice Loss

SM: 0.05 dB, MM: 0.03 dB, DSF: 0.08 dB, NZDSF: 0.08 dB, BIF: 0.05dB

Splice Time

Single fiber: 13 seconds; Ribbon fiber: 15 seconds

Heat Time

Single fiber: 13 seconds (S921: power mode)

Ribbon fiber: 28 seconds (S927R: power mode)

Splice Programs

Max. 300

Heat Programs

Max. 100

Automatic Heating Start

Available

Applicable Sleeves

40/60 mm

Fiber Holding

Tight holder (Loose tube applicable) or Fiber Holder System (S213C)

Fiber holder system (S124M4, S124M8, S124M12)

Tension Test

1.96 N

Discharge compensation function

Automatic correction according to temperature and atmospheric pressure

Fiber Image Magnification

20X, 28X (in zooming), 56X (in zooming)

Two-way observation from X and Y axes

Splice Memory

Max. 1500 splices (S124C, S124M4); Max. 1000 splices (S124M8, S124M12)

Image Capture Capacity

Last 100 images to be automatically captured + Up to 24 images to be stored permanently



Dimension

139W x 209D x 114H mm not including shock absorber

179W x 246D x 131H mm including shock absorber

Weight

1.8kg (with battery)

Monitor

4.3 inch wide LCD monitor with touch screen

Data Output

USB ver.2 mini B x 1 port, Standard A x 1 port

Displaying Language

20 languages (e.g. English, Spanish, Japanese, Chinese)

Battery Capacity

170 splice and heating cycles

Operating condition

Altitude: 0-2,000m Wind protection: 15m/s Operating temperature : -10 to +50 °C (non-condensing)

Operating Temperature

-10 to +50 °C (without excessive humidity)

Storage Temperature

-40 to +60 °C (without excessive humidity)

Power Source

AC: 100-240V (50/60Hz) DC: 11-24V

*1 Corresponding to optical fiber in compliance with ITU-T recommendation.
*2 This numerical number is the one when measured for the purpose to show the fusion splice characteristics in the testing method of IEC 61073-1, it is not the one to guarantee the splicing loss.
*3 Number of times that the fusion splicing of the fiber and the heat reinforcement can be performed continuously at a rate of once a 90seconds at the room temperature (20°C) condition when using a new 100% charged battery. The number of times you can use depends on the state of the battery and usage.



More Information
Manufacturer FITEL (Furukawa Electric)
Manufacturer Part Number S124M12-3-0
Product Series FITEL S124 Series Fusion Splicer
Product Type Fusion Splicers
Fiber Compatibility Singlemode 9/125μm (OS1, OS2) (ITU-T G.652), Multimode 50/125μm (OM2, OM3, OM4) (ITU-T G.651.1), Multimode 62.5/125μm (OM1) (IEC60793-2-10), 12 Fiber Flat Ribbon Cable (ITU-T G.652D), Dispersion-Shifted Fiber (DSF) (ITU-T G.653), Non Zero-Dispersion-Shifted Fiber (NZDSF) (ITU-T G.655), Ultra Bend Insensitive Fiber (BIF/UBIF) (ITU-T G.657)
Size / Operation Compact, Portable, Rugged
Case Included Hard case
Protection Level Drop Resistance (passed 76 cm drops from 5 different angles), IP5X Dust Resistance, IPX2 Water Resistance
Device Connectivity via USB
Splicer: Alignment Type Passive, Clad
Splicer: Fiber Count Single to 12-Ribbon Fibers
Splicer: Splice Time SM: 13 sec, SM: 15 sec
Splicer: Heater time 12-fiber ribbon: 28 sec
Fiber Cladding Diameter 125μm
Fiber: Cleave Length Ribbon Fibre: Fixed length 10mm
Industry Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers
Applications NBN (National Broadband Network), Tunable heterodyne source, Installers and Telco Contractors, Carriers, Service and Content Providers
Recommended Service Interval 1 Year
Equipment Service/Calibration Notes 1st service free - valid at AusOptic for 12 months after purchase
Standard Package Contains
Warranty 3 Year Warranty on S124 Splicer / 1 Year Warranty on S327 Cleaver & S218R Thermal Stripper
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:FITEL S124M12 Ribbon Fibre Fusion Splicer Kit
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
In This Series
  1. FITEL S712A-12e 12-Fiber (250μm) Rollable Ribbon Holder
    FITEL S712A-12e 12-Fiber (250μm) Rollable Ribbon Holder
    Request Quote

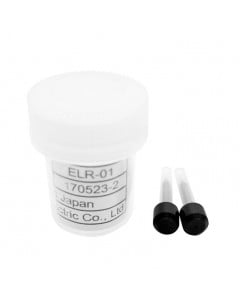

  2. FITEL ELR-01 Electrodes (Set of 2), suits S179A, NJ001, S124M12 Fusion Splicers
