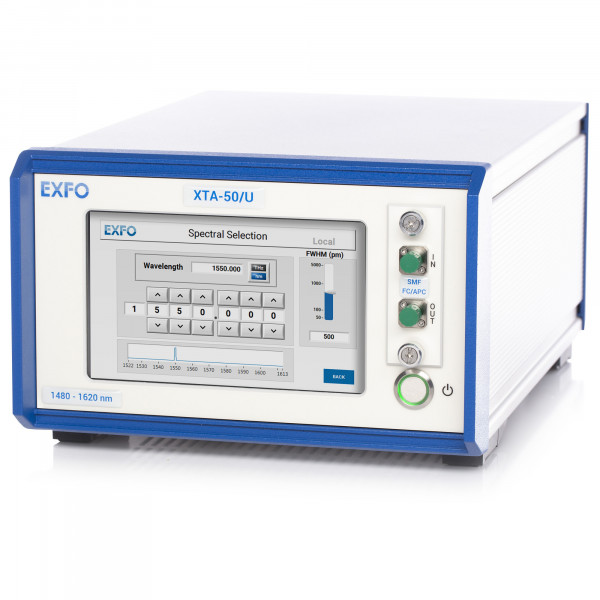

EXFO XTA-50 Tuneable Filter with Adjustable Bandwidth

Features

• Adjustable bandwidth flat-top filter
• Ultra-sharp filter edges
• High Isolation
• 200 nm wavelength range
• High accuracy and repeatability
• Narrowest filter – Highest selectivity

Applications

• Channel selection for bit error rate testing
• Analysis of sub-band of complex modulation formats
• Channel spacing reduction
• WDM-PON, DWDM systems testing
• Amplification analysis
• Cascaded ROADM emulation
• OFDM
• Active component and module testing
• Transponders testing

Description

The XTA-50 tunable filter is the reference tool for channel selection or even sub-band extraction thanks to its adjustable bandwidth in combination with very steep edges:

• Standard version: 50 pm (6.25 GHz) to 950 pm (120 GHz) with 500 dB/nm
• Ultrafine version: 32 pm (4 GHz) to 650 pm (80 GHz) with 800 dB/nm
• Wide version: 50 pm (6.25 GHz) to 5000 pm (625 GHz) with 500 dB/nm

The extremely sharp edges ensure a clean cut between the signal and the adjacent channels or noise, while the flat-top square shape ensures data integrity. The filters offer the highest selectivity available on the market and allow for many new fiber-optic transmission experiments.

For efficient operation, it has a user-friendly touch screen interface with four menus:

• Wavelength and bandwidth selection
• Predefined ITU grids: 25, 50, 100 and 200 GHz
• Customer defined grid
• A sequence for systematic bit-error rate testing
