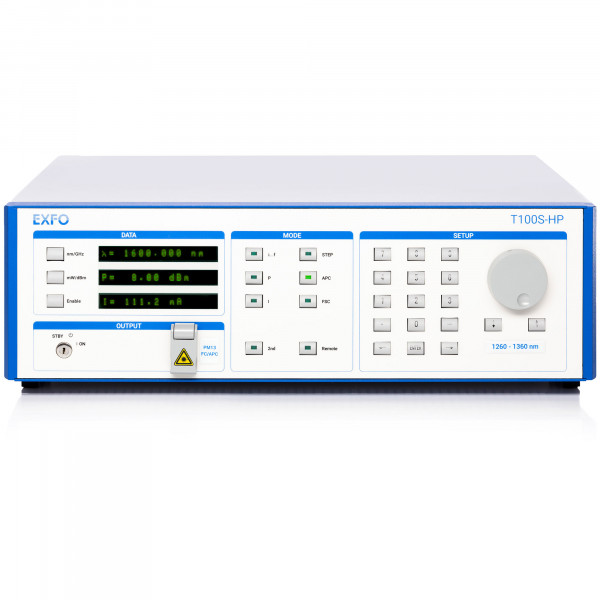

EXFO T100S-HP High-Power Continuously Tuneable Laser

Features

• Power ≥ +10 dBm for Essential models
• Power ≥ +8 dBm for Extended Range models
• Dynamic Range higher than 90 dB
• Continuously tunable over up to 200 nm
• Wavelength accuracy < ± 20 pm
• Sweeping & Stepping operations

Applications

• Fiber optic transmission testing
• Passive optical component testing
• Optical amplifier testing
• Thin film growth monitoring
• Optical alignment
• Fiber optic sensors
• Spectroscopy
• Interferometry
• Photonic material characterisation

Description

The complete portfolio of the T100S-HP features 6 continuously tunable lasers to cover the entire wavelength range from 1240 to 1680 nm:

• /O+ model: 1240-1380 nm
• /O model: 1260-1360 nm
• /ES model: 1350-1510 nm
• /SCL model: 1440-1640 nm
• /CL model: 1500-1630 nm
• /CLU model: 1500-1680 nm

Drawing on the success of the trend-setting laser series TUNICS, the T100S-HP provides a combination of high power with low spontaneous emission, ideal for both swept and stepped applications:

The /O and /CL lasers have 10 dBm minimum output power and are dedicated to the main telecom applications.

The /O+, /ES, /SCL and /CLU lasers have 8 dBm minimum output power and the largest wavelength ranges available on the market, making it possible to cover the full telecom wavelength band from 1240 to 1680 nm at 8 dBm with just 3 lasers. This is done by combining the /O+, /ES and /CLU lasers.
