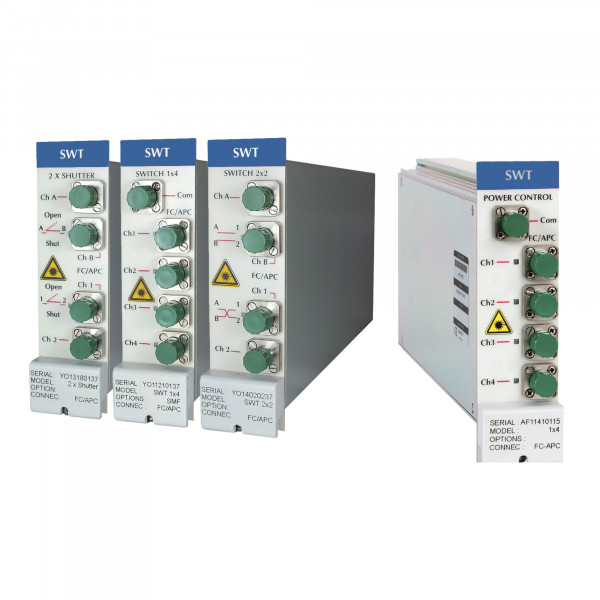

EXFO OSICS SWT and SWT APC Optical Switches and Shutters

SKU #OSICS-SWT
The ideal optical switches and shutters for automating test setups in lab and manufacturing environments.
Request Quote
Request current lead time
Part Number
OSICS-SWT

Features

  • Low insertion- and polarisation-dependent loss
  • High repeatability
  • High optical isolation
  • Low back reflection
  • Broad spectral range
  • Switch time lower than 30 ms
  • Single slot module

Description

OSICS SWT and SWT APC are full suites of fiber optic switch and shutter modules based on optical prism technology. These modules are ideal for automating test setups and reducing measurement uncertainties due to optical connections in a laboratory or manufacturing environment.

Bi-directional performance

All OSICS SWT modules are bi-directional—they can operate in a common or reverse configuration, allowing you to direct a laser signal from the common input to either output channels or steer one of the input channels through the common output channel.

Sequential switching

This feature lets you activate each channel successively according to a preconfigured schedule (not available in the SWT APC model).

Power monitoring

The SWT APC switch includes power monitoring designed to drive the OSICS platform in a Full-Band Laser setup. When used in combination with one or more OSICS T100 modules, the Automatic Power Control automatically adjusts the output power to compensate for any loss caused by the link laser switch (SWT APC model only) and preserve accuracy.

More Information
Manufacturer EXFO
Product Series EXFO OSICS Mainframe Platform and Modular Components
Product Type Optical Testing Components
Size / Operation Benchtop
Connector Interface FC APC
Industry Optical Equipment Manufacturing (OEM), Photonics, Research
Applications Advanced Testing, Inspection and Measurement Applications, Designing WDM Add/Drop, Narrow and Broadband and Waveguide Filters, Planning and Simulating Optical Network Designs (OTDM, SONET/ SDH rings, CWDM, DWDM, PON, Cable, OCDMA)
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:EXFO OSICS SWT and SWT APC Optical Switches and Shutters
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Brochures and Specifications
In This Series

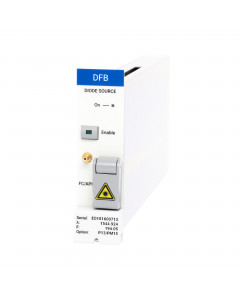

  1. EXFO OSICS DFB DWDM Distributed Feedback Laser Modules
    EXFO OSICS DFB DWDM Distributed Feedback Laser Modules
    Request Quote

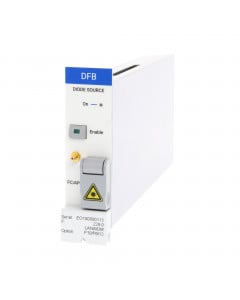

  2. EXFO OSICS DFB LANWDM DFB Lasers
    EXFO OSICS DFB LANWDM DFB Lasers
    Request Quote
  3. EXFO OSICS SLD Broadband Light Source
    EXFO OSICS SLD Broadband Light Source
    Request Quote
  4. EXFO OSICS DFB CWDM High-Power Laser Diode Modules
    EXFO OSICS DFB CWDM High-Power Laser Diode Modules
    Request Quote
  5. EXFO OSICS ATN High-Power Variable Optical Attenuator
    EXFO OSICS ATN High-Power Variable Optical Attenuator
    Request Quote
Related Products

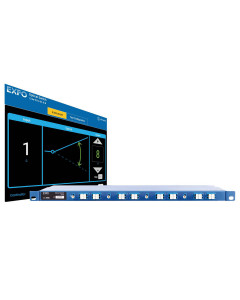

  1. EXFO LTBe-9110 MEMS Optical Switch
