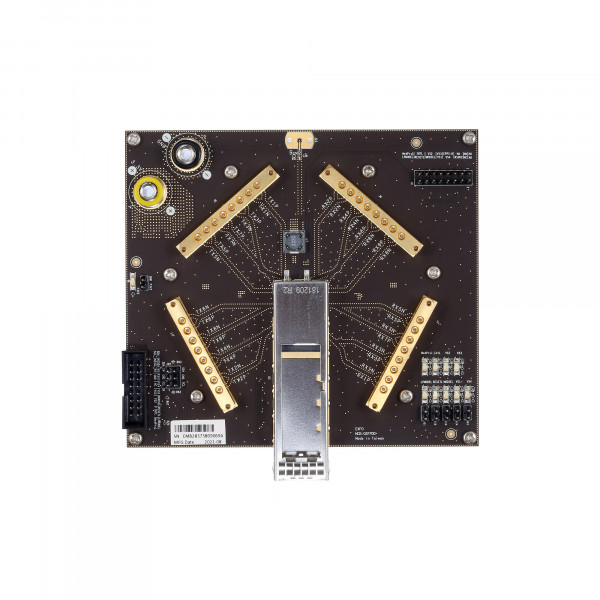

EXFO MCB Module Compliance Board

SKU #EXFO-MCB
The module compliance board (MCB) enables the serial communication between the bit error rate (BER) tester and the optical transceiver.
Request Quote
Request current lead time
Part Number
EXFO-MCB

Features

  • MSA supported: QSFP-DD, OSFP, QSFP28, SFP28, SFP-DD and DSFP
  • Pin for standard MSA
  • Supports 90-degree 2.92 mm RF connectors or 1x8 multi-coaxial O-SMPM RF connectors
  • DDMI connection (I2C)
  • Switch control (VCCT/ VCCR/VCC1/LPMode/ ResetL/ MODSEIL)
  • LED monitor (VCCT/VCCR/VCC1/ModPrsL/InitMod/ResetL/ MODSEIL/IntL)
  • 3 types VCC inputs (header pin/power jack/banana)

Applications

  • Test and validation of transceivers
More Information
Manufacturer EXFO
Product Series EXFO BA-4000 Bit Analysers
Product Type OTDR Modules
Industry Optical Equipment Manufacturing (OEM)
Applications OEM (Optical Equipment Manufacturing), Planning and Simulating Optical Network Designs (OTDM, SONET/ SDH rings, CWDM, DWDM, PON, Cable, OCDMA)
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
