EXFO MaxTester 735D - PON/metro FTTx/MDU OTDR

Key Features

• Dynamic range up to 42 dB for up to 144 km point-to-point (P2P)



• Support high port count PON splitters (up to 1x128)



• Live fiber testing



• Short dead zones: event dead zone (EDZ) = 0.5 m; attenuation dead zone (ADZ) = 2.0 m; PON dead zone = 25 m



• Single port for in-service troubleshooting with in-line 1490/1550 nm PON power meter (optional)



• iOLM-ready: one-touch multiple acquisitions, with visually clear go/no-go results



• Industry-leading onboard PDF reporting and post‑processing

Applications

• FTTx/MDU test challenges within PON networks



• Metro/core network testing (P2P)



• Manufacturing automation

Description

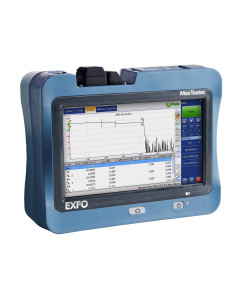

The handheld OTDR with proven performance

The MaxTester 700D Series builds upon the proven tablet-inspired, lightweight, and rugged OTDR MaxTester platform. The familiar 7-inch, outdoor-enhanced touchscreen continues to deliver an unparalleled user experience with its intuitive Windows-like GUI, ensuring a rapid learning curve. The OTDR 2 environment offers icon-based functions, instant boot-up, automatic macrobend finders, and improved auto and real-time modes.

The MaxTester 700D Series is a line of genuine high-performance OTDRs from the world’s leading manufacturer. It delivers EXFO’s tried and true OTDR quality and accuracy, along with the best optical performance for reliable right-first-time results every time.

The remarkable 12-hour battery life ensures uninterrupted use for technicians, and the plug-and-play hardware options, such as the VFL, power meter, and USB tools, simplify every technician’s tasks.

Most importantly, the MaxTester 700D Series comes with the intelligent Optical Link Mapper (iOLM), an intelligent OTDR-based application. This advanced software transforms even the most complex trace analysis into a simple, one-touch task.

Entry-Level Solution for All Testing Needs

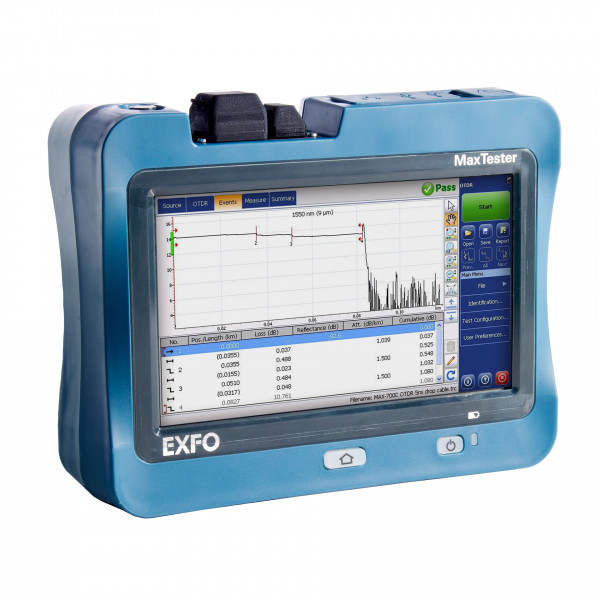

The MaxTester 735D (MAX-735D) is a PON/metro OTDR optimised for metro/core and FTTx/MDU rollouts and troubleshooting.

• Accurately characterise high-port-count PON splitters and metro links with dynamic range up to 42 dB for up to 144 km point-to-point (P2P).
• Identify faults closer to splitters with short event and attenuation dead zones. 
• Simplify in-service troubleshooting with a single port, an optional in-line 1490/1550 nm PON power meter, and a user-friendly graphical interface.
