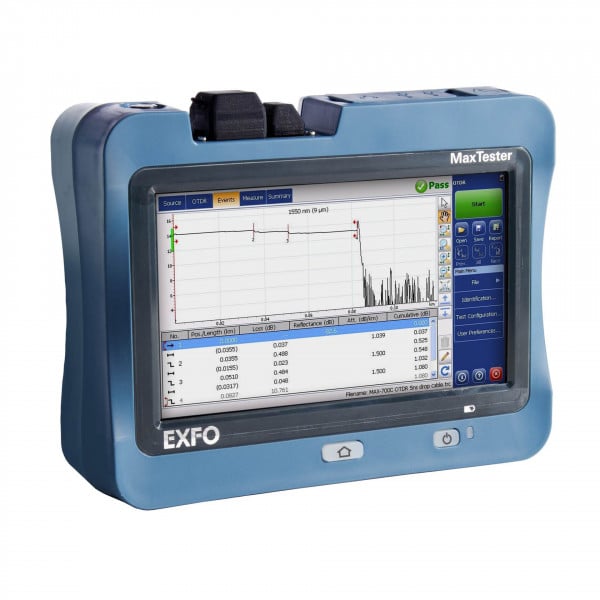

EXFO MaxTester 720D LAN/WAN Access OTDR

Key Features

• 7-inch, outdoor-enhanced touchscreen–the biggest in the handheld industry
• 12-hour battery life
• Dynamic range of up to 36 dB in singlemode (SM) and 29 dB in multimode (MM) Event dead zone (EDZ) / Attenuation dead zone (ADZ): 0.7/2.5 m in SM; 0.5/2 m in MM, PON dead zone 35 m
• Live and dark fiber characterization, troubleshooting and activation through the same OTDR port FTTx in-service OTDR testing at 1650 nm with optional in-line GPON/XGS-PON power meter
• OTDR, light source and power checker through single port to optimize the fiber handling process
• Swap-Out connector, replaceable whenever necessary for optimal performance over time without undue service cost and downtime
• iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format
• 3-year warranty
• SM and quad SM/MM versions available

Applications

• Access network construction and troubleshooting
• FTTx/PON testing though splitters (up to 1x32)
• FTTx service activation: GPON, EPON, XGS-PON, 10GE EPON
• Central office link certification
• Data center and private networks (Tier-2 certification)
• Tier-2 certification of private/enterprise
• LAN/WAN characterisation
• Fronthaul/backhaul (FTTA, FTTT, RRH, DAS and small cells)

Description

Entry-level solution designed for all your testing needs

The MaxTester 720D (MAX-720D) features a dynamic range of 36 dB in singlemode and 29 dB in multimode, as well as industry‑leading dead zones. This ensures efficient testing of closely spaced events such as patchcords in data centers, or patch panels in central offices (COs). The MaxTester 720D is optimized for point-to-point (P2P) testing of any access network, and is suitable for testing through 1×32 splitters.

The 1650-nm, out-of-band, live testing capabilities enable efficient troubleshooting of active networks without impacting the signal of other clients.

The handheld OTDR... with proven performance

The MaxTester 700D Series builds on the proven tablet-inspired, lightweight and rugged OTDR MaxTester platform. The familiar 7-inch, outdoor-enhanced touchscreen continues to deliver an unprecedented user experience with its intuitive Windows-like GUI ensures a fast learning curve. The OTDR 2 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real‑time modes.

The MaxTester 700D Series is a line of genuine high-performance OTDRs from the world’s leading manufacturer. It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for right-first-time results, every time.

The amazing 12-hour battery life will never let a technician down, and the plug-and-play hardware options, like the VFL, power meter and USB tools, make every technician’s job easier.

Most importantly, the MaxTester 700D Series comes with the intelligent Optical Link Mapper (iOLM), an intelligent OTDR‑based application. This advanced software turns even the most complex trace analysis into a simple, one-touch task.

With new Swap-Out connector

The MaxTester 700D OTDR Series comes with a Swap-Out connector which can easily be changed, as and when needed, without having to send the test unit to a service center. This ensures optimal performance over time without undue maintenance costs and downtime. The OTDR's optical connector health can be checked with an onboard diagnostic tool to replace the connector only when necessary.

Did you know?

Was your OTDR connector damaged when connecting a UPC cable to the APC port on your device? This no longer needs to cause downtime by sending the device back for repair. Thanks to EXFO’s Swap-Out connectors, you can now check connector health instantly and replace your connector within seconds if needed–directly from the field!
