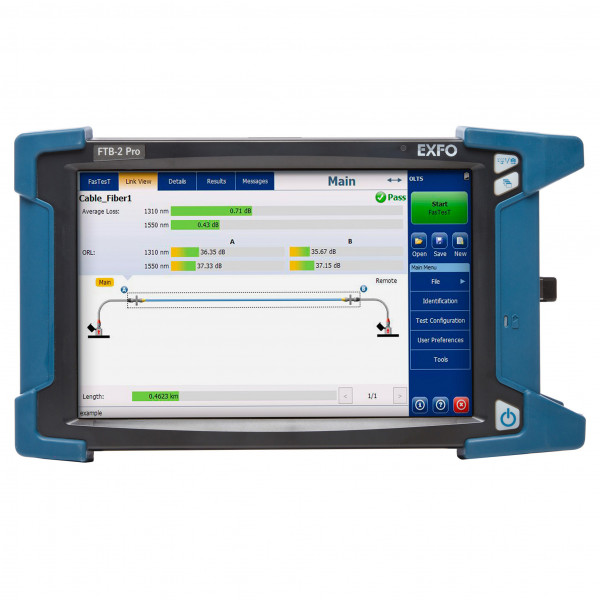

EXFO FTBx-945 Telco OLTS Optical Loss Test Set

SKU #FTBx-945
Multifunction optical loss test set (OLTS) measuring insertion loss (IL), optical return loss (ORL) and fiber length at two wavelengths in 5 seconds via fully automated bidirectional FasTesT™ analysis.
Request Quote
Request current lead time
Part Number
FTBx-945

Features

  • Perform 100% automated bidirectional tests at two wavelengths in under 5 seconds with FasTesT™
  • 100% automated fiber inspection: one-step process with pass/fail analysis at both ends
  • On-board assistant and diagnosis to reduce reference errors and negative loss
  • Improved short fiber measurement
  • Compatible with FTB-2 and FTB-2 PRO platforms
  • Best-in-class singlemode distance range of 200 km

Applications

  • FTTx construction
  • Telecommunications and outside plant networks testing
  • Data centres
  • Enterprise structured cabling

Description

Telco fully automated OLTS module

The FTBx-940/945 Telco OLTS can measure insertion loss (IL), optical return loss (ORL) and fiber length at two wavelengths under 5 seconds via fully automated bidirectional FasTesT™ analysis. FTTx certification and outside plant network testing just became a lot faster.

OLTS module for Telco, FTTx and outside plant testing

Ever since its introduction in 1996, the patented FasTesT™ technology revolutionized the industry by fully automating the test sequence, thereby saving countless hours of testing and troubleshooting in the field. Proven in thousands of diverse network deployments across the globe, FasTesT™ truly generates CAPEX/OPEX savings.

More Information
Manufacturer EXFO
Product Series EXFO 900-Series FTB Modules
Product Type Modular Test Platforms
Calibrated Wavelengths 850 to 1650 nm
Size / Operation Benchtop, Handheld, Portable, Rack Mount
Case Included Available Seperately
Detector Type InGaAs suited for single-mode networks (Indium Gallium Arsenide)
Industry Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence
Applications Access Construction (Underground, Aerial), Drop Construction (Aerial, Underground), Telecommunications (Back Bone, Metro & Long-haul), OSP (Out Side Plant), NBN (National Broadband Network), PON / FTTx (including FTTP (GPON), FTTH, and FTTB), Mixed Single Mode & Multimode Testing (SM & MM), 1310/1550/1625 nm Wavelengths for NBN, Optical Multimeters, Fiber Analysers and Fiber Cable Certifier for Certifying Ethernet LAN systems, GPON (Gigabit Passive Optical Network), Insertion Loss (IL) and Return Loss (RL) Measurements
Networking Protocol 100G Ethernet LAN, 10G Ethernet
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
