EXFO FTBx-735D Metro/PON FTTx/MDU OTDR Module

Features

• Dynamic range up to 42 dB for up to 144 km point-to-point (P2P)
• Support high port count PON splitters (up to 1x128)
• Live fiber testing
• Short dead zones: event dead zone (EDZ) = 0.5 m; attenuation dead zone (ADZ) = 2.0 m; PON dead zone = 25 m
• Single port for in-service troubleshooting with in-line 1490/1550 nm PON power meter (optional)

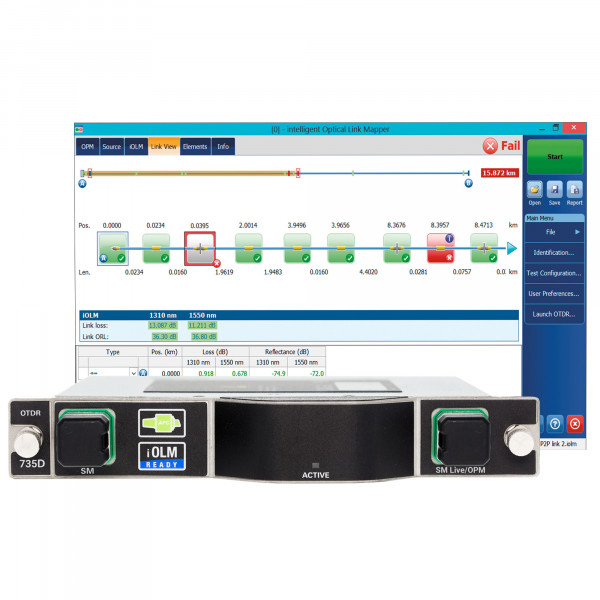

• iOLM-ready: one-touch multiple acquisitions, with visually clear go/no-go results

Applications

• FTTx/MDU test challenges within PON networks

• Metro/core network testing (P2P)

• Manufacturing automation

Description

The FTBx-735D is the OTDR of choice for field technicians who need a high-resolution tool for metro network testing and splitter characterization in PON FTTx/MDU applications. It is optimized for the rollout and troubleshooting of metro/core and FTTx networks.

The FTBx-735D OTDR is designed to support high port-count splitters (up to 1x128) and point-to-point (P2P) testing up to 144 km, thanks to its dynamic range of up to 42 dB. Its advanced features, including live fiber testing and short dead zones, make it ideal for precise fault location.

The FTBx-735D advantage

• Accurately characterize high port-count PON splitters and metro links with dynamic range up to 42 dB for up to 144 km point-to-point (P2P).
• Identify faults closer to splitters with short event and attenuation dead zones.
• Simplify in-service troubleshooting with a single port, optional in-line 1490/1550 nm PON power meter, and user-friendly graphical interface.

Connect with EXFO Exchange

Cloud-hosted solution for sharing test results and ensuring compliance, paired with EXFO’s leading test instruments, EXFO Exchange drives an entire ecosystem seamlessly integrating with existing operation processes. Key benefits:

• Automate test results management
• Enhance compliance and efficiency
• Foster collaboration and visibility
• Access comprehensive reporting
• Unlock insights to focus on what matters
