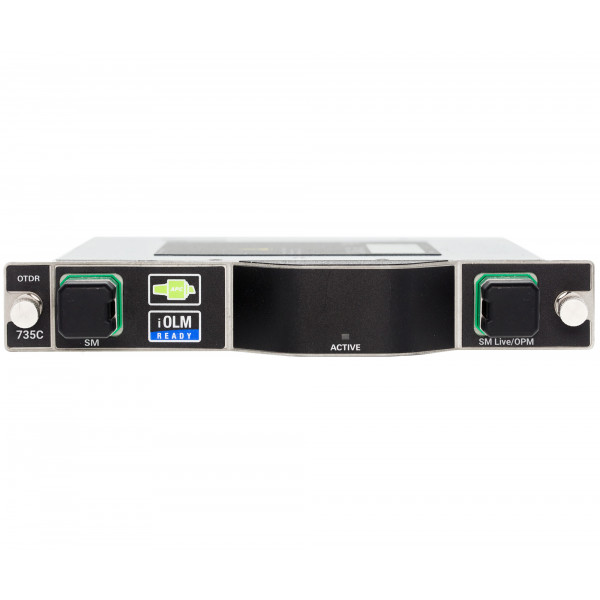

EXFO FTBx-735C Metro/PON FTTx/MDU OTDR Module

SKU #FTBx-735C
High-resolution OTDR designed for metro networks testing and splitter characterisation in PON FTTx applications. Optimised for Metro/Core and FTTx/MDU fiber deployments and troubleshooting.
Request Quote
Request current lead time
Part Number
FTBx-735C

Features

  • Dynamic range of up to 42 dB
  • Event dead zone of 0.5 m and attenuation dead zone of 2.5 m
  • Test through high-port-count splitters (up to 1x128)
  • Singlemode port for in-service troubleshooting with in-line 1490/1550 nm power meter
  • EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database
  • iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format

Applications

  • FTTx/MDU test challenges within PON networks
  • Metro/core network testing (P2P)

Description

The FTBx-735C has been designed to test FTTH/PON networks and longer links in the metro range. This OTDR has 42 dB of dynamic range to test up to 150 km of optical fiber. The PON-optimized performances of the FTBx-735C enable it to fully characterize links up to a 1:128 FTTH/PON splitter ratio.

With its high dynamic range, the FTBx-735C empowers technicians to test optical fibers with greater speed and accuracy.

The FTBx-735C advantage

  • The industry’s highest resolution for PON testing and the shortest PON dead zone to detect more problems closer to the splitter.
  • High resolution for maximum fiber characterization on long links up to 150 km. Ideal to support bidirectional testing.
More Information
Manufacturer EXFO
Product Series EXFO 700-Series FTB Modules
Product Type OTDR Modules
Calibrated Wavelengths 1310 / 1550 / 1625 nm
Dynamic Range 42 dB
Size / Operation Benchtop, Handheld, Portable, Rack Mount
Case Included Available Seperately
Industry Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities
Applications Access Construction (Underground, Aerial), Drop Construction (Aerial, Underground), Telecommunications (Back Bone, Metro & Long-haul), Long-haul installation, OSP (Out Side Plant), NBN (National Broadband Network), PON / FTTx (including FTTP (GPON), FTTH, and FTTB), Long-Range Fiber Testing (High-Power Systems), 1310/1550/1625 nm Wavelengths for NBN, OTDR Testing & Fiber Characterisation, Automated Manufacturing
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
