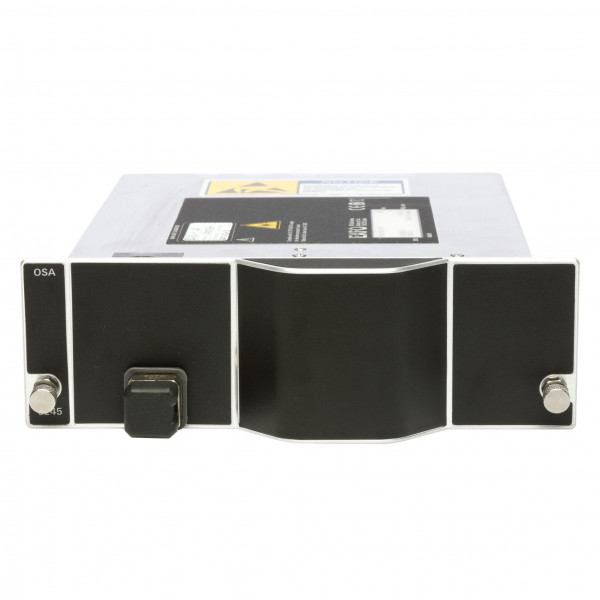

EXFO FTBx-5245/5255 Optical Spectrum Analysers for the Field

SKU #FTBx-5245/5255
Built for maximum field efficiency, the FTBx-5245/5255 provides improved reliability, accuracy and speed of test. It can be housed in the compact and portable FTB-2, FTB-2 Pro and FTB-4 Pro platforms, or in the rack-mountable LTB-8 platform.
Request Quote
Request current lead time
Part Number
FTBx-5245/5255

Features

  • Robust In-service Pol-Mux OSNR for 100G/200G/400G (FTBx-5255)
  • Industry’s only all-in-one OSA covering all applications: high speed (100G+ In-service OSNR, etc.), CWDM, O and L-band testing, etc.
  • Portable solution for spectral characterisation of DWDM/CWDM networks
  • Industry’s smallest OSA/transport solution in a single platform (FTB-4 Pro)
  • Pol-Mux OSNR option compliant with IEC 61282-12 standard
  • Large 10-inch display screen on the FTB-2 and FTB-4 Pro platforms

Description

All-in-one OSA covering all spectral testing applications

The new FTBx-5255 is the only OSA on the market to address all applications in a single module:

  • High-speed DWDM, with OSNR measurements from 10G to 400G, including In-service Pol-Mux OSNR
  • CWDM spectral analysis
  • Spectral analysis of pluggable transceivers (CFP, XFP, etc.) on the O-band, 1300 nm region, as well as L-band transceivers
New in-service Pol-Mux OSNR

With the advent of EXFO’s In-service Pol-Mux OSNR method (INSPM), the wait for a non-intrusive Pol-Mux OSNR method that works on live networks is now over! This robust method features a high dynamic range and provides very accurate Pol-Mux OSNR values for 40G/100G/200G/400G* signals. It is the preferred method for reducing coherent network outages, pinpointing defective amplifiers and decreasing troubleshooting time.

Analyze any WDM network

Regardless your network specificities and testing requirements, the FTBx-5245/5255 covers your DWDM applications and all channel spacings—from 25 GHz DWDM to CWDM—which is what we like to refer to as “no-compromise performance”.

Powerful platforms, powerful combos

Housed in the compact and portable FTB-2, FTB-2 Pro and FTB-4 Pro platforms, or in the rack-mountable LTB-8 platform, the FTBx-5245/5255 OSA test modules provide all the tools needed for maximum field efficiency from the market’s most compact high-speed deployment and multiservice testing solutions. When equipped with the commissioning assistant option or the In-service Pol-Mux option, this versatile OSA can be combined with the FTBx-88200NGE Power Blazer module to become the industry’s smallest OSA/transport solution in a single platform for commissioning 40G/400G circuits.

More Information
Manufacturer EXFO
Product Series EXFO 5000-Series FTB Modules
Product Type OTDR Modules
Calibrated Wavelengths 1250 to 1650 nm
Dynamic Range –80 to 18 dBm
Size / Operation Benchtop, Handheld, Portable, Rack Mount
Case Included Available Seperately
Industry Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers, Government and Defence Communications, Aerospace and Defence, Fiber Optic Lasers, Optical Equipment Manufacturing (OEM), Photonics, Research, Mining, Off-shore and Remote, Utilities
Applications Wideband Transmission Network, CWDM / DWDM, Multiplexed Transmission Testing, Metro Ethernet, Metro/core network testing (P2P), xWDM Network Optical Spectrum Analysis, CWDM (Coarse Wavelength Division Multiplexing), DWDM (Dense Wavelength Division Multiplexing), Sensing and spectroscopy, Advanced Testing, Inspection and Measurement Applications, Optical Spectrum Analysis (OSA), Spectral Response, External and Internal Quantum Efficiency, Planning and Simulating Optical Network Designs (OTDM, SONET/ SDH rings, CWDM, DWDM, PON, Cable, OCDMA)
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
