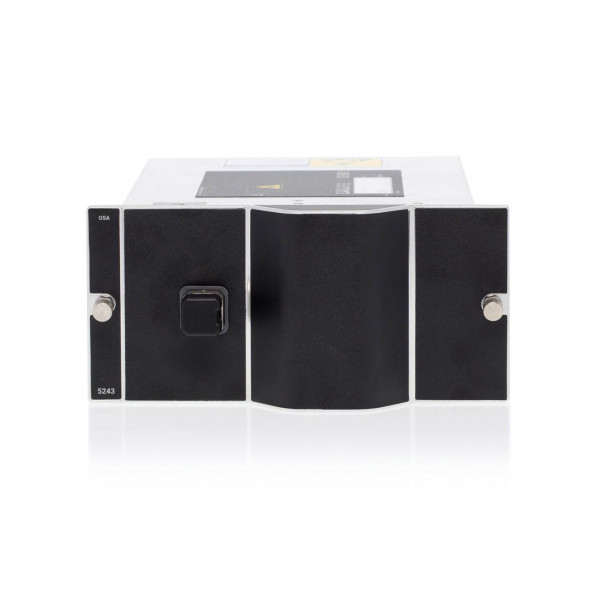

EXFO FTBx-5243-HWA High Wavelength Accuracy Optical Spectrum Analyser

SKU #FTBx-5243-HWA
Optical spectrum analyser (OSA) for DWDM, CWDM, and DWDM over CWDM networks.
Request Quote
Request current lead time
Part Number
FTBx-5243-HWA

Features

  • Best-in-class wavelength accuracy
  • Ideal for transceiver testing, in manufacturing and DWDM analysis
  • Replaces a wavelength meter and OSA combo by a single OSA with enhanced performance
  • Excellent wavelength accuracy in a small form factor
  • Perfect for system vendors and transceiver manufacturers
  • Slotted in the LTB-8 or FTB-4 Pro platforms
  • Lifetime automatic wavelength adjustment using gas cell reference
  • Remote control via SCPI commands

Description

Perfect for production floor and lab environments

Designed to fulfill the needs of manufacturing and lab users by offering best-in-class performance in a compact form factor, available in the rackmount LTB-8 chassis or the portable FTB-4 Pro platform.

Replaces the wavemeter/osa combo, reducing cost and testing time

In transceiver manufacturing, a series of tests is typically performed to assess transceiver quality: central wavelength, side mode suppression ratio, power, and so forth. Those tests are often carried out with different types of instruments to get very accurate measurements of these various parameters. For instance, power and side mode suppression ratio will be measured with an OSA while the central wavelength will usually require a wavelength meter.

This is where the FTBx-5243-HWA is a game changer. Delivering a best-in-class wavelength uncertainty of ±10 pm in the C-band, it replaces both a regular OSA and an entry-level wavelength meter. Being able to perform all the required spectral tests using a single device entails significant savings in capital expenditures and faster testing time.

Best-in-class wavelength accuracy among diffraction grating-based osas

The FTBx-5243-HWA has a typical wavelength uncertainty of ±4 pm* and a guaranteed wavelength uncertainty of ±10 pm in the C-band. An outstanding level of accuracy in a small form factor.

* Measurements traceable to the National Research Council of Canada.

Full remote control

The FTBx-5243-HWA features an extensive library of SCPI commands for remote control, which can be accessed via Ethernet or USB ports.

More Information
Manufacturer EXFO
Product Series EXFO 5000-Series FTB Modules
Product Type OTDR Modules
Fiber Compatibility Singlemode 9/125μm (OS1, OS2) (ITU-T G.652)
Calibrated Wavelengths 1250 to 1650 nm
Dynamic Range –80 to 18 dBm
Size / Operation Benchtop, Handheld, Portable, Rack Mount
Case Included Available Seperately
Industry Telecommunications, Carriers, Service and Content Providers, Government and Defence Communications, Aerospace and Defence, Fiber Optic Lasers, Optical Equipment Manufacturing (OEM), Photonics, Research, Mining, Off-shore and Remote, Utilities
Applications Wideband Transmission Network, Sensing and spectroscopy, Advanced Testing, Inspection and Measurement Applications, Optical Spectrum Analysis (OSA), Spectral Response, External and Internal Quantum Efficiency
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
