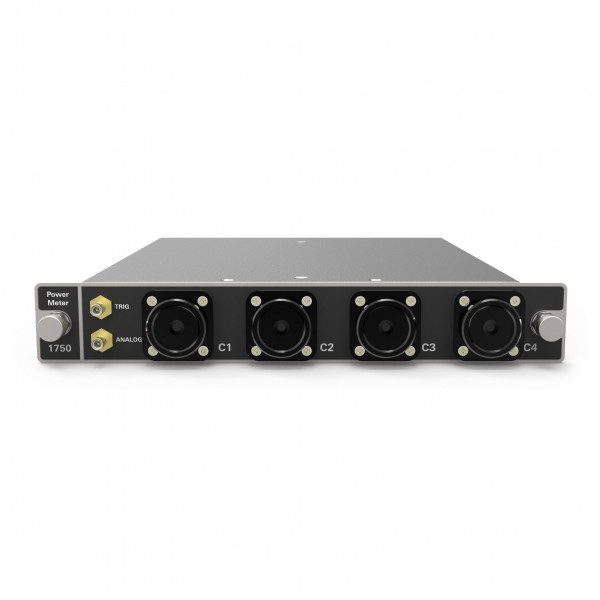

EXFO FTBx-1750 High-Performance Power Meter Module
SKU #FTBx-1750
Fast, accurate, flexible power measurement in a platform-based solution.
Contact to confirm lead time
Part Number
FTBx-1750
Features
- One, two or four detectors on a single module
- Ultra-High-Power™ remote head for measurement up to 37 dBm
- Continuous sampling rate of up to 5 kHz
- User-configurable trigger input and analog output
Description
An optical power meter that meets all your power measurement requirements
Designed for the new LTB-8 Rackmount Platform, the FTBx-1750 High-Performance Power Meter and the OHS-1700 Optical Head deliver speed, accuracy and flexibility in a platform-based solution.
High-speed acquisition with an extended range
The FTBx-1750’s unique, patented design saves time, cuts costs and significantly enhances throughput with its Continuous-mode peak-acquisition speed of 5208 acquisitions per second. Its 80 dB range and 300 μs stabilization time allows you to simultaneously measure high and low signals on one or two channels.Test more components with a single, small-footprint module, thanks to the FTBx-1750's two-channel capability.
Easy-to-use interface
The web-based graphical user interface (GUI) allows for the easy configuration of the power meter and simple status monitoring.
Locally, remotely or automated—the choice is yours
Control your FTBx-1750 power meter locally using the keyboard, mouse or display, available on the LTB-8, or access the same application remotely via any web browser by accessing your LTB-8 from your network.
The FTBx-1750 can also be easily integrated into an automated test station using the IVI-compliant drivers or available SCPI commands. Remote control is easily performed using Telnet over the built-in LAN port or the GPIB to USB adapter.
Optical fiber connections
The following diagram illustrates how the connection is made.
| Manufacturer | EXFO |
|---|---|
| Product Series | EXFO 1000-Series FTB Modules |
| Product Type | OTDR Modules |
| Calibrated Wavelengths | 800 to 1700 nm |
| Size / Operation | Benchtop, Handheld, Portable, Rack Mount |
| Case Included | Available Seperately |
| Detector Type | InGaAs suited for single-mode networks (Indium Gallium Arsenide) |
| Laser Safety | ≥ 1 |
| Industry | Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
| Applications | Access Construction (Underground, Aerial), Drop Construction (Aerial, Underground), Telecommunications (Back Bone, Metro & Long-haul), Long-haul installation, CO (Central Office) LAN and Network, OSP (Out Side Plant), NBN (National Broadband Network), Fiber Continuity, Polarity & Fault Finding, Single Mode Fiber Testing (SM), 1310/1550/1625 nm Wavelengths for NBN, Measuring Power Loss or Relative Power Level in dB, Carrier Field Test Instruments, IV Characterization |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team |
