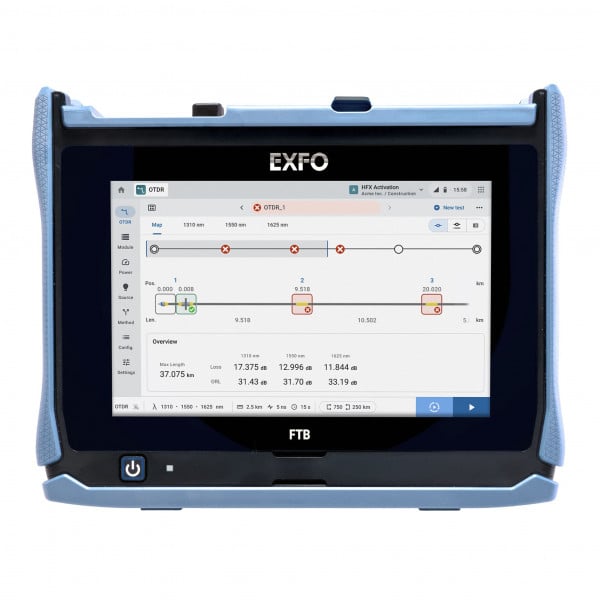

EXFO FTB Lite 750C Connected Metro/Longhaul OTDR

SKU #FTB-Lite-750C
750C model: a dedicated OTDR with 46db dynamic range, optimised for long-distance fibre characterisation and fibre upgrades. Always-on connectivity and enhanced usability, allowing for efficient, compliant, and secure access network testing.
Request Quote
Contact to confirm lead time
Part Number
FTB-Lite-750C

Features

  • Free 36-month basic data plan provided for real-time visibility
  • 8-inch (203-mm) color touchscreen for use in bright sunlight or any other environment
  • Dynamic range of up to 46 dB

  • Event dead zone (EDZ) / Attenuation dead zone (ADZ): 0.7/2.5 m in SM and MM, PON dead zone 35 m in SM

  • Up to 256 000 sampling points

  • Industry-leading onboard PDF reporting and post-processing

Applications

  • Metro network testing

  • Long-haul network testing

  • Manufacturing automation

Introducing the FTB Lite 700-Series OTDRs

The EXFO FTB Lite OTDR Series rethinks what operators need from their fibre optic testing, designed to streamline operations, enhance efficiency, and ensure compliance across your entire team. This innovative Optical Time Domain Reflectometer (OTDR) brings a new level of connectivity and simplicity to the field.

Test Procedure Compliance: A Critical Imperative

Over the past three years, nearly 40% of organisations have experienced significant outages primarily due to human error. Notably, 85% of these incidents originate from staff disregarding established methods of procedure (MoPs) or from flawed procedures themselves (Study by Uptime Institute, 2023).

Always-on Connectivity: Elevating Compliance, Efficiency, Security, and Visibility

The FTB Lite Series incorporates EXFO’s innovation in Optical Time Domain Reflectometry (OTDR) testing by adopting a robust and secure Connected First™ approach. This combination enhances its dedicated and rugged design, delivering remarkable improvements in compliance, efficiency, security, and visibility.

Streamlined Compliance and Automated Validation

Automated job tracking and real-time reporting are fundamental components of compliance assurance, ensuring adherence to MoPs while minimising errors and administrative burdens.

Enhanced Collaboration and Efficiency

Real-time data sharing, automated uploads, and cloud-based reporting foster seamless teamwork, expedite decision-making processes, and shorten project timelines.

Insightful Data Analysis

Automated access to comprehensive live data empowers organisations to conduct analytics and derive valuable insights, facilitating informed decision-making and strategic planning.

Icon-based Mapping: Visualising Link Elements

The Optical Link Mapper (OLM) is a fundamental feature of all FTB Lite OTDRs. OLM automatically interprets OTDR traces, providing an intuitive icon-based representation of link elements, including:

  • Automatic Analysis of Multiple Wavelengths: A consolidated link view display facilitates comprehensive analysis.
  • Synced with Events: OLM positions events below the linear view, enabling thorough observation of the link’s activity.
  • Display of End-to-End Link Length, Loss, and ORL: It accurately displays link length, loss, and ORL settings, tailored to user preferences.
  • Automatic Parameter Settings and Clear Go/No-Go Results: Automated parameter settings and clear go/no-go results streamline the analysis process.
  • Prompt Guidance: OLM offers prompt guidance on the location and nature of network issues, facilitating swift resolution.

This Optical Test Drive (OTDR) features a Swap-Out connector that can be easily replaced as needed, without sending the test unit to a service centre. This ensures optimal performance over time, minimising maintenance costs and downtime. The OTDR’s optical connector health can be monitored using an onboard diagnostic tool, allowing for connector replacement only when necessary.

The calibration date remains valid even after swapping the connector, eliminating the need for premature calibration of the unit.

Being able to replace a damaged OTDR connector, such as one caused by connecting a UPC cable to the APC port on your device, without causing is a huge advantage. With EXFO models featuring the Swap-Out connector functionality, you can instantly check connector health and replace the connector within seconds, directly from the field.

More Information
Manufacturer EXFO
Product Series EXFO FTB Lite 700-Series OTDRs
Product Type OTDR Platforms
Dynamic Range 39/38/39/39 dB
Size / Operation Handheld
Case Included Available Seperately, Soft case
Device Connectivity via USB, WiFi
Detector Type InGaAs suited for single-mode networks (Indium Gallium Arsenide)
Industry Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence
Applications Access Construction (Underground, Aerial), Drop Construction (Aerial, Underground), Telecommunications (Back Bone, Metro & Long-haul), OSP (Out Side Plant), NBN (National Broadband Network), Single Mode Fiber Testing (SM), 1310/1550/1625 nm Wavelengths for NBN, Attenuation and Insertion Loss Testing, Measuring Power Loss or Relative Power Level in dB, OTDR Testing & Fiber Characterisation, GPON (Gigabit Passive Optical Network), LAN Installation, Network Infrastructure, Network Core and Edge
Warranty 3 Years
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:EXFO FTB Lite 750C Connected Metro/Longhaul OTDR
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Brochures and Specifications
In This Series
  1. EXFO FTB Lite 735D Connected Metro/PON FTTx/MDU OTDR
    EXFO FTB Lite 735D Connected Metro/PON FTTx/MDU OTDR
    Request Quote

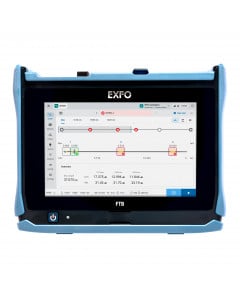

  2. EXFO FTB Lite 730D Connected PON/Metro OTDR
    EXFO FTB Lite 730D Connected PON/Metro OTDR
    Request Quote
  3. EXFO FTB Lite 720D Connected Access OTDR
    EXFO FTB Lite 720D Connected Access OTDR
    Request Quote
Related Products
  1. EXFO PPM-350D 10G-Capable XGS-PON Power Meter
    EXFO PPM-350D 10G-Capable XGS-PON Power Meter
    Request Quote
  2. EXFO MaxTester 735D - PON/metro FTTx/MDU OTDR
    EXFO MaxTester 735D - PON/metro FTTx/MDU OTDR
    Request Quote

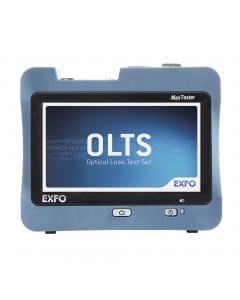

  3. EXFO MaxTester 945 Telco OLTS
