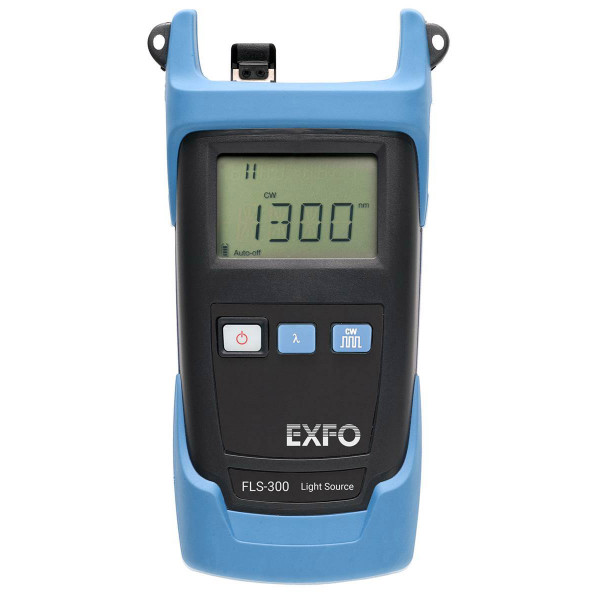

EXFO FLS-300 Light Source

EXFO
Be the first to review this product
SKU #FLS-300
The most versatile, complete light source available with up to three singlemode wavelengths on a single port, or four wavelengths (two multimode and two singlemode) on two ports.
Request Quote
Contact to confirm lead time
Part Number
FLS-300
Add to Wish List Add to Compare
Email
Details
More Information
Product Questions
Attached Files
Related Posts

Features

  • Can transmit with a wavelength-identification digital encrypted protocol so that any compatible unit can automatically use the proper calibration parameters
  • Autonomy of 120 hours
  • Instrument identification available in six languages
  • Highest output power in the industry
  • Three-year warranty and recommended calibration interval, for dramatically reduced cost of ownership

Applications

  • Link-loss characterisation
  • Fiber identification

Description



With up to three singlemode wavelengths on a single port, or four wavelengths (two multimode, and two singlemode) on two ports, the FLS-300 is the most versatile, complete light source available.

An FTTx test solution

This product is part of EXFO's series of FTTx optical test products. It allows for the testing of passive optical networks (PONs) at the three main wavelengths (1310, 1490 and 1550 nm) used in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) networks and complies with the ITU-T G.983 and G.984 Recommendation series and the IEEE 802.3ah standard.

Auto-wavelength recognition

The FLS-300 Light Source can transmit with a wavelength-identification digital encrypted protocol, so that any compatible unit—the FPM-300 Power Meter and the FOT-300 Optical Loss Test Set—can automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.

Distant referencing

Signal encrypting can also give the receiving end information on the power to be used as reference, helping ensure efficient referencing, even when the two units are far apart.

More Information
Manufacturer EXFO
Product Series EXFO FLS-Series Light Sources
Product Type Light Sources
Size / Operation Handheld
Case Included Available Seperately
Industry Installers and Contractors (OSP), Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Optical Equipment Manufacturing (OEM), Photonics, Research, Security, Utilities
Applications Fiber Continuity, Polarity & Fault Finding, Attenuation and Insertion Loss Testing
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:EXFO FLS-300 Light Source
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Brochures and Specifications
pdf
EXFO FLS-300 Light Source
(Size: 306.7 KB)
