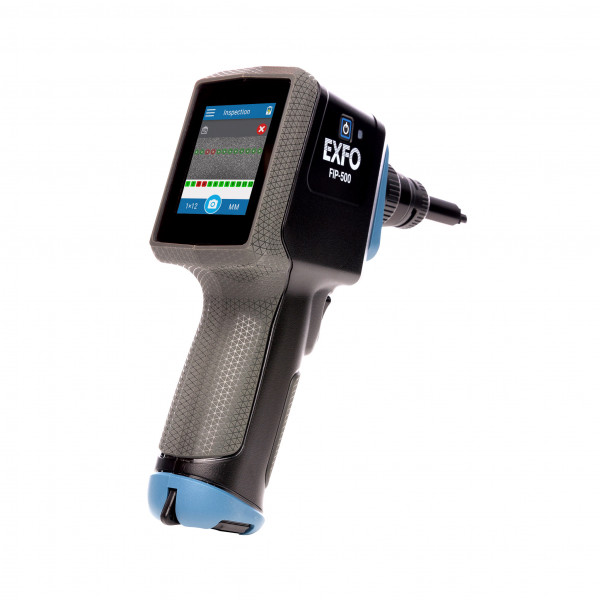

EXFO FIP-500 Fibre Inspection Scope

SKU #FIP-500
Fastest inspection in the industry for both single-fibre and multi-fibre connectors, with the most reliable results. Self-contained, fully automated tool for zero-button testing all day without the need to recharge batteries or offload results.
Request Quote
Contact to confirm lead time
Part Number
FIP-500

Features

  • Fastest inspection in the industry (in under 10 seconds for MPO-12)
  • Best-in-class optical performance for accurate and repeatable results
  • Zero-button inspection: 100% automated from insertion to data saving
  • Wide array of adapter tips for single-fiber and multi-fiber connectors (e.g., LC, SC, ST, MPO, OptiTap®, OptiTip®)
  • Smartphone-grade 2.4-inch color touchscreen
  • Quick-connect design: quarter-turn click for switching between any tips or inspection type
  • Test all day without any interruption: long-lasting battery and memory space to store results locally - 1800 (MPO) or 10 000 (single-fiber)

Applications

  • Central offices, exchanges and headends
  • Data centers
  • Wireless (e.g., 5G, FTTA, DAA, small cells)
  • Fiber-to-the-home (FTTH)

Spot on, every time.

What makes the FIP-500 the most reliable fiber inspection scope in the industry? The FIP-500 was designed with not one, but several innovative image capture techniques. This unprecedented visibility of the connector endface translates into optimal accuracy and repeatability.

Equip technicians against the no.1 cause of outages.

  • Innovative image capture techniques: Enhanced illumination technique based on two LEDs
  • Violet LEDs (405-nm light) for better contrast
  • Custom-carved lenses for optimal image quality
  • Dual-core CPU

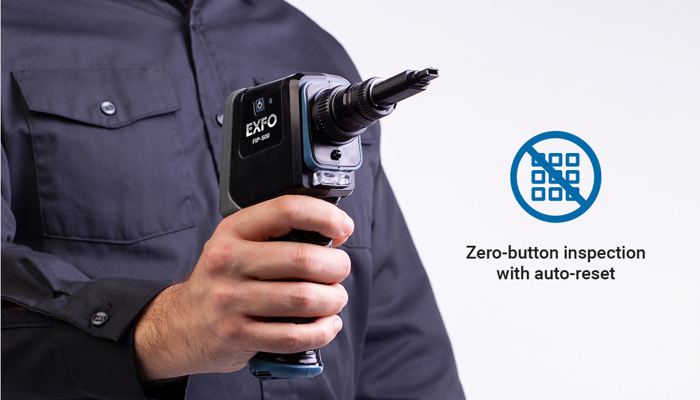

 Express zero-button MPO inspection.

Leverage the power of automation for a truly zero-button inspection process.

Inspecting an MPO-12? Simply insert a connector in the FIP-500 and—in less than 10 seconds—a pass/fail result is automatically obtained and saved without the need for any settings or further manipulation.

Test all day with lots of battery life and memory.Test all day with lots of battery life and memory.

Less handling, more doing.

Quick-connect tips: Swap tips in a quarter-turn click, a small but life-changing innovation. No loose parts, not a second wasted.

Longer reach: By design, the FIP-500 provides longer reach and better handling for inspection in dense fiber environments or on top of telecom towers.

Intuitive graphical user interface (GUI): Leveraging the capabilities of the touchscreen, the GUI is very user-friendly for any technician, regardless of their experience.



Less handling, more doing.Less handling, more doing.

Test all day with lots of battery life and memory.

Long battery life: The FIP-500 is powered by a Lithium-Polymer rechargeable battery which can support a full day of continuous use.

Memory space: With an internal memory that can save up to 1800 MPO test results or 10 000 single-fiber test results, there is no need to stop and offload results. Bluetooth connectivity ensures that these results can be shared easily.

These features, added to an ergonomic hand grip, all come together in helping the technician to close jobs all day without any interruption. This battery life and memory space combo is unique in the industry—and will give field teams equipped with the FIP-500 yet another solid advantage on the competition.



Test all day with lots of battery life and memory.Test all day with lots of battery life and memory.

Lowering the cost of ownership.

Every aspect of the FIP-500 has been designed to make savings in time and expenses, lowering its overall cost of ownership.

No training required: Zero-button, fully automated inspection combined to an intuitive GUI makes it easy for any technician to make the most of the FIP-500, without training.

Less tips and no loose parts: By default, the FIP-500 provides a longer reach than regular tips, reducing the overall number of tips that a technician needs to carry around. The simple yet innovative quarter-turn mechanism to swap tips means that there are no loose parts when changing them, hence lowering the risk of losing items.

Future-proof: The FIP-500 supports the inspection of MPO connectors with up to 4 rows by default. Periodical releases will enable new software functionalities.



Lowering the cost of ownership.Lowering the cost of ownership.

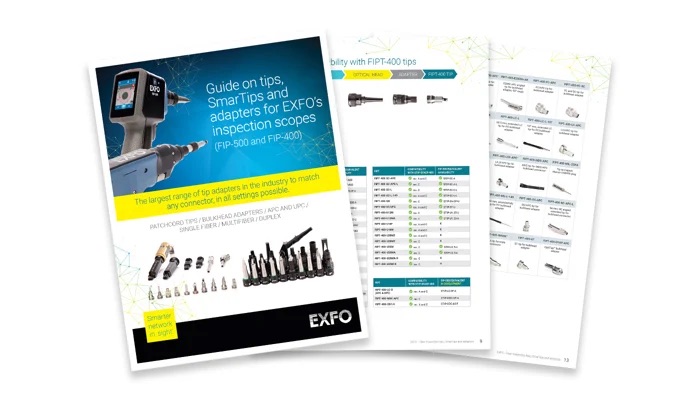

The largest range of tip adapters in the industry

Need to inspect single-fiber, multi-fiber and duplex connectors? The FIP-500 has the largest range of tip adapters in the industry, including SN-MT and MMC connectors.

Access our SmarTips guide to learn more and access list of all available tips and SmarTips and their corresponding connectors.

PDF version | Web version

Lowering the cost of ownership.Lowering the cost of ownership.
More Information
Manufacturer EXFO
Product Series EXFO FIP-500 Fiber Inspection Scope
Product Type Fiber Inspection Scopes
Size / Operation Handheld
Case Included Available Seperately
Device Connectivity via Bluetooth, USB, WiFi
Connector Interface MPO/MTP, 1.25 mm Universal (LC/MU), 2.5 mm Universal (FC/SC/ST), Interchangeable
Industry Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities
Applications Telecommunications (Back Bone, Metro & Long-haul), CO (Central Office) LAN and Network, OSP (Out Side Plant), NBN (National Broadband Network), Multi-fiber MPO/MTP Testing, End-face Inspection & Analysis Probes (PASS/FAIL), Data-centre certification and troubleshooting
Operating Temp. (Min) -10°C
Operating Temp. (Max) 50°C
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
