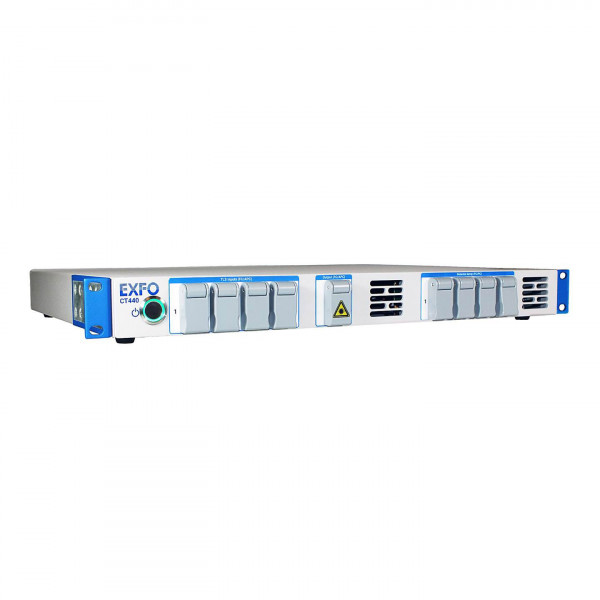

EXFO CT440/440-PDL Optical Component Tester

Features

• Fast transfer function measurement
• 1240–1680 nm wavelength range (SMF model)
• PM and PDL options
• 1–250 pm wavelength resolution
• ±5 pm wavelength accuracy
• 65 dB dynamic range in a single sweep
• Combines up to four tuneable lasers (SMF model)
• Four internal detectors, expandable with synchronisation

Applications

• Photonic integrated circuit (PIC) testing
• Wavelength selective switch testing
• Optical filter testing

Description

EXFO’s compact CT440 lets you quickly and accurately test passive optical components (e.g., MUX/DEMUX, filters, splitters) and modules (ROADM, WSS). What’s more, the unit covers the spectral range from 1240 to 1680 nm, allowing for measurements over the full telecom band. With the PDL option, the CT440 can simultaneously measure insertion loss and polarization dependent loss.

Accurate

The OSA20’s monochromator is built around EXFO’s renowned filter technology. Its narrow bandwidth (20 pm) is maintained throughout the spectral range of operation (1250 – 1700 nm). The monochromator also stands out by its extremely sharp filter edges and low stray light, ideal for optical signal to noise ratio (OSNR) measurement of tightly packed WDM channel testing. The OSA20 has a best-in-class wavelength repeatability of ±2 pm and accuracy of ±10 pm specified over 1500-1640 nm and comes with its own built-in wavelength calibration source.

Full-band sweep

The CT440 (SMF model) can operate between 1240 and 1680 nm and is fully compatible with EXFO’s T100S-HP series of tunable lasers. When several TLSs are used, the CT440 can automatically switch between the lasers to allow for seamless full‑band measurements. The single connection to the DUT means no external switch is required.

Fast insertion loss measurement

The CT440 features a unique combination of high-speed electronics and optical interferometry. The four integrated detectors let you simultaneously measure four channels with a 65 dB dynamic range in a single laser sweep. Moreover, ±5 pm wavelength accuracy is achieved at any sweep velocity, so there is no compromise between measurement speed and accuracy.

Accurate insertion loss measurement

The CT440 is a cost-effective solution that doesn’t compromise on performance. With its monitoring photodetector, adjustable sampling resolution, superior wavelength accuracy and built-in wavemeter, it delivers everything you need for accurate measurements in a single box when interfaced with a tunable laser source and PC.
