EXFO turns its inspection tool into an automated solution performing the three critical tests needed to validate MPO links. It’s an all-in-one solution delivering an optimal combination of fit, cost and reporting capabilities.
Multifiber push-on (MPO) connectors are increasingly popular because they provide many advantages to high-speed network operators, owners and installation companies. They are used to connect the fastest links that deliver the most sensitive of services and data to customers, enable high-speed interconnects and create redundancy.
Increasingly, telcos are also reconfiguring their central offices into data centres (CORDs) and deploying MPO cables with 12, but more and more, 24 fibres. When not properly tested, multifiber links can put the entire health of a network at risk. Without proper validation, CORD operators may end up having to pull the plug on critical lines at the same time for troubleshooting.
Traditional multifiber testing solutions often fall short on design or price, can’t perform all three critical tests or don’t offer analysis and reporting capabilities. Customers are left choosing between solutions that are either too much for what they really need (and too expensive) or sorely lacking in features and fit. What's more, they often have to buy different units to get the job done.
To avoid downtime or unnecessary OPEX and CAPEX, techs need simple, easy-to-use tools—and a clear, reliable method—to get essential testing required done quickly and accurately.

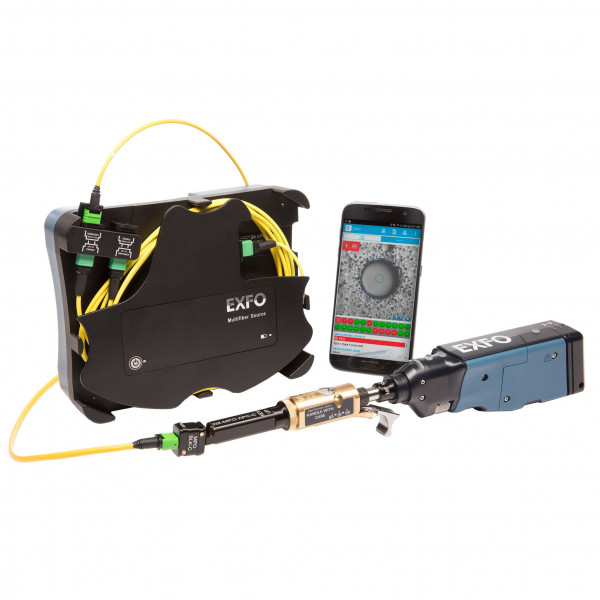

The ConnectorMax MPO Link Test Solution takes the three essential tests needed to validate MPO links—polarity, continuity and connector cleanliness—and combines them into one automated solution. It pairs a light source at one end of the cable with a fiber inspection probe for analysis at the other end—a first in the industry. The solution brings together the ConnectorMax Multifiber Source with the ConnectorMax Fiber Inspection Probe to deliver a quick and easy-to-use solution that validates the polarity type, continuity and connector cleanliness of MPO fiber optic links. It provides a fit for purpose solution that helps our customers test and turn up networks right the first time—making deployments faster, more efficient and cost effective.
As many customers already own an EXFO probe, this solution is highly economical. Not only do field technicians already benefit from the best MPO inspection tool on the market that eradicates the number one cause of network failures (contaminated connectors), it now enables them to check polarity and continuity, in just about the same time as inspection alone.
Results are loaded in the ConnectorMax Analysis Software, an app for mobile devices providing clear pass/fail status and reporting functions, making it easy for technicians to perform and view the results of all three of these tests on the spot.
During installation, MPO connectors must be properly aligned and mated—not as simple as it sounds. Ensuring accurate polarity for MPO fiber array cables is a big deal and can be complicated to manage due to multiple polarity schemes available for these connectors and polarity flipping during connecting and installation. Polarity validation is proving especially critical with the new MPO connectors that enable polarity reconfiguration in the field. Validating the polarity type would ensure that the signal path is the expected one and that the proper Tx will talk to the right Rx.
Confirming the continuity of a link ensures that there is no break and that light travels properly all the way to the end of the link under test. It’s a quick continuity test for cables that, when done at time of installation, can save a lot of time in potential troubleshooting later.
With the contaminated connectors being the number one cause of network failure, connector inspection is a priority. Bad connectors are the main cause of loss for cables and short links up to 5 km and the impact is even greater for MPO links where a single dirty or damaged connector can affect as many as 12 or 24 fibres.
With MPO links containing multiple fibres, turning down a link for troubleshooting can effect multiple clients and create customer churn. Using EXFO’s ConnectorMax solution will ensure links are valid and network downtime minimised.
1 MTP is a registered trademark of US Conec Ltd.
2 The ConnectorMax MPO Link Test Solution is patent pending.
|Product Series||EXFO FIP-400B Series Fiber Inspection Probe|
|Product Type||Fiber Inspection Scopes|
|Fiber Compatibility||12 Fiber Flat Ribbon Cable (ITU-T G.652D)|
|Size / Operation||Handheld|
|Case Included||Soft case|
|Device Connectivity via||USB|
|Industry||Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers, Data Centres, Enterprise Networks, Government and Defence Communications|
|Applications||Access Construction (Underground, Aerial), Drop Construction (Aerial, Underground), Telecommunications (Back Bone, Metro & Long-haul), CO (Central Office) LAN and Network, OSP (Out Side Plant), NBN (National Broadband Network), NBN: 12 Fiber Flat Ribbon Cable (ITU-T G.652D), Multi-fiber MPO/MTP Testing|
|Networking Protocol||1000BASE-LX (IEEE 802.3z), 1000BASE-SX (IEEE 802.3z), 1000BASE-T (IEEE 802.3ab), 1000BASE-TX, 100BASE-TX (IEEE 802.3u), 10BASE-T (IEEE 802.3), ADSL ANSI (T1.413 Issue 2), ADSL G.DMT (ITU G.992.1a, b), ADSL G.Lite (ITU G.992.2ab), ADSL2 (ITU G.992.3a, b, l, m), ADSL2+ (ITU G.992.5a, b), VDSL1 (ITU G.993.1), VDSL2 (ITU G.993.2), 100M Ethernet, 10M Ethernet, Fast Ethernet, 1G Ethernet, Gigabit Ethernet|
