EXFO BA-4000 Bit Analyser - Electrical 800G Bit Error Rate Tester

Features

• 100G (4x28GBd), 400G (4x56GBd) & 800G (8x56GBd)
• Supports NRZ and PAM4
• Supports PRBS 7/9/11/13/15/23/31/13Q/31Q, SSPRQ
• FEC capability: RS-FEC Scrambled Idle Pattern for testing 53 GBd host side interfaces
• Channel simulator
• Burst/random error injection
• Supports linear/grey mapping
• O-SMPM connection

Applications

• Test and validation of transceivers
• Test of subassemblies such as TOSA and ROSA
• Test of FPGA, Module Compliance Board (MCB) and Host Compliance Board (HCB)

Description

Bit error rate (BER) is a key performance attribute for digital communications. The signal transmission quality of a network, subsystem or component, can be evaluated using a BER tester, which compares the data stream received to the transmitted sequence and computes the number of errors.

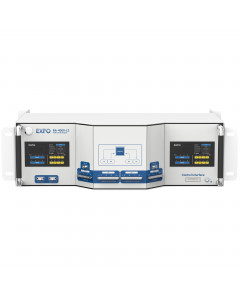

The BA-4000 Bit Analyzer is an electrical NRZ/PAM4 BER tester designed for the production floor. It comes in six models:

• BA-4000-4-28-NRZ: 100G BERT including 4-channel NRZ 28 Gbit/s.
• BA-4000-8-28-NRZ: 200G BERT including 8-channel NRZ 28 Gbit/s.
• BA-4000-4-28-PAM: 100G/200G BERT enabling either 4-channel NRZ 28 Gbit/s or 4-channel PAM4 28 GBd.
• BA-4000-4-56-PAM: 200G/400G BERT enabling either 4-channel NRZ 56 Gbit/s or 4-channel PAM4 56 GBd.
• BA-4000-8-28-PAM: 200G/400G BERT suitable for either 8-channel NRZ 28 Gbit/s or 8-channel PAM4 28 GBd.
• BA-4000-8-56-PAM: 400G/800G BERT suitable for either 8-channel NRZ 56 Gbit/s or 8-channel PAM4 56 GBd.

The BA-4000 Bit Analyzer leverages FEC simulation capabilities to provide powerful analysis for burst error. Some of the main FEC features are:

• PRBS error check and correction
• Pre-FEC and Post-FEC BER
• KP4/KR4 and low latency FEC protocols
• FEC Generator and Checker (FGC) to address RS-FEC Scrambled Idle Pattern
• FEC symbol error distribution plot: codewords vs symbols errors
• FEC margin auto-calculation
