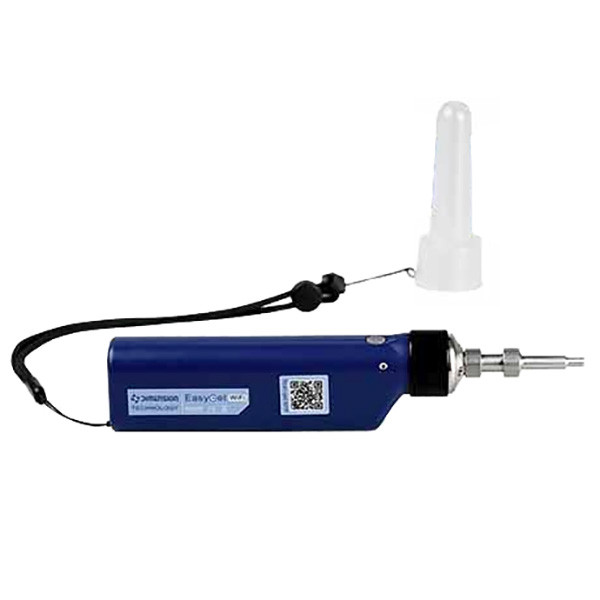

Dimension EasyGetWiFi Wireless Fiber Microscope

SKU #583192 | MFR #30006019
Portable handheld fiber end-face visual inspector. Equipped with WiFi connectivity for smartphones, and USB port for Windows devices, EasyGetWiFi transfers the captured end-face image to display on smartphones, tablets and laptops.
AU$1,091.75 AU$1,200.93
Request current lead time
Part Number
583192

Features

  • WiFi connectivity for Android and iOS devices
    • Requires installation of the free Dimension app available from the Google Play Store / Apple App Store
    • Use the free Dimension app to perform Pass/Fail analysis
  • USB connectivity for Windows devices
    • Free Dimension software provides images from the EasyGet device
    • Additional Pass/Fail analysis requires additional Dimension USB dongle and software (sold separately)
  • Compact, user-friendly and safe
  • Battery duration up to 5 hours
  • Universal USB Type C interface, compatible with various charging devices
  • Unique LED light, flexible at low-light or dark environment



Description

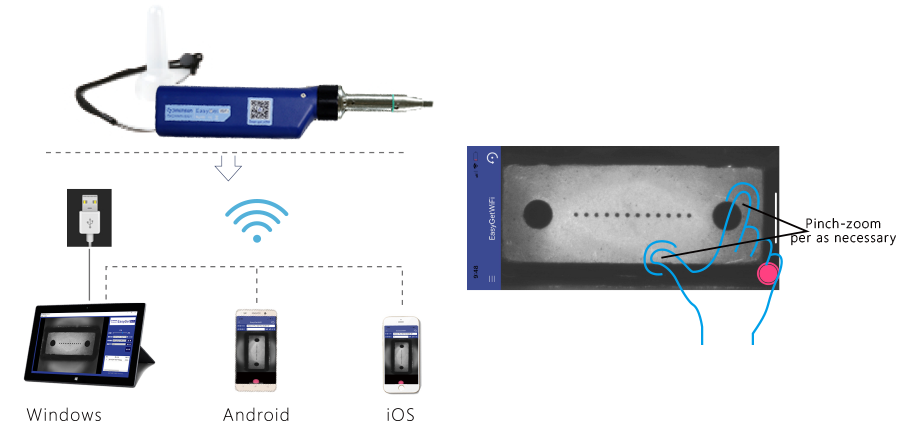

The EasyGetWiFi is a portable handheld fiber end-face visual inspector. Equipped with WiFi and USB port for image transmission, the EasyGetWiFi can transfer the captured fiber end-face image quickly to display terminals like smartphone, tablet and laptops. Compatible via USB cable with Windows (Win7 and later), and via WiFi with Android (4.2 and later) and iOS (9.3 and later). With the help of EasyGetWiFi, it’s quick and easy to analyse the defects on fiber end-face and save the image for tracing-back.

Please note that performing Pass/Fail analysis on Windows devices requires the Dimension USB dongle and software (sold separately).






EasyGetWiFi features a 5.5 um resolution, 5MP CMOS sensor, and a 7.03mm x 3.6mm field of vision.

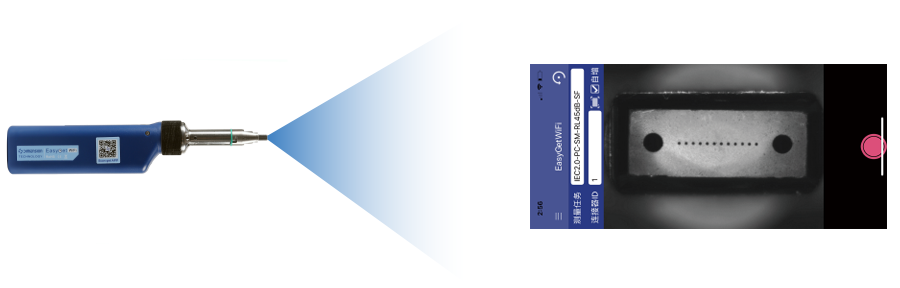

The unique internal LED lighting method ensures the sharpness and uniformity of the image, and improves the detection area up to 7.03mm * 3.6mm. One-time inspection of the entire end surface image can clearly the detects of the fiber end surface and the surrounding conditions of the PIN hole.

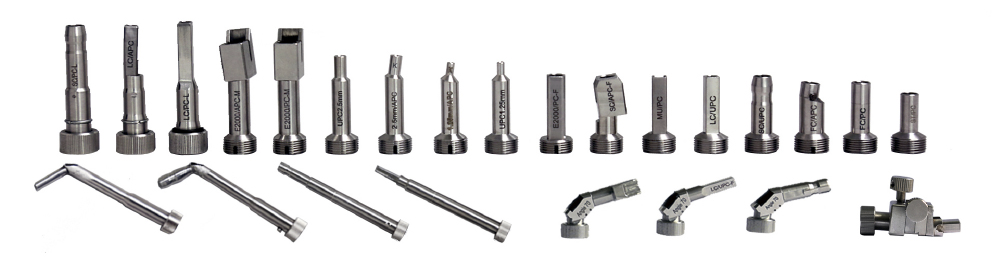

Comprehensive Options for Adaptors

More than 40 types of adaptors are ready for your special inspections. From standard single channel connectors to MPO, you can find the adaptor ready for your testing.

The connector interface is easy to install and rotate quickly. Replacement with different interfaces can support detection of MPO / PC, MPO / APC, MPO optical module, MT ferrule and other products.

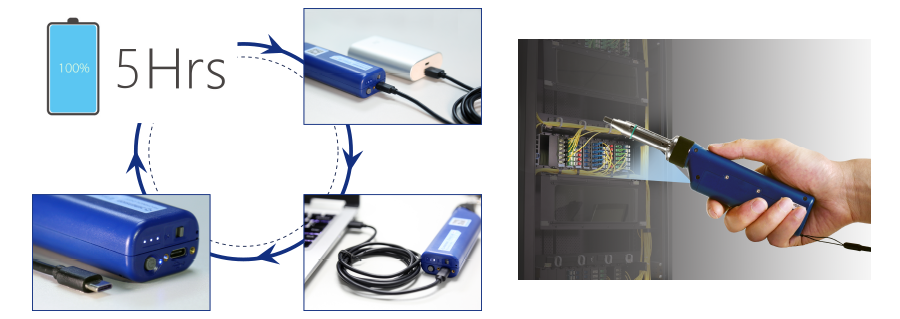

Battery duration up to 5 hours

EasyGetWiFi has a built-in rechargeable intelligent battery with duration up to 5 hours in a single operation. It also can be used while charging. EasyGet Wifi is equipped with an universal USB Type C charging interface, which is compatible with various charging devices, such as PC's USB interface, power bank, etc. Users do not need to carry a dedicated charging device.

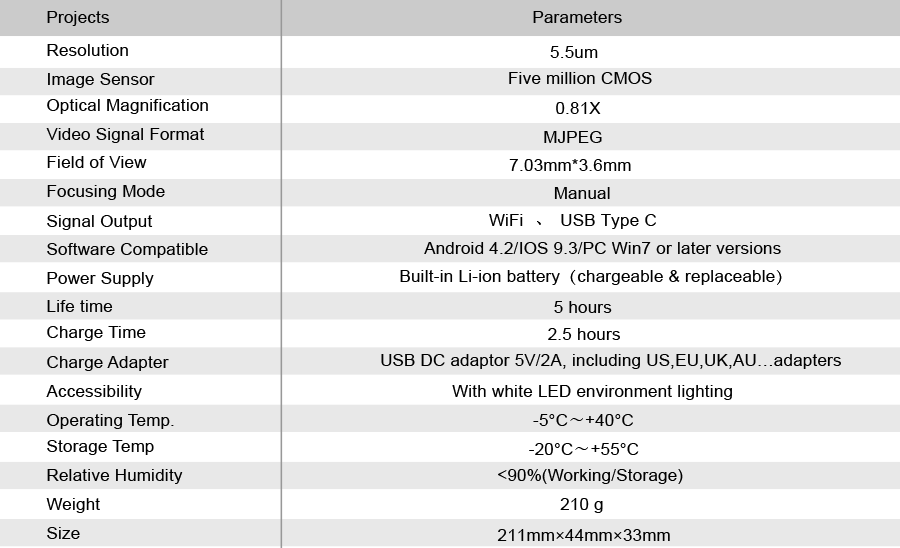

Specifications


More Information
Manufacturer Dimension
Manufacturer Part Number 30006019
Product Series Dimension EasyGetWiFi Wireless Fiber Microscope
Product Type Fiber Inspection Scopes
Size / Operation Handheld
Device Connectivity via USB, WiFi
System Compatibility
Android 4.2 / iOS 9.3 / PC Win7 / Linux 2.6 or higher.
Connector Interface Interchangeable
Magnification 10x
Industry Installers and Contractors (OSP), Campus Networks, Data Centres, Enterprise Networks, Broadcast, Security, Transportation, Utilities
Applications Telecommunications (Back Bone, Metro & Long-haul), End-face Inspection & Analysis Probes (PASS/FAIL)
Operating Temp. (Min) -5°C
Operating Temp. (Max) 50°C
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:Dimension EasyGetWiFi Wireless Fiber Microscope
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
In This Series

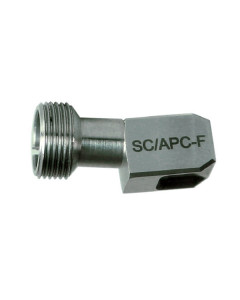

  1. Dimension EGT2/AGT SC-APC-F - SC/APC Female Adaptor
    Dimension EGT2/AGT SC-APC-F - SC/APC Female Adaptor
    AU$101.38 AU$111.52
  2. Dimension EGT2/AGT 2.5-APC-F - 2.5mm APC Female Adaptor
    Dimension EGT2/AGT 2.5-APC-F - 2.5mm APC Female Adaptor
    AU$85.78 AU$94.36
  3. Dimension Fibre Elbow Adapter
    Dimension Fibre Elbow Adapter
    Request Quote
  4. Dimension EasyGet Wifi MT Wireless Full Fiber Endface Microscope
    Dimension EasyGet Wifi MT Wireless Full Fiber Endface Microscope
    Request Quote
  5. Dimension AutoGet Wifi Intelligent Fiber Endface Microscope
    Dimension AutoGet Wifi Intelligent Fiber Endface Microscope
    AU$1,110.95 AU$1,222.05
Related Products
  1. Dimension Fibre Elbow Adapter
    Dimension Fibre Elbow Adapter
    Request Quote
  2. Dimension SANA2 Fiber Endface Interferometer
    Dimension SANA2 Fiber Endface Interferometer
    Request Quote

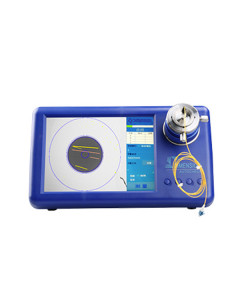

  3. Dimension AutoCheck Intelligent Integrated Fiber End-face Visual Inspector
