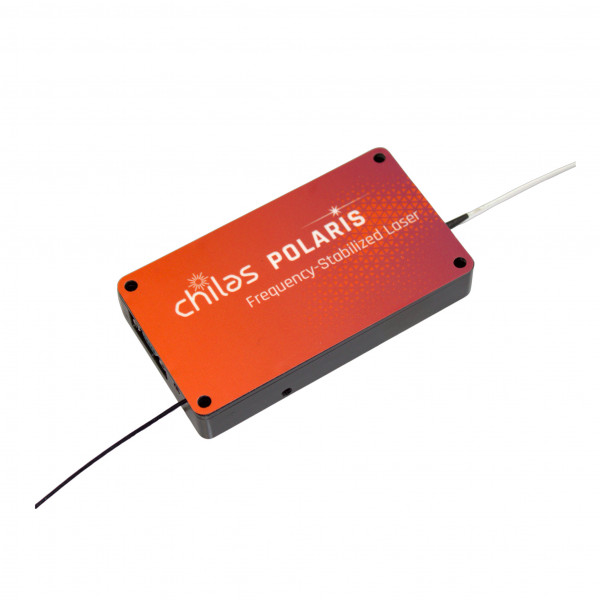

Chilas POLARIS – Frequency-Stabilised Laser
SKU #POLARIS-Series
Chilas Polaris is a single-frequency, ultra-stable laser precisely set at the wavelength your application demands.
Typically Ships in 15 to 20 Business Days
Part Number
POLARIS-Series
Key Features
- Selectable ITU channel with 50 GHz spacing
- C-band
- Excellent stability
- Ultra-narrow linewidth
- Ultra-low RIN
- Compact housing
- Easy to set up and use
- Manual temperature and current tuning through software
- High modulation depth and bandwidth
- RoHS certified
Applications
- LiDAR
- Quantum Key Distribution
- Telecommunications
- Free-Space Optical Communication Systems
- Metrology
Introduction
Chilas Polaris is an advanced, single-frequency laser that delivers ultra-stable performance. This laser is calibrated to emit light at the specific wavelength required for your application, ensuring optimal functionality and efficiency. Its durable construction guarantees low levels of both phase and intensity noise, which is crucial for achieving high-quality results. This design enhances performance and provides long-term stability in output frequency and power, making it a reliable choice for demanding applications.
Optical Specifications
| Parameter | Specification |
|---|---|
| Wavelength | Selectable ITU channel |
| Integral linewidth | < 10 kHz at 10ms |
| Fiber output power | ≥ 13 dBm |
| Modulation bandwidth | 1.5 MHz |
| Modulation depth | 2.5 GHz (at 1 kHz) |
| Package | 85*47*18 mm |
| Fiber connector | PM FC/APC |
Optical Specifications
| Parameter | Specification |
|---|---|
| Wavelength | Selectable ITU channel |
| Integral linewidth | < 10 kHz at 10ms |
| Fiber output power | ≥ 13 dBm |
| Modulation bandwidth | 1.5 MHz |
| Modulation depth | 2.5 GHz (at 1 kHz) |
| Package | 85*47*18 mm |
| Fiber connector | PM FC/APC |
| Manufacturer | Chilas Lasers |
|---|---|
| Product Series | Chilas POLARIS Series Frequency-Stabilised Laser |
| Product Type | Laser Modules |
| Size / Operation | Benchtop, Fixed Installation |
| Industry | Telecommunications, Aerospace and Defence, Fiber Optic Lasers, Optical Equipment Manufacturing (OEM), Research, Mining, Off-shore and Remote |
| Applications | System Emulation (Loss, length, time delay and reflectance), OEM (Optical Equipment Manufacturing), Advanced Testing, Inspection and Measurement Applications, Insertion Loss (IL) and Return Loss (RL) Measurements, MEMS (Microelectromechanical Systems), Optical Component Emulation, Laser Systems, Testing of high speed optical receivers, Optical Parametric Oscillators (OPOs), Optical Spectrum Analysis (OSA), Carriers, Service and Content Providers, Research and Development |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team |
