FLEXBOX Series - FLEXOPTIX Universal Transceiver Programmer (USB)

Rating:
100 % of 100
SKU #FO.FB.MP
Instantly reconfigure FLEXOPTIX Universal Transceivers from your laptop or Android device.
  • Includes the new FLEXBOX Mobility Pack providing Bluetooth, Battery Pack + USB-C.
  • Rugged, pocket-sized chassis with convenient USB interface
  • Access the FLEXOPTIX cloud-hosted coding database on-demand, 24 hours a day
  • Over 150 supported hardware vendors with up-to-the-minute coding for more than 3000 devices
  • Configures CSFP, SFP, SFP+, XFP, QSFP+, QSFP28, SFP28, CFP, CFP2, CFP4 Universal Transceivers with full support for 400G modules and DWDM wavelength tuning
  • Troubleshoot with live transceiver diagnostics, built in Optical Power Meter and Light Source
  • Use in combination with the FLEXOPTIX App and configure your Universal Transceivers within seconds.
  • Need multiple FLEXBOX for your locations? Talk to our team about the discounts available.
  • The FLEXBOX transceiver programming function works with FLEXOPTIX Universal Transceivers. It won't reprogram generic SFP transceivers.
As low as AU$2,307.08 AU$2,537.79
Confirm stocks / Dispatched from Germany (7 days)
Part Number
FO.FB.MP

Transceiver configuration on-demand

With the FLEXBOX you can reprogram a FLEXOPTIX Universal Transceiver just seconds. Need to use the transceiver with another device? Just re-insert the transceiver and select a new configuration - as many times as you like.

1

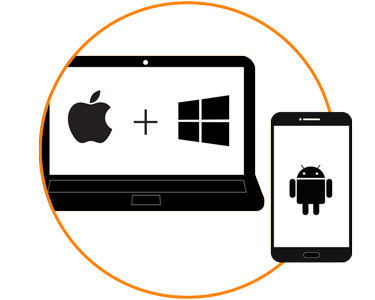

Connect the FLEXBOX to your laptop or Android via USB

The palm-sized FLEXBOX is built tough. Ready for the field, the convenient USB / micro-USB-B interface works with Mac, PC and Android devices.

Apple iOS device support coming soon to the App Store.

Fibre optic equipment and solutions range at AusOptic
2

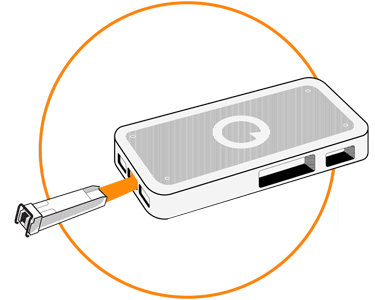

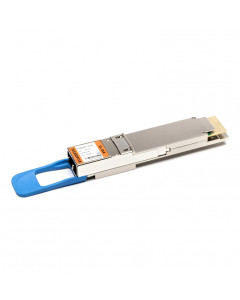

Take a Universal Transceiver and insert it into the FLEXBOX

FLEXOPTIX Universal Transceivers can be reconfigured with the FLEXBOX in seconds, ready for deployment in multiple systems.

Insert the FLEXOPTIX Universal Transceiver into the FLEXBOX
3

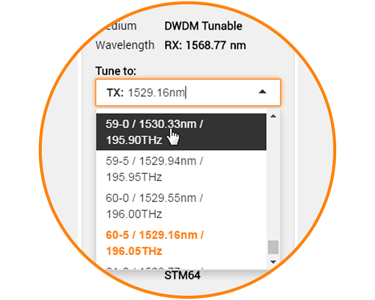

Select your required configuration from the simple interface

Access to DWDM wavelength tuning, transceiver coding, and diagnostics. Built in Optical Power Measurement and Distance Analyser.

Simple to use, powerful functionality
4

Live access to over 150 supported hardware vendors

Get up-to-the-minute configurations for more than 3000 devices. Anywhere in the world, 24hrs a day.

Over 150 supported hardware vendors

2 models to choose from

The FLEXBOX is the industry's first end-user programming device with full support for 100G plugable formats. In addition to the standard FLEXBOX V4B model, the V4 is optionally available with CFP support for your CFP transceiver applications.

Fibre optic equipment and solutions range at AusOptic

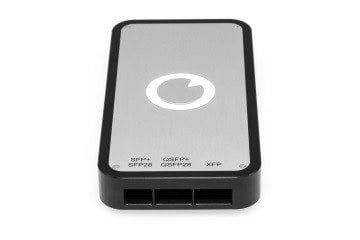

FLEXBOX V4B

CSFP, SFP, SFP+, XFP, QSFP+, QSFP28, SFP28

Fibre optic equipment and solutions range at AusOptic

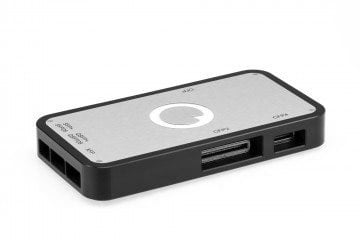

FLEXBOX V4 with CFP support

CSFP, SFP, SFP+, XFP, QSFP+, QSFP28, SFP28
CFP, CFP2, CFP4

Built to solve real-world problems

The FLEXBOX is the first of its kind - a mobile tool, built to solve real life problems faced by optical network engineers. The pocket-sized device is packed with powerful functions, all controlled by a smart, easy-to-use interface.

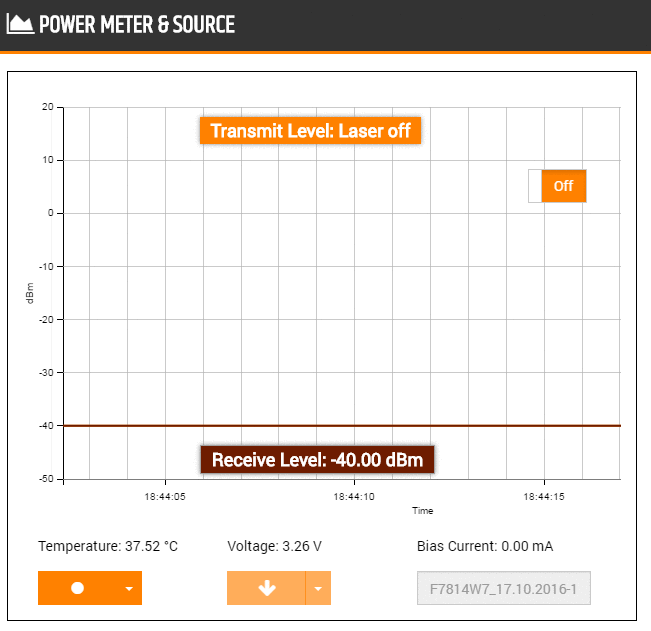

Integrated Power Meter and Light Source

Troubleshoot potential problems in your fiber link, CWDM or DWDM systems with without additional equipment. The FLEXBOX combines all the commonalities of a physical power meter and optical light source in an intuitive and reliable application, all you need is your FLEXBOX and a transceiver.

Displays voltage, temperature and bias-current values in combination with time based continuous chart for transmit and receive levels. Readings are recorded for subsequent recall and can be downloaded as JSON or CSV file.

Built-in optical Power Meter and Light Source
  • Power Meter applications
    • Check and validate power loss during fiber installation and maintenance
    • End-to-End error diagnostics
    • Insertion loss testing/measurement of attenuation on fiber optic links
  • Light Source applications
    • Point-to-point attenuation measurement
    • Link-loss characterisation
    • Identify your fiber in a patch panel
    • Determine loss via correlation of counterpart TX and RX values

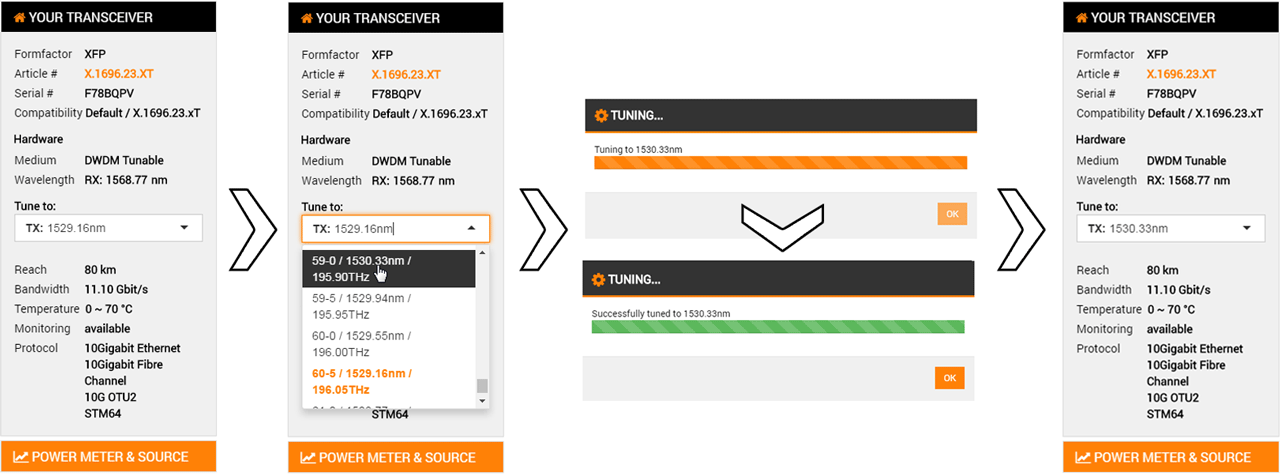

Select and tune wavelengths for DWDM transceivers

A DWDM tuner anyone can use. Configure and re-configure channels for tunable transceivers like XFP DWDM, SFP+ DWDM, CFP DWDM Coherent in seconds.

Fiber Optic End Capping
Plug a transceiver into your FLEXBOX. Go to the Your Transceiver tab. Change the Wavelength in drop down to desired channel. Your transceiver will be ready in just a few seconds.

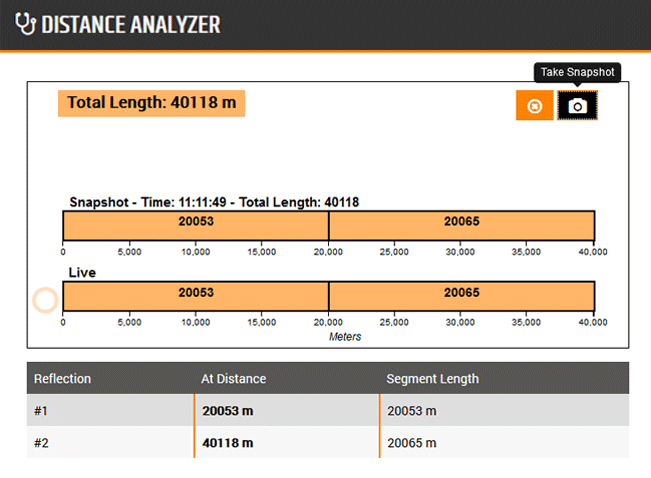

Perform distance analysis on your fiber link

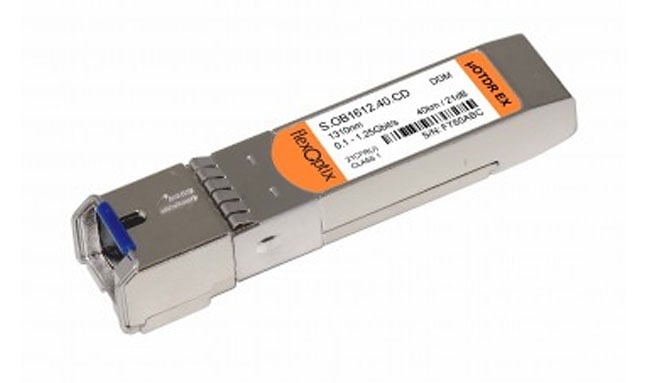

Inspect the optical link loss or locate faults in your fiber with the Distance Analyzer function by using the FLEXBOX in combination with FLEXOPTIX SFP+ microOTDR S.OB1612.40.XD. The Distance Analyzer charts the the total length of your optical fiber link including all sub segments.

  • Detect and locate faulty connections during installation and maintenance
  • Measure total fiber length, to determine which transceiver budget is necessary
  • One side measurement: Only one side of the link is needed to measure the link length
  • Single-direction distance analysis and segment identification
FLEXBOX Distance Analyser function with MicroOTDRFLEXOPTIX MicroOTDR SFP
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceiver Programmers
Size / Operation Portable
Protection Level Ruggedised
Device Connectivity via USB
Industry Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, Testing of high speed optical receivers, RF and microwave photonics, Installers and Telco Contractors, Carriers, Service and Content Providers, Enterprise Networking
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team,
Engineered to FLEXOPTIX exacting standards
You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires
