New Luna Innovations Product Demonstrations from OFC 2020

Featuring Luna's advanced fibre optic sensing, silicon photonics, 100G/400G coherent technology, accelerating manufacturing test equipment.

Luna Innovations presented their comprehensive range of solutions for photonic test, measurement and control during at OFC 2020. OFC, which took place March 8-12 in San Diego, is the world’s largest conference and exhibition for optical communications and networking professionals.

The new 6200 and 6400 Series units provide field characterisation and high-precision measurement of optical fiber using OFDR technology.

Optical Frequency Domain Reflectometry (OFDR) technology measures distributed return loss (RL) and insertion loss (IL) with high precision and dynamic range.

Advancing Fiber Optic Network Test

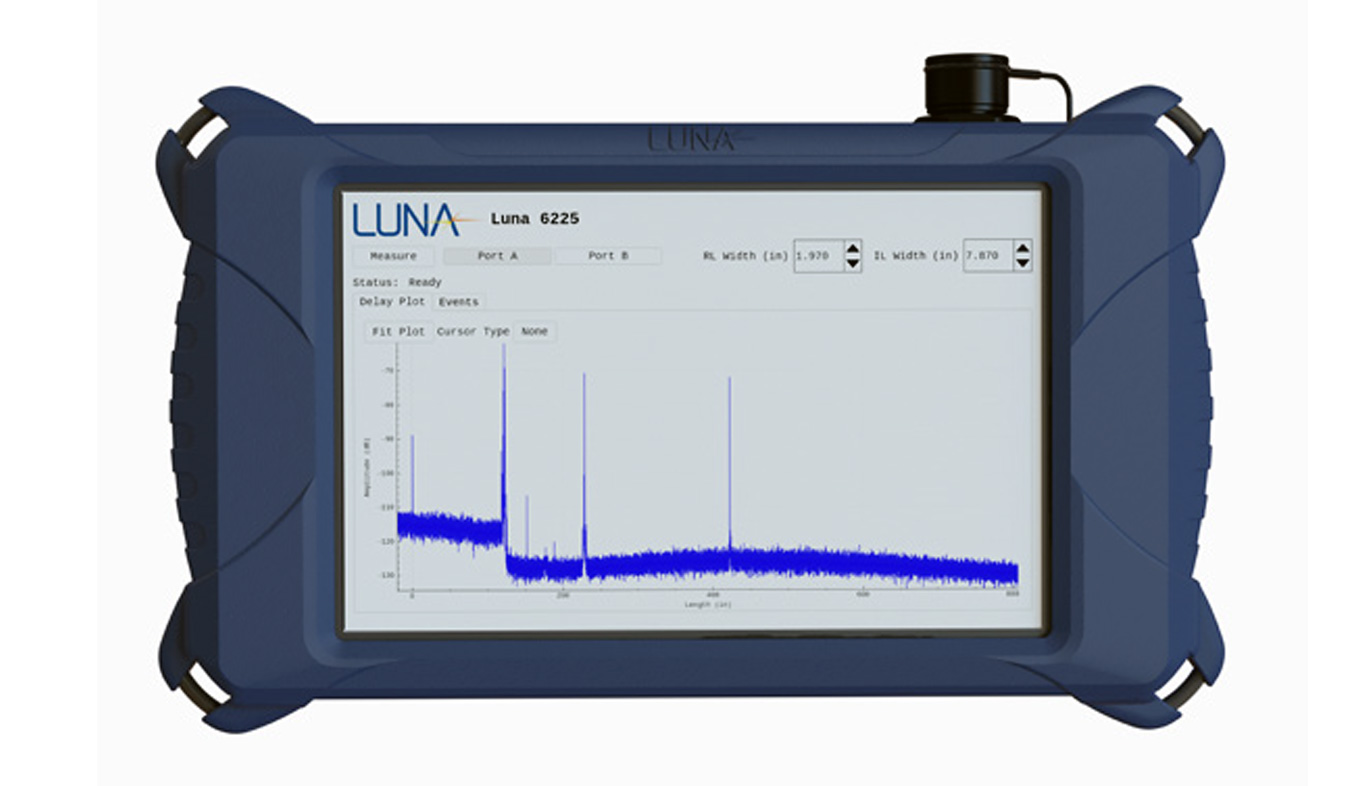

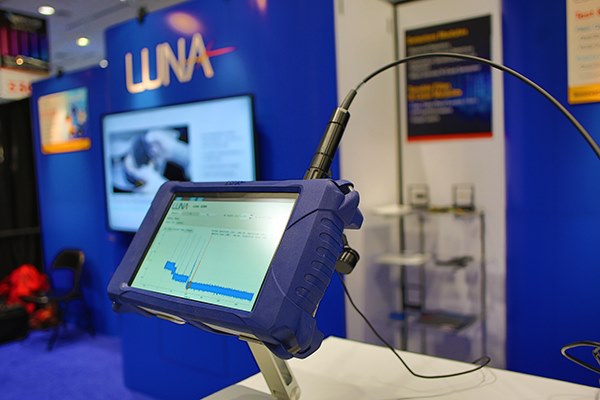

Luna OBR 6225 Portable Optical Backscatter Reflectometer

The Luna OBR 6200 Series is a new line of portable and rugged ultra-high resolution reflectometers with backscatter-level sensitivity for testing fiber optic networks deployed in aerospace, naval, data centre and industrial applications.

World’s Highest Resolution Portable Optical Reflectometer

• Diagnose and troubleshoot fiber harnesses
• Sub-millimetre spatial resolution
• Measure, RL, IL, path length and skew
• Rugged IP65 and MIL-SPEC certifications

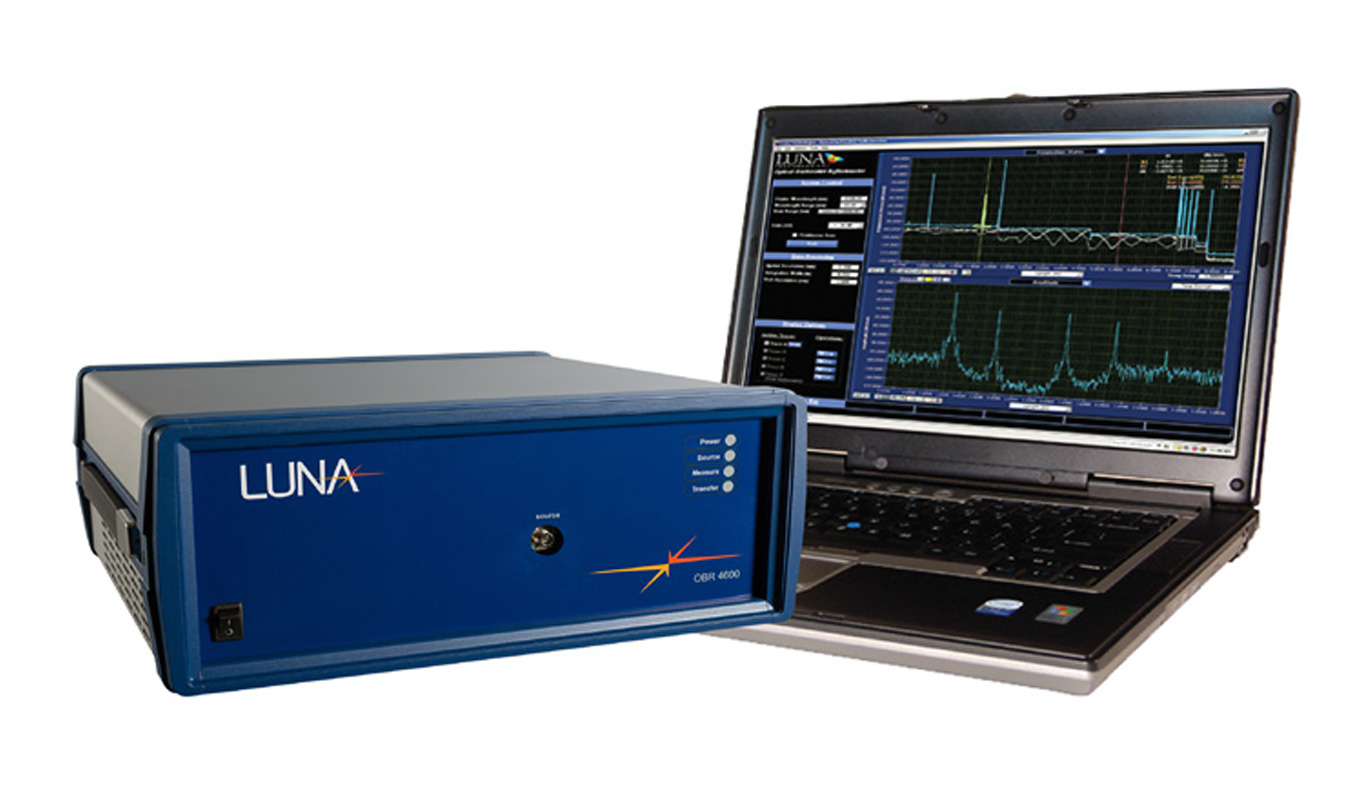

Luna OBR 4600 Optical Backscatter Reflectometer

High-Resolution Reflectometer with Zero Dead Zone

• Sampling resolution of 10 μm
• Measure waveguide scattering and loss
• Measure skew with sub-ps resolution

Enabling Silicon Photonics

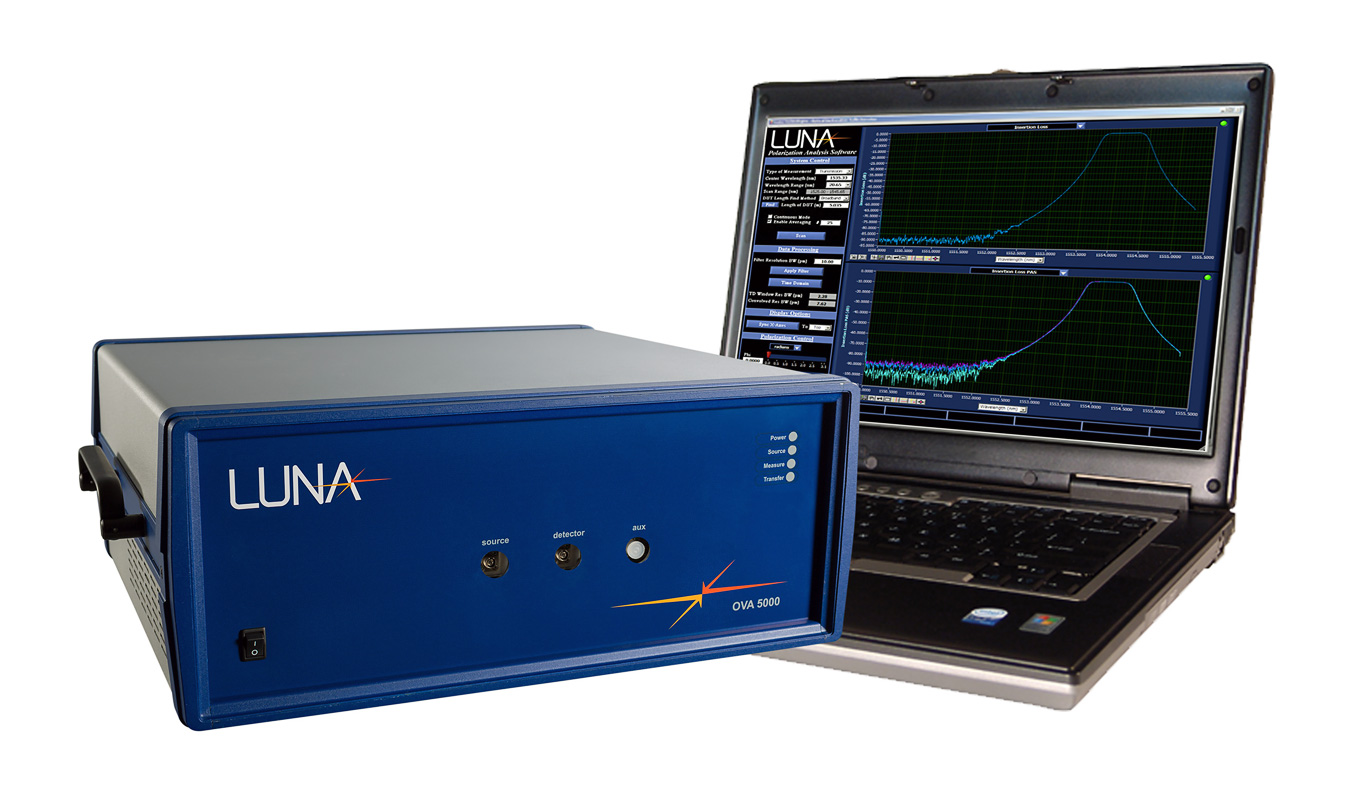

Luna OVA 5000 Optical Vector Analyser

Fast and Complete Component Characterisation for Silicon Photonics

• Measure instantaneous IL, RL, PDL, PMD, TE/TM states, CD, group delay and more
• Full polarisation analysis
• Complete characterisation in less than 3 seconds

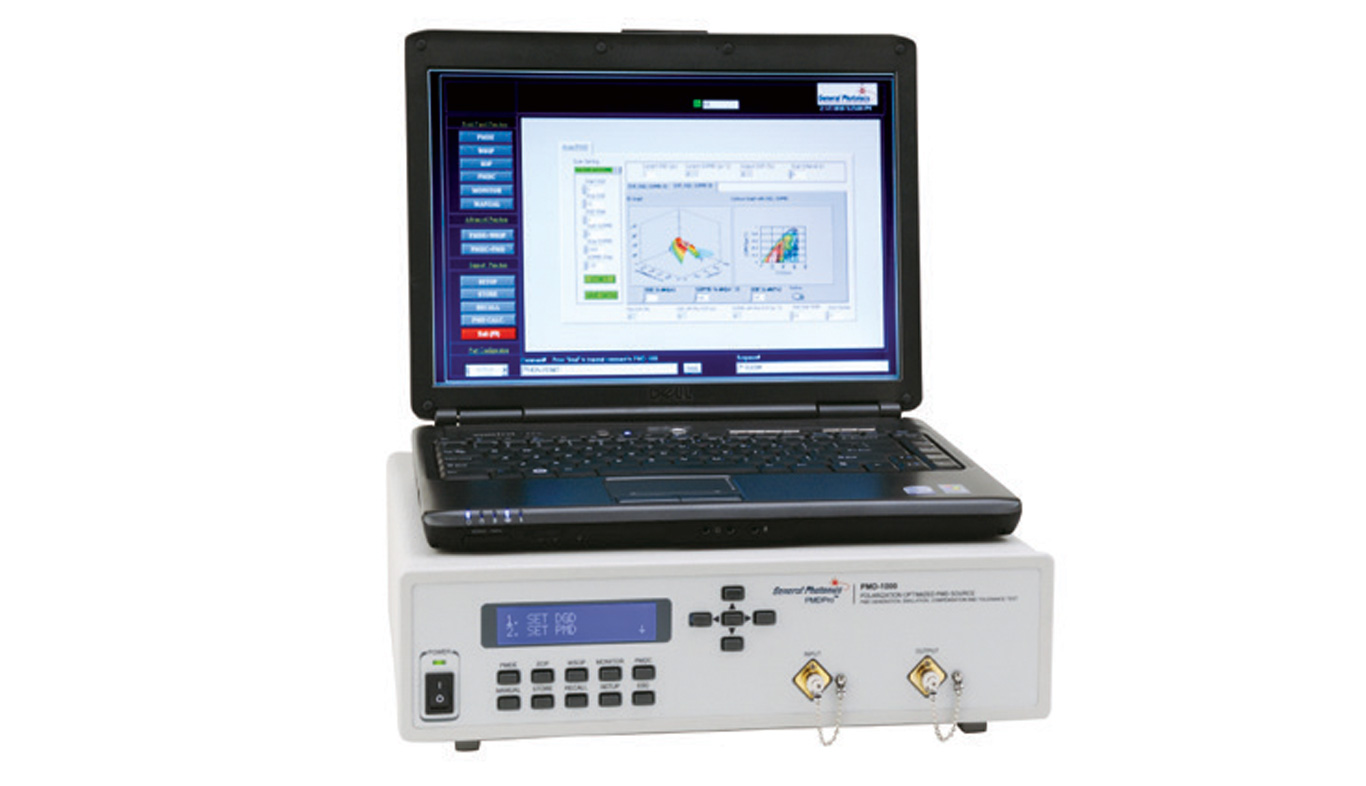

PMD Sources, PMD Emulators and Polarisation Controllers/Scramblers

Polarisation Emulation for Coherent Receiver Test

• Emulate SOP changes as fast as 11 Mrad/s
• Generate 1st and 2nd order PMD in less than 1 ms
• Introduce a stable DGD up to 400 ps continuously over C, L and O bands
• Generate PLD up to 20 dB with 0.1 dB resolution

Enabling 100G/400G Coherent Technology

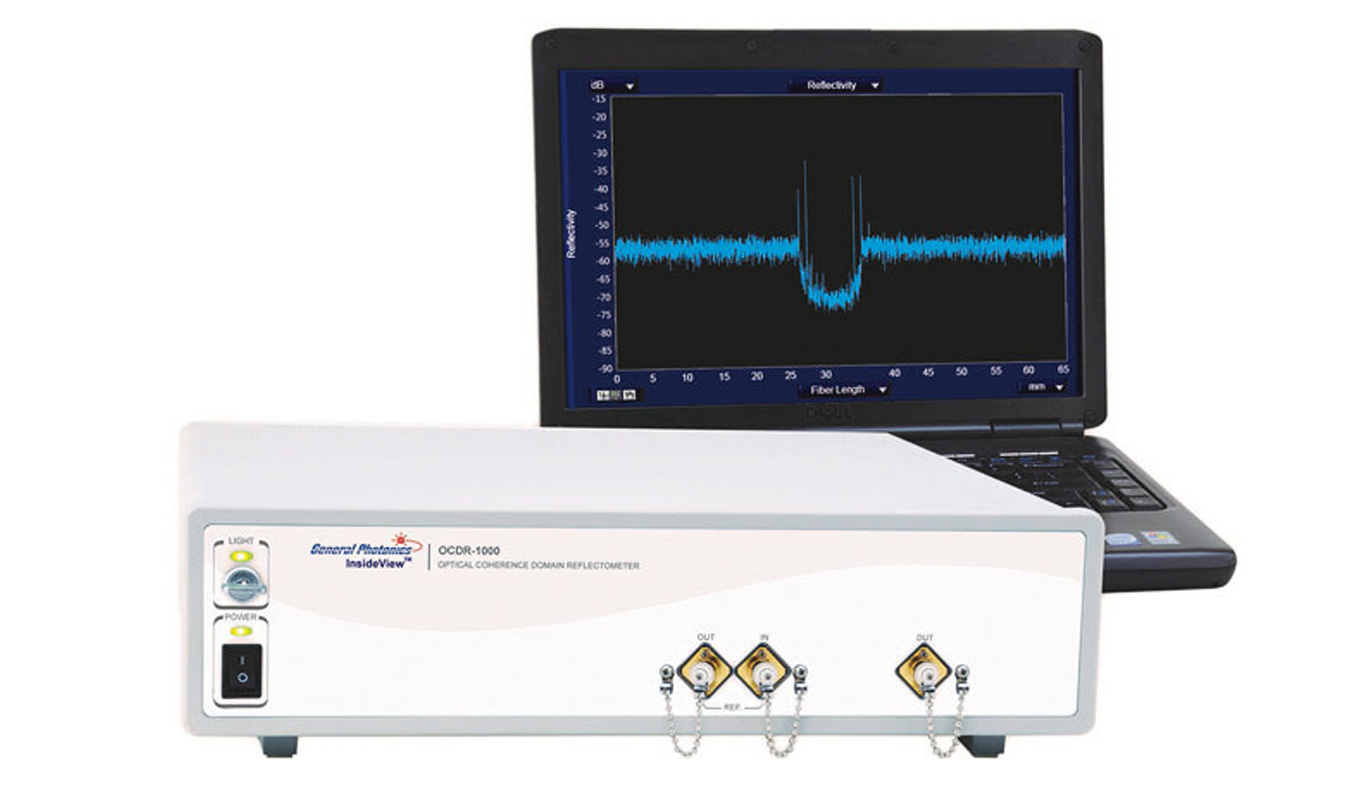

OCDR-1000 Optical Coherence Domain Reflectometer

High-Resolution Reflectometry for Silicon Photonics and PICs

• Measure reflectivity with over 80 dB dynamic range
• High spatial resolution down to 10 μm
• Automatic polarization alignment
• No masking of small reflection peaks by the adjacent large reflection peaks

Accelerating Manufacturing Test

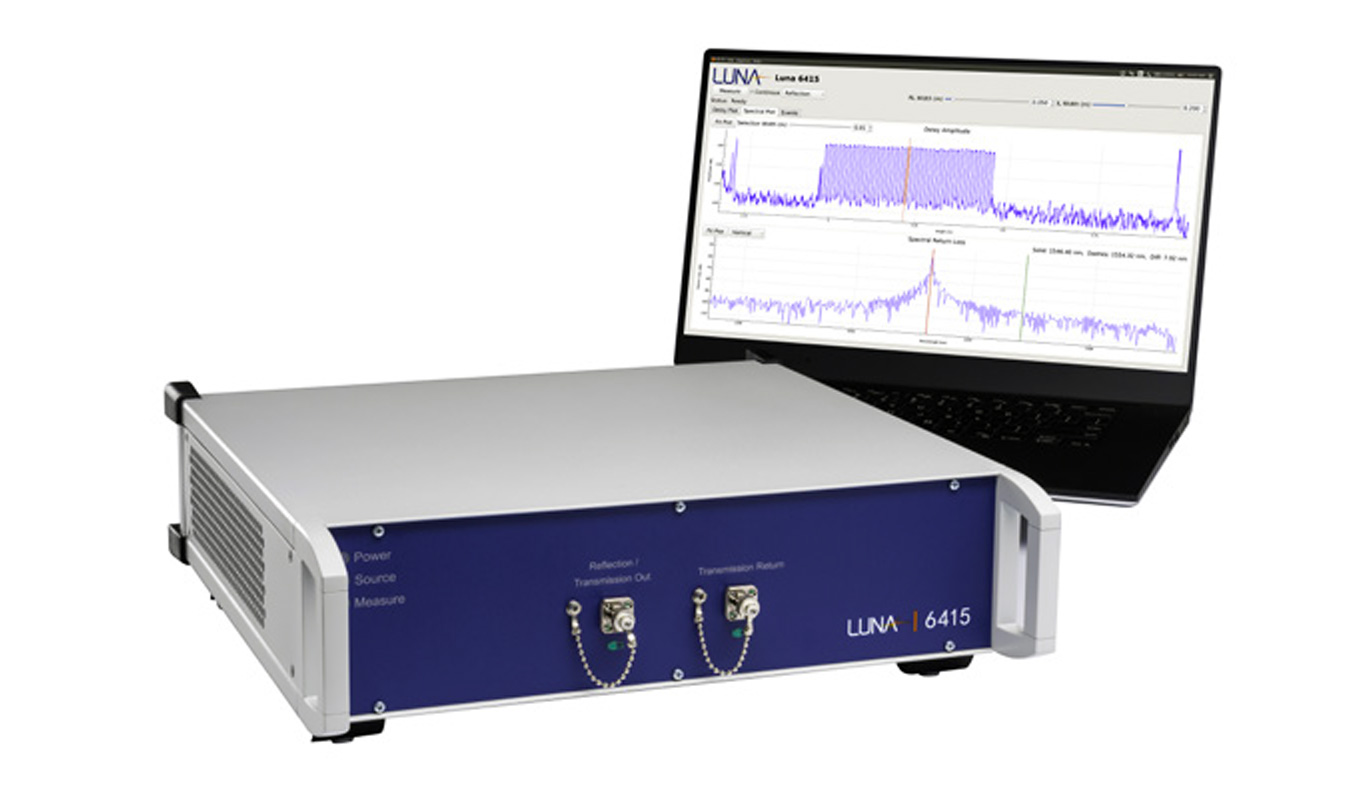

Luna 6415 Lightwave Component Analyser

The Luna 6415 delivers the comprehensive and high-speed testing needed for modern silicon photonics and other photonic integrated circuits (PICs). Featuring an integrated tuneable laser, which removes the need for multiple test systems.

Integrated IL and RL Analysis for Components

• OFDR-based loss analysis -- time domain (spatial) and spectral
• Analyze reflection or transmission
• Distributed optical reflection loss (ORL) versus length – easily measure waveguide scattering
• High spatial resolution (20 µm)
• Fast, streamlined operation

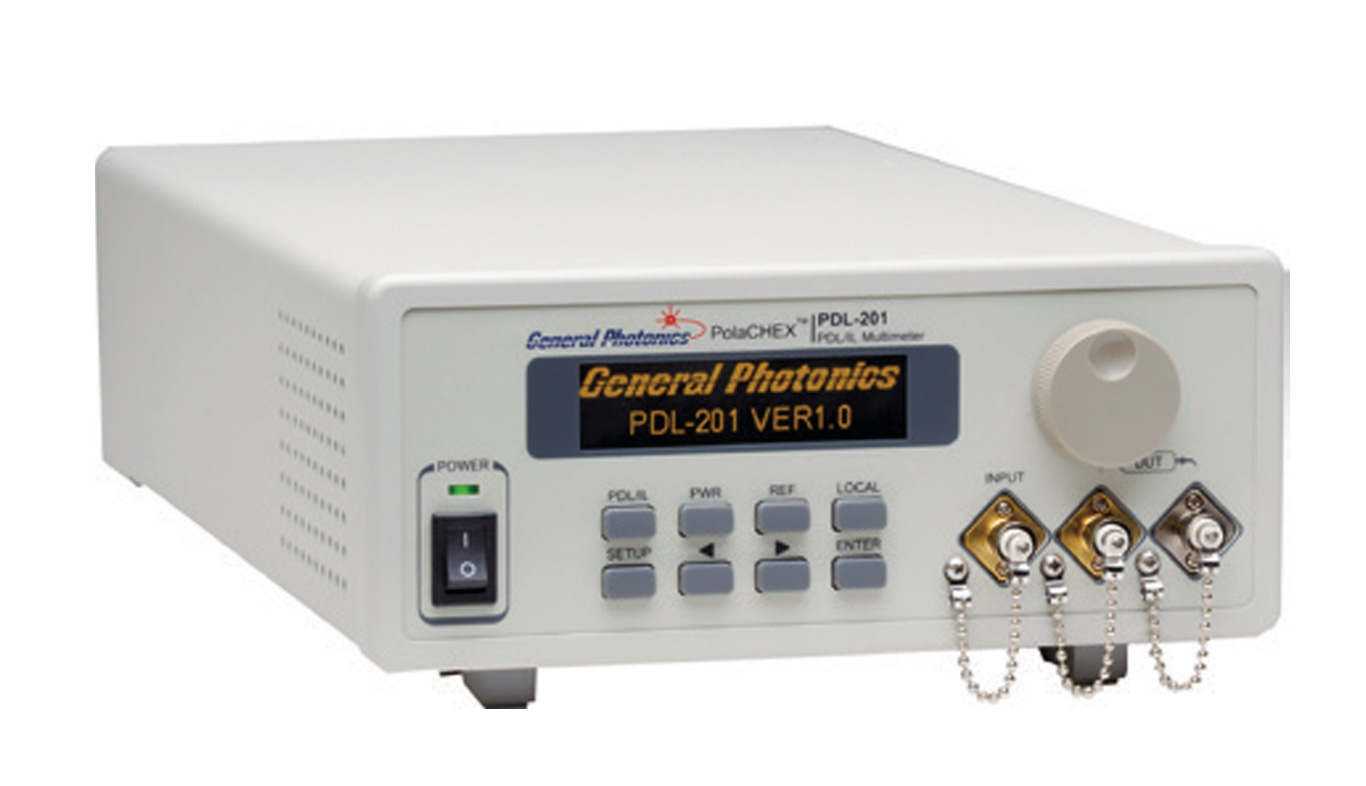

PDL/IL Multimeter, Extinction Ratio Meter, DOP Meter and Polarimeter

Polarisation Measurement and Analysis

• Sampling resolution of 10 μm
• Measure waveguide scattering and loss
• Measure skew with sub-ps resolution

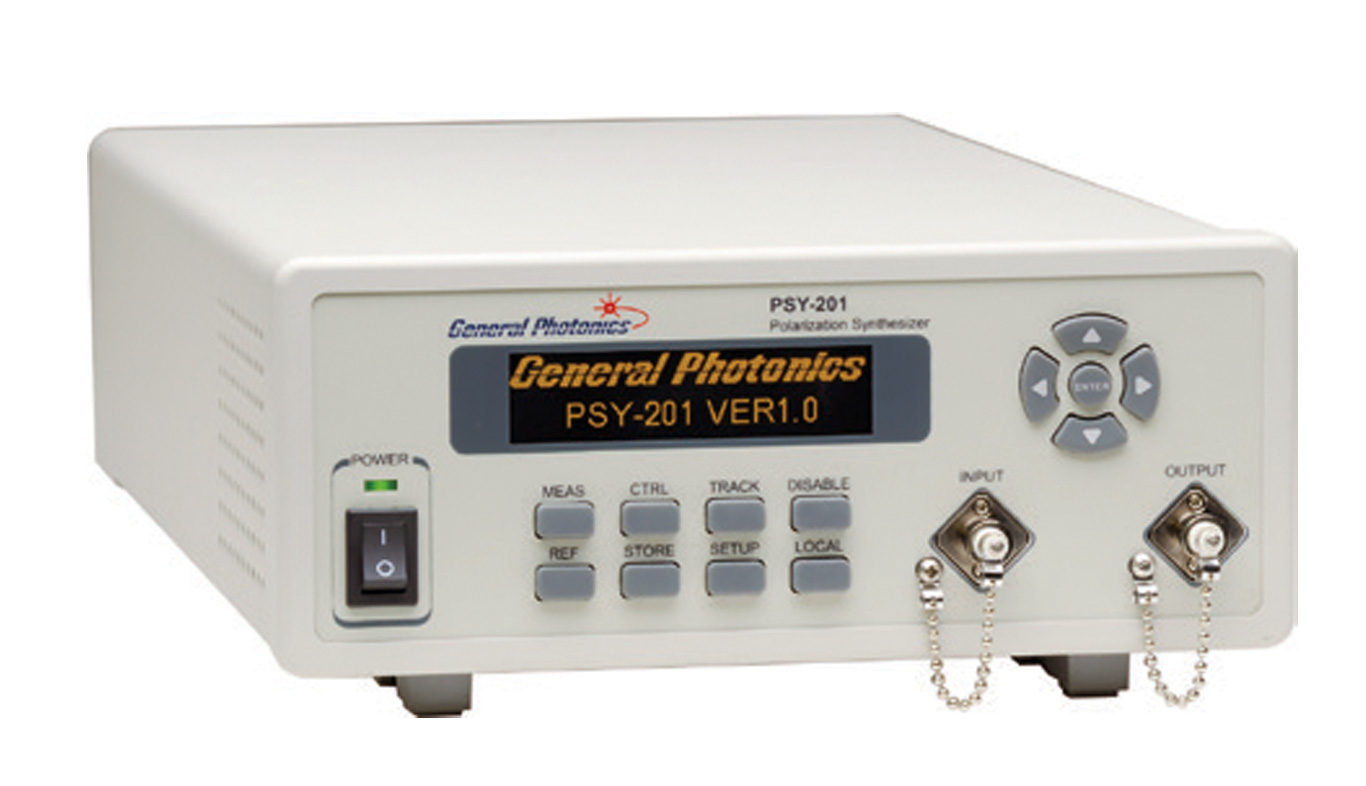

Polarisation Synthesisers, Controllers and Scramblers

Polarisation Control for Production Test

• Control and scramble polarisation without interrupting your signal
• Generate any state of polarisation in ms range
• In-line instantaneous SOP, DOP and power measurement
