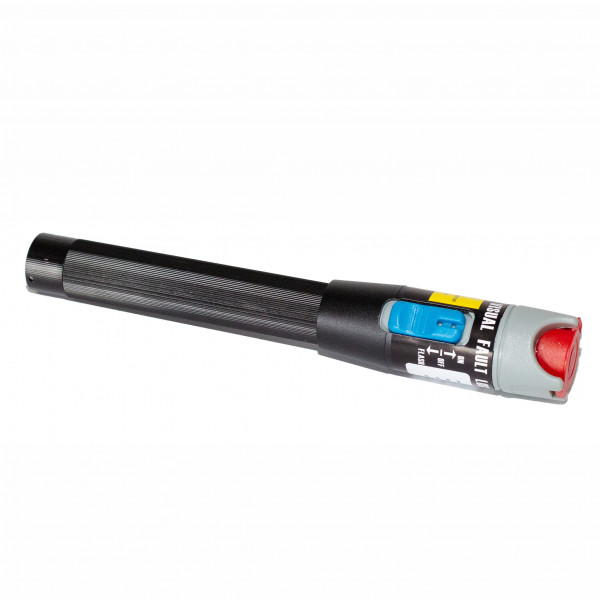

ARAPALA® A-VFL3006 Pen-type Visual Fault Locator - 650nm - 5km Range

SKU #581148
High-efficiency laser tuned for the Australian market, 650nm testing up to 5km. Constant and pulsed wave, 2.5mm universal interface for SM, PC connectors.
AU$89.00 AU$97.90
Request current lead time
Part Number
581148

Features

  • Red laser @650nm
  • Pulsed & CW modes
  • 2.5mm universal connector

An easy to use, pen-type visual fault locator - a must-have for any fibre technician.

This inexpensive tool can reach up to 5km on singlemode PC connectors.

It is fitted with a universal 2.5mm connector input and has both pulsed and constant wave (CW) modes.



Specifications

Dynamic Distance <5km
Wavelength 650nm +/-20nm
Operation Mode Pulsed (2Hz) & CW
Connector 2.5mm
Dimensions (mm) 175 (H) x 26 (W) x 26 (D)
Weight 80g
Storage Temperature -20 ~ +60 deg C, <90% RH
Operating Temperature -10 ~ +50 deg C, <90% RH
Power 2 x AA Alkaline Battery





More Information
Manufacturer ARAPALA®
Product Series ARAPALA® A-VFL Visual Fault Locators
Product Type Visual Fault Locators
Fiber Compatibility Singlemode 9/125μm (OS1, OS2) (ITU-T G.652), Multimode 50/125μm (OM2, OM3, OM4) (ITU-T G.651.1), Multimode 62.5/125μm (OM1) (IEC60793-2-10)
Calibrated Wavelengths 650 nm (visible)
Size / Operation Pocket-sized
Battery Capacity 2 x AA Alkaline Batteries
Case Included Soft case
Connector Interface 2.5 mm Universal (FC/SC/ST)
Source Type Laser
Laser Safety 1 mW Output Power (Class 1M), Complies with IEC 60825-1
Range >5 km multimode
Industry Installers and Contractors (OSP), Telecommunications, Data Centres, Enterprise Networks, Aerospace and Defence, Medical, Optical Equipment Manufacturing (OEM), Research, Broadcast, Mining, Off-shore and Remote, Transportation
Applications Access Construction (Underground, Aerial), Drop Construction (Aerial, Underground), CO (Central Office) LAN and Network, OSP (Out Side Plant), Wideband Transmission Network, NBN: Single Fibre, Fiber Continuity, Polarity & Fault Finding, PON / FTTx (including FTTP (GPON), FTTH, and FTTB), Multimode Fiber Testing (MM), Short Range Fiber Testing (POF, PCS, HCS), Coherent communications, Testing of high speed optical receivers, Brillouin (BODTA/BOTDR), Installers and Telco Contractors, Carriers, Service and Content Providers, Enterprise Networking, Research and Development
Operating Temp. (Min) -10°C
Operating Temp. (Max) 50°C
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
