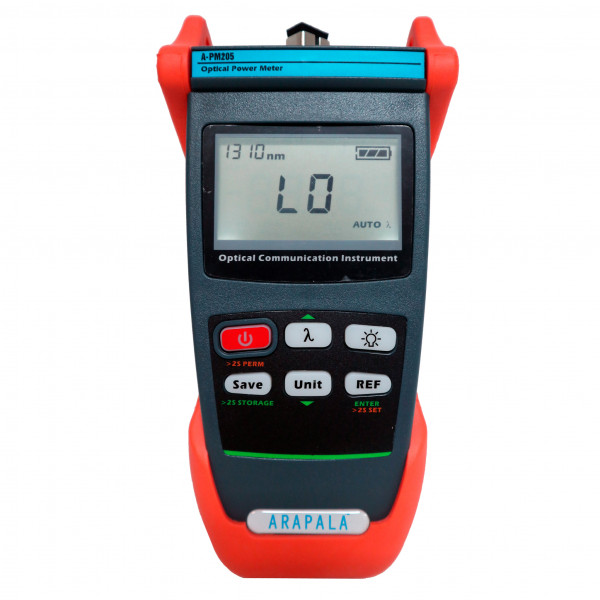

ARAPALA® A-PM205 Power Meter SC with USB port
SKU #581138
InGaAs detector on Power Meter with interchangeable SC connector. Features built-in data storage and Wave ID to auto-identify wavelengths when used with a compatible Light Source.
AU$245.00
AU$269.50
In Stock / Available for Dispatch
Part Number
581138
Features
- InGaAs detector on Power Meter
- Interchangeable adaptors (SC adaptor supplied)
- Suitable for ports and patch cords, SM, MM, UPC and APC connections
- Referencing function
- Data storage built-in
- Wave ID - auto-identifies the wavelength when used with a compatible Light Source
Detects optical power in single-mode and multimode fiber wavelengths (near infrared range 850 nm to 1625 nm).
Specifications
|
Calibrated Wavelength (nm) |
850/1300/1310/1490/1550/1625 |
|
Wavelength Recognition |
Yes |
|
Detector Type |
InGaAs |
|
Accuracy*1 |
± 0.2dB |
|
Resolution |
0.01dB@-60 to +6dBm; 0.1dB@-70 to -60dBm |
|
Linearity |
± 2% |
|
Reference Value |
Yes |
|
Measuring Range |
-70 to +10dBm |
|
Data Storage |
Yes |
|
Auto Power Off |
Yes |
|
Operating Temperature |
-10 to +50°C |
|
Storage Temperature |
-20 to +60°C |
|
Power Supply |
3 x AA battery |
|
Dimensions (mm)/Net Weight |
190L x 90W x 40H; 400g |
1. Valid at CW, 20±3°C, with an FC connector
2. Equivalent to FIBERLERT-125 Live Fiber Detector from Fluke
| Manufacturer | ARAPALA® |
|---|---|
| Product Series | ARAPALA® A-PM Optical Power Meters |
| Product Type | Optical Power Meters |
| Size / Operation | Pocket-sized |
| Device Connectivity via | USB |
| Connector Interface | SC |
| Industry | Installers and Contractors (OSP), Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
| Applications | Telecommunications (Back Bone, Metro & Long-haul), Fiber Continuity, Polarity & Fault Finding, Measuring Power Loss or Relative Power Level in dB |
| Standard Package Contains |
|
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team |
