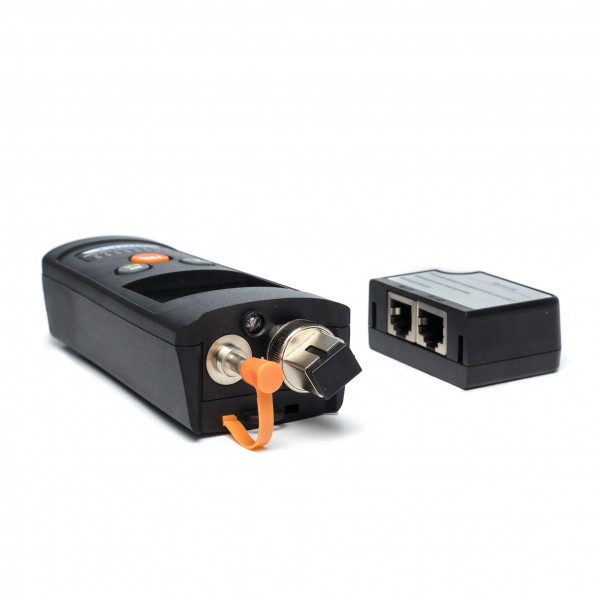

ARAPALA® A-PM203-VFL Multifunction Tester

SKU #581134
The ARAPALA™ Multi-function Tester incorporates power meter, VFL and continuity test functions in one device. It is suited for both copper and fibre cables.
AU$275.00 AU$302.50
In Stock / Available for Dispatch
Part Number
581134

Features

  • Optical Power Meter
  • LED light & SOS glint
  • Visual fault locator
  • Net Test
  • Wide measurement range
  • Suited for both SM and MM applications

Introduction

The ARAPALA™ Multi-function Tester incorporates power meter, VFL and continuity test functions in one device. It is suited for both copper and fibre cables. The device is built to fit into your palm for easy carrying and use. It is perfect for FTTH in-house narrow test conditions to verify the continuity and evaluate fibre link transmission quality.

Specifications

Display Range
1310/1490/1550/1625: +26 ~ -50dBm

850/1300: +26 ~ -30dBm

Accuracy*
±0.2dBm

Calibrated Wavelengths
850/1300/1310/1490/1550/1625nm

Display Resolving Power
0.01dB

Linearity
±0.1dBm

OPM Connector
2.5mm Universal & FC

VFL Connector
2.5mm Universal

LED Light
SOS code output

Net Test
RJ-45 & RJ-11

Automatic Power Off
No operation in 10 minutes (can be override)

Low battery

Battery Life
>100 hours (OPM)

Power Supply
2 x AA battery

Dimension (mm)/Weight
105 x 52 x 34/ 100g

Operating Temperature
-10 ~ +50°C, <90% RH

More Information
Manufacturer ARAPALA®
Product Series ARAPALA® A-PM Optical Power Meters
Product Type Optical Power Meters
Size / Operation Pocket-sized
Case Included Soft case
Device Connectivity via USB
Connector Interface SC
Industry Installers and Contractors (OSP), Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities
Applications Telecommunications (Back Bone, Metro & Long-haul), Fiber Continuity, Polarity & Fault Finding, Measuring Power Loss or Relative Power Level in dB
Standard Package Contains
  • A-PM205 Power Meter
  • Soft case
  • Carry strap
  • Cleaning swabs
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
