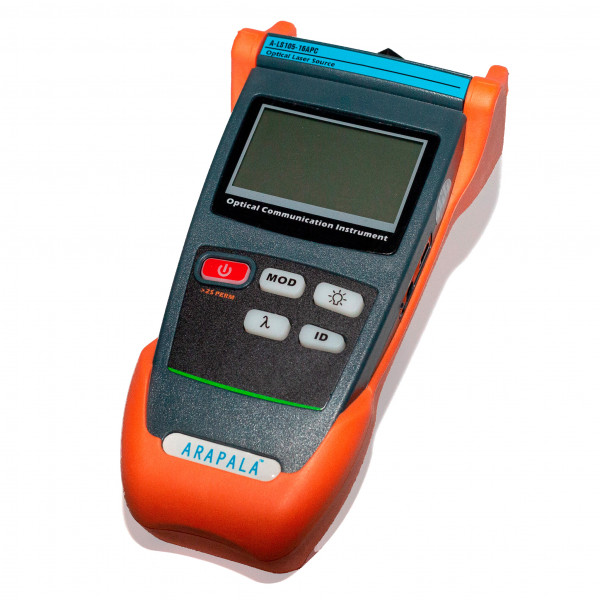

ARAPALA® A-LS105-16APC Light Source SC/APC 1310/1550nm

SKU #581139
High stabilisation 1310/1550nm light source with built-in optic isolator. Wave ID feature - allows compatible power meter to identify the wavelength used.
AU$359.00 AU$394.90
Request current lead time
Part Number
581139

Features

  • High stabilisation, built-in optic isolator

  • 270Hz, 1KHz, 2KHz modulation output

  • Wave ID - allows compatible power meter to identify the wavelength used

  • SC/APC interface



Specifications

 Output Wavelength (nm)

1310/1550nm

Stabilization

± 0.05dB / 1 hour

± 0.1dB / 8 hours

Spectral Width

10nm

Output Frequency (Hz)

270, 1k, 2k

Output Power

˃ -10dBm

Mode

Continuous Wave (CW) or Modulated

Auto Power Off

Yes

Backlight

Yes

Operating Temperature

-10 to +50°C

Storage Temperature

-20 to +60°C

Power Supply

3 x AA battery

Dimensions (mm)/Net Weight

190L x 90W x 40H; 480g

More Information
Manufacturer ARAPALA®
Product Series ARAPALA® A-LS Light Sources
Product Type Light Sources
Size / Operation Pocket-sized
Case Included Soft case
Connector Interface SC APC
Source Type Laser
Laser Safety 1 mW Output Power (Class 1M), Complies with IEC 60825-1
Industry Installers and Contractors (OSP), Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities
Applications Telecommunications (Back Bone, Metro & Long-haul), Fiber Continuity, Polarity & Fault Finding, Attenuation and Insertion Loss Testing
Standard Package Contains
  • A-LS105 Optical Laser Light Source
  • Soft case
  • Carry strap
  • Cleaning swabs
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
