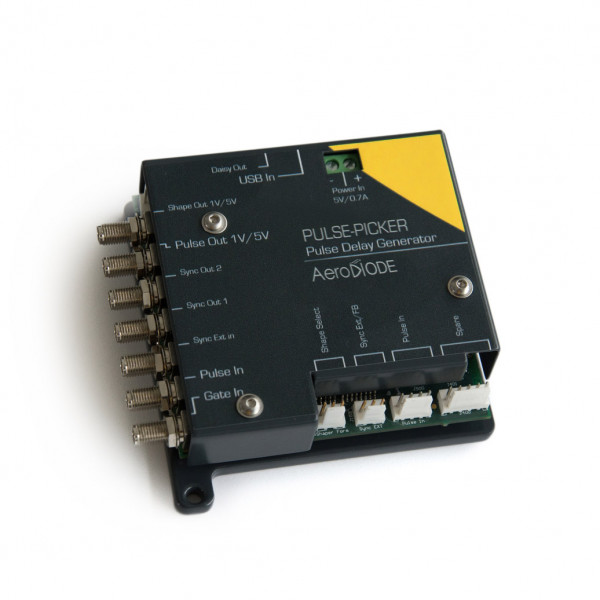

Pulse Picker is a synchronisation tool to drive external modulating devices such as EOM, AOM, SOA etc. Designed to work with low level electrical or optical input pulse power.
Request Quote
Request current lead time
Part Number
Pulse-picker

Introduction

This Pulse Picker board includes a software adjustable input voltage level threshold and an (optional) photodiode. This board also includes a special AWG function synchronized with the input signal to perform some Burst Shaping of mode-locked lasers.



Key features

  • 1V/3.3V/5V output voltage
  • Adjustable threshold level signal detection down to 30 mV (5 mV optional)
  • <80 ps RMS jitter
  • Optional board-mounted photodiode input
  • 2 ns output “pulse/door” resolution
  • Max Input frequency : 200 MHz
  • Max output frequency : 20 MHz
  • 3 modes : Divider (low Jitter), Synchro (external) and Burst shaper
  • USB interface with many Libraries and GUI



Details

pulse picker divider mode
Example of a timing diagram in divider mode (division factor from 1 to 10^9 ) – This configuration is one of the 3 possible pulse-picking modes. It allows very low jitter pulse picking.



The GUI software lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.). Complex systems, such as fiber lasers, can be quickly developed on this module platform.

This pulse-picker board is part of our “Multiboard” laser driver and synchronization modules family. It works perfectly well to synchronize our Fiber-Coupled Acousto Optic Modulators.  All the using cases are explained in a well detailed Pulse picker Operating_manual and a specific application note.



This  Pulse Picker  works alone or in series with other products in our range like:
