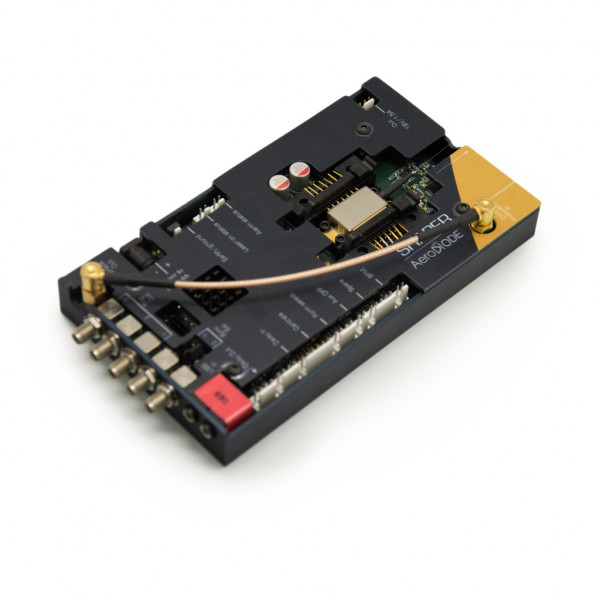

AeroDIODE High-speed Laser Diode Driver: User-design Nanosecond Pulse Shape

SKU #Shaper
This high speed laser diode driver can generate any programmable pulse shape with down to 500 picosecond and 48 dB dynamic range. Features gain switch peak suppression and 3 synchronised pulse delay generators.
Request Quote
Request current lead time
Part Number
Shaper

Introduction

This high speed driver with integrated TEC controller delivers precision nanosecond pulses which are generated internally by an on-board AWG (Arbitrary Waveform Generator). It is compatible with most of the laser diode form factors (Butterfly, TO etc.). Direct laser diode modulation is an alternative to EOM or AOM external modulation. See our fiber modulator basics tutorial for more information.



Key features

  • Direct modulation of nanosecond laser pulses with any shape
  • Built-in pulse AWG with internal or remote triggering
  • 0 to 1.6 A output current with 16 bit/48 dB/30 μA resolution
  • Integrated TEC controller with over temperature protection
  • A special thermal interface is included which do not require any thermal grease
  • Special mode for laser diode “gain switch peak” suppression
  • Two versions for either direct modulation or external modulation (see spec table and pictures)
  • 3 Integrated Pulse Delay Generators
  • GUI software and several libraries software integration (LabVIEW, DLLs, Hexa, Python)



Applications

Applications of this driver include high energy laser seeding, LIDAR testing, etc.



GUI & Libraries

The GUI software lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python)

All AeroDIODE products can be connected together with a single GUI interface which consolidates all module functions. This allows the users to save a lot of time.

This high speed laser diode driver  works alone or in series with other products in the AeroDIODE range like:

DFB or Bragg-based laser diodes such as lumentum or 3SP are perfectly well controlled.

Read our Tutorials to get a good overview of the capabilities of this high speed laser diode driver:

More Information
Manufacturer AeroDIODE
Product Series AeroDIODE Laser Diode Drivers
Product Type Laser Diode Drivers
Size / Operation Benchtop
Device Connectivity via USB
Industry Aerospace and Defence, Fiber Optic Lasers, Photonics, Research
Applications Laser Systems, Integration of Instruments with Photonics and System Simulation Tools, Simulating Amplifiers and Lasers (EDFA, SOA, Raman, Hybrid, GFF Optimisation, Fiber Lasers), VCSEL Lasers Passive Design
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:AeroDIODE High-speed Laser Diode Driver: User-design Nanosecond Pulse Shape
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
In This Series
  1. AeroDIODE Pulsed Laser Diode Driver & TEC Control
    AeroDIODE Pulsed Laser Diode Driver & TEC Control
    Request Quote

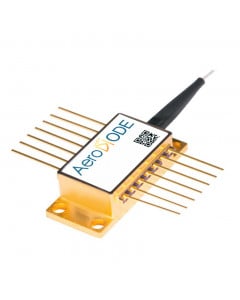

  2. AeroDIODE SLD Super-luminescent SLED Diode
    AeroDIODE SLD Super-luminescent SLED Diode
    Request Quote

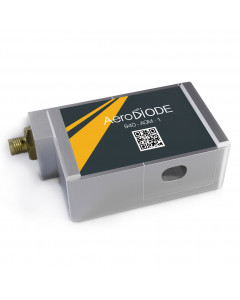

  3. AeroDIODE AOM Acousto Optic Modulator – Free space version
    AeroDIODE AOM Acousto Optic Modulator – Free space version
    Request Quote
  4. AeroDIODE CCS-CW Ultra Low Noise Laser Diode Drivers
    AeroDIODE CCS-CW Ultra Low Noise Laser Diode Drivers
    Request Quote
  5. AeroDIODE SOA Pulsed Driver with Nanosecond Speed
    AeroDIODE SOA Pulsed Driver with Nanosecond Speed
    Request Quote
Related Products
  1. AeroDIODE SOA Pulsed Driver with Nanosecond Speed
    AeroDIODE SOA Pulsed Driver with Nanosecond Speed
    Request Quote
  2. AeroDIODE 1650LD - 1650nm Laser Diode
    AeroDIODE 1650LD - 1650nm Laser Diode
    Request Quote

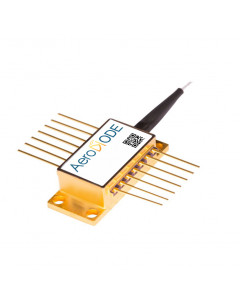

  3. AeroDIODE 1310LD - 1310nm Laser Diode
    AeroDIODE 1310LD - 1310nm Laser Diode
    Request Quote
  4. AeroDIODE 808LD - 808nm Laser Diode
    AeroDIODE 808LD - 808nm Laser Diode
    Request Quote

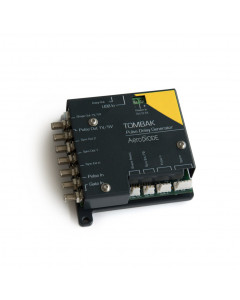

  5. AeroDIODE Tombak Pulse Delay Generator
