AeroDIODE CCS-CW Ultra Low Noise Laser Diode Drivers

SKU #CCS-LN/TDLAS
This low noise laser diode is comparable with industry lowest noise battery-based drivers. This makes it the most compact low noise laser diode driver to achieve such performance.
Request Quote
Request current lead time
Part Number
CCS-LN/TDLAS

Introduction

This low noise laser diode driver with integrated TEC controller delivers current which can be modulated internally or externally. It is compatible with any butterfly pinning (Type 1, Type 2, Type 2 Bias-T etc.). It is USB-controlled and contains several libraries for system integration (LabVIEW VIs, DLLs, Hexa, Python etc.).



Key features

  • Available for butterfly laser diodes and other form factors (Type 1 or Type 2 pinning)
  • Noise level comparable with industry lowest noise battery-based drivers
  • It includes an integrated TEC controller.
  • A special thermal interface is included which do not require any thermal grease.
  • Output Current : 0.00 mA – 1500.00 mA (special 2500 mA version available – contact us)
  • Current set-point resolution (@ 100 mA set-point): 0.025 mA
  • Temperature stability (typ) : <0.001°C
  • Internal and external modulation up to 100 kHz (500 kHz prov.)
  • Output Voltage Maximum: 0 – 24 V
  • USB, manual & analog (0 – 5 V) power adjustment



Applications

Applications of this low noise laser diode driver includes fiber laser seeding, gas sensing, TDLAS, cold atoms R&D  etc.



GUI & Libraries

The GUI software lets the user have total control of all module functions. It includes several libraries for software integration ((LabVIEW VIs, DLLs, Hexa).

This low noise laser diode driver  works alone or in series with other products in AeroDiode range:

Complex systems, such as fiber lasers, can be quickly developed on this module platform.

Butterfly Laser diodes such as our narrow linewidth 1550 nm laser diode or low noise external cavity based RIO are perfectly well controlled.

More Information
Manufacturer AeroDIODE
Product Series AeroDIODE Laser Diode Drivers
Product Type Laser Diode Drivers
Size / Operation Benchtop
Device Connectivity via USB
Industry Aerospace and Defence, Fiber Optic Lasers, Photonics, Research
Applications Laser Systems, Integration of Instruments with Photonics and System Simulation Tools, Simulating Amplifiers and Lasers (EDFA, SOA, Raman, Hybrid, GFF Optimisation, Fiber Lasers), VCSEL Lasers Passive Design
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:AeroDIODE CCS-CW Ultra Low Noise Laser Diode Drivers
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Brochures and Specifications
In This Series
  1. AeroDIODE High-speed Laser Diode Driver: User-design Nanosecond Pulse Shape
    AeroDIODE High-speed Laser Diode Driver: User-design Nanosecond Pulse Shape
    Request Quote
  2. AeroDIODE Pulsed Laser Diode Driver & TEC Control
    AeroDIODE Pulsed Laser Diode Driver & TEC Control
    Request Quote
  3. AeroDIODE SLD Super-luminescent SLED Diode
    AeroDIODE SLD Super-luminescent SLED Diode
    Request Quote
  4. AeroDIODE AOM Acousto Optic Modulator – Free space version
    AeroDIODE AOM Acousto Optic Modulator – Free space version
    Request Quote
  5. AeroDIODE SOA Pulsed Driver with Nanosecond Speed
    AeroDIODE SOA Pulsed Driver with Nanosecond Speed
    Request Quote
Related Products

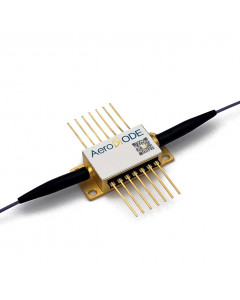

  1. AeroDIODE SOA Semiconductor Optical Amplifier
