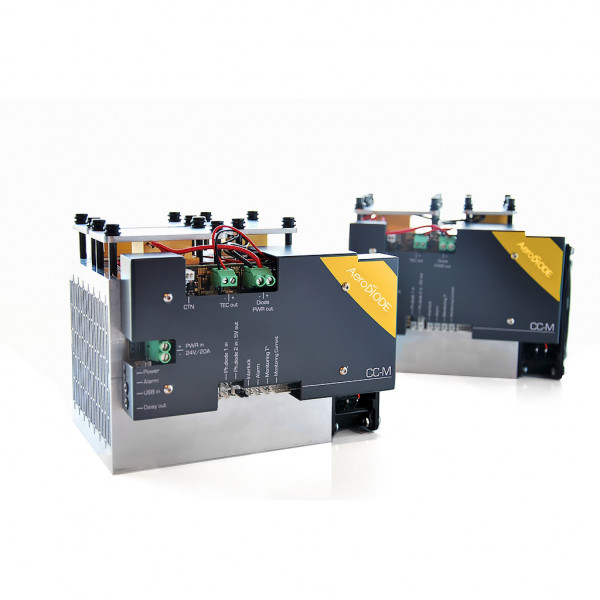

AeroDIODE CC-M High-Power Laser Diode Driver 36V/21A

SKU #CCM
This High Power Laser Diode driver is compatible with all multimode fiber coupled multi-emitter laser diodes from Nlight , Lumentum , IPG , Dilas etc.
Request Quote
Request current lead time
Part Number
CCM

Introduction

It is a low noise complete solution with 36 V-21 A laser driver, TEC controller and air-cooling fan regulation. TEC and CTN elements are provided and compatible for single or multiple laser diode driving. This high power laser diode driver is generally used to deliver CW current. It is also able to deliver pulses which are generated internally by an on-board pulse generator, or on-demand from an external analog modulation signal. It is the most compact device with such performances and this makes it an ideal tool for OEM integration into your product.



Key features

  • Ultra-stable laser power for short and long term operations
  • Up to 200 W CW power with new generation laser diodes
  • Max modulation frequency : 100 kHz
  • This product can work in both CW or Pulsed mode.
  • Highly efficient (> 80 % from plug)
  • Can be configured for several laser diodes mounted in series
  • Automatic fan regulation for quiet operation at low power
  • Photodiode power monitoring input
  • ACC (Automatic Current Control) and APC (Automatic Power Control) modes
  • Smart control (USB interface & GUI)
  • Many available libraries (LabVIEW, DLLs, Hexa, Python)



Applications

Applications of this high power laser diode driver include fiber laser pumping, nondestructive control etc. CCM high power laser diode driver is part of our “Multiboard” laser driver and synchronization module family. These are are ideal solutions to help R&D teams reach their best performance by facilitating fast and cost effective development of integrated solutions. The GUI software lets the user have total control of all module functions.



GUI & Libraries

It works alone or in series with other products in the AeroDIODE range like:

Complex systems, such as fiber lasers, can be quickly developed on this module platform. It can be easily connected to our double channel fiber laser diode driver platform which allows to create nearly any type of fiber laser.

See our Tutorials to get  an overview of its capabilities:



AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the well known ALPhANOV technology center for over 12 years. AeroDIODE  is a member of EPIC European industry association and “Route des Lasers” cluster.

More Information
Manufacturer AeroDIODE
Product Series AeroDIODE Laser Diode Drivers
Product Type Laser Diode Drivers
Size / Operation Benchtop
Device Connectivity via USB
Industry Aerospace and Defence, Fiber Optic Lasers, Photonics, Research
Applications Laser Systems, Integration of Instruments with Photonics and System Simulation Tools, Simulating Amplifiers and Lasers (EDFA, SOA, Raman, Hybrid, GFF Optimisation, Fiber Lasers), VCSEL Lasers Passive Design
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
