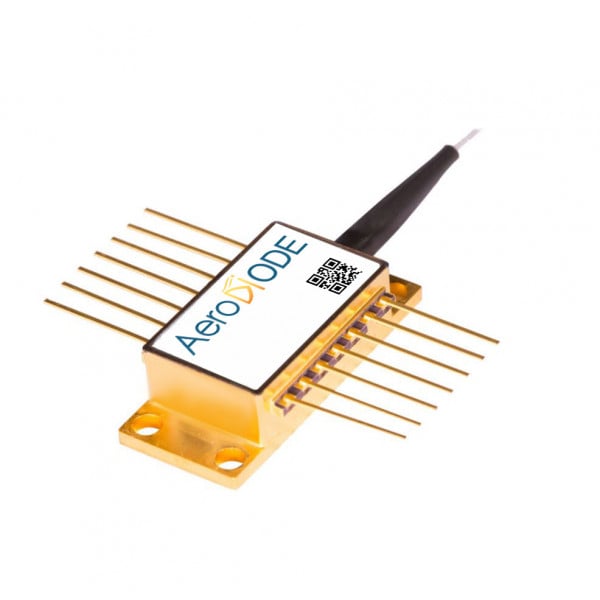

AeroDIODE 1550LD - 1550nm Laser Diode

SKU #1550LD
Fiber-coupled 1550nm laser diodes are offered as stock items, or with CW, or Pulsed Laser Diode Drivers. 5 DFB models are single-frequency up to 120 mW. Compatible with AeroDIODE high speed nanosecond pulsed drivers. Optimal for sensing applications like LIDAR Time-of-Flight, FMCW or 3D-sensing.
Request Quote
Request current lead time
Part Number
1550LD

Introduction

These singlemode 1550 nm laser diodes can reach high power in nanosecond pulse regime up to 500 mW. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 1550nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. It becomes easy to generate complex burst shapes.



Key features

  • Wavelength : 1550 nm or select the wavelength you need between 1260 and 1650 nm (Most 1310, 1550 and 1650 nm models are in stock)
  • 6 models for each wavelength : 5 singlefrequency DFB models (2 models with ultra-narrow linewidth) and 1 Bragg grating based with >400 mW CW power
  • All versions are fiber-coupled and all DFB versions include an isolator (special versions without isolator are also available on demand)
  • Up to 400 mW CW  (this high power model only available from up to 1500 nm)
  • Up to 600 mW peak power
  • Down to 1 ns pulse width
  • Low noise CW emission
  • Butterfly Type-1 pinning or please ask for other pinning
  • Scroll down to see all configurations, prices and lead times



Models

These 1550nm laser diodes combined with our high end flexible pulsed laser diode driver are an ideal tool for LIDAR or 3D-sensing R&D teams. TOF (Time-Of-Flight) experiments can be setup very rapidly with these complete flexible solutions.



Laser Diode model Datasheet Power (CW) Test report Technology Center Wavelength Typical linewidth* Power (Pulse – typical) Current/ Voltage (typ) Form factor Output fiber core
Model 1 Datasheet 10 mW   DFB single-frequency 1550 nm or choose any wavelength from 1270 to 1655 nm (see the table in the picture Tab) <2 MHz 15 mW  70 mA/1.6 V 14 pin butterfly-type 1 with isolator 9 µm singlemode Corning SMF28 or PM15-U25D or equivalent
Model 2 Datasheet 40 mW RIN and linewidth test report <200 kHz 60 mW 300 mA/1.6 V
Model 3 Datasheet 100 mW   1550 nm 150 mW 650 mA/1.8 V
Model 4 Datasheet 400 mW   Bagg grating based- singlemode Choose any wavelength from 1420 to 1500 nm < 2 nm 600 mW 1500 mA/2.0 V 14 pin butterfly-type 1
Model 5 Datasheet 20 mW (special ultra narrow linewidth) RIN and linewidth test report DFB – single-frequency with special narrow linewidth 1550 nm < 50 kHz 30 mW 170 mA/1.6 V 14 pin butterfly-type 1 with isolator
Model 6 Datasheet 40 mW (special ultra narrow linewidth) RIN and linewidth test report < 50 kHz 60 mW 350 mA/1.6 V



*Scroll down to see all configurations, prices and lead times. For best linewidth performances, an ultra-low noise driver is required. for example this one: low noise laser diode driver

The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)

These 1550 nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models):

Combined with our pulse delay generator called “TOMBAK”, it becomes easy to create a complete bench simulating any type of structured multiple Burst in the nanosecond range (see some examples in the pictures window).

See AeroDIODE's detailed tutorials for more information about the use of these laser diodes:

AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is an ISO-9001-2015 company and a member of EPIC European industry association and “Route des Lasers” cluster.

More Information
Manufacturer AeroDIODE
Product Series AeroDIODE Laser Diode Sources
Product Type Laser Diode Sources
Size / Operation Benchtop
Device Connectivity via USB
Industry Aerospace and Defence, Fiber Optic Lasers, Photonics, Research
Applications Laser Systems, Integration of Instruments with Photonics and System Simulation Tools, Simulating Amplifiers and Lasers (EDFA, SOA, Raman, Hybrid, GFF Optimisation, Fiber Lasers), VCSEL Lasers Passive Design
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
