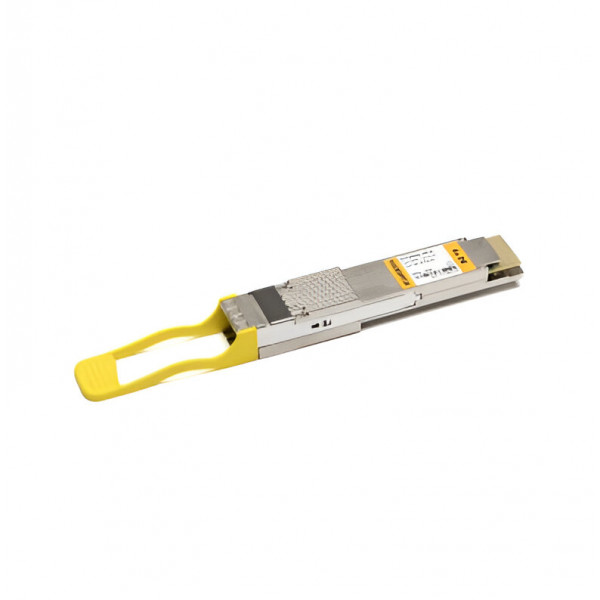

FLEXOPTIX 4x 100G QSFP-DD DR4 with dual CDR | 500 m, 4x λ1310 nm, SN-Duplex, Singlemode
SKU #D.134HG.05.N
- Universal QSFP-DD Transceiver
- Use FLEXBOX in combination with FLEXSOX to configure to almost any vendor
- For 100GBASE-DR4 Ethernet links
- Integrated Clock-Data-Recovery (CDR)
- PAM4 modulated signal
- Supported Data Rates: 4x 106.25 Gbit/s
- Up to 500 m via Singlemode OS2
- 4x SN-Duplex Connector
- Need help selecting the right option for your vendor / hardware?
Request compatibility
AU$1,767.35
AU$1,944.09
215 In-stock / Dispatched from Germany (7 days)
Part Number
D.134HG.05.N
| Manufacturer | FLEXOPTIX |
|---|---|
| Product Series | FLEXOPTIX Universal Transceivers |
| Product Type | Transceivers |
| Form Factor | QSFP-DD |
| Connector | 4x SN-Duplex UPC |
| Distance | 500 m |
| Interface | Singlemode |
| Power Budget (dB) | 14.8 dB |
| Extinction Ratio | 3.5 dB |
| Bandwidth Range | 4x 106.25 Gbit/s |
| Laser | EML |
| Receiver Type | PIN |
| Wavelength RX (Typical) | 4x 1310 nm |
| Wavelength TX (Range) | 1304.5 - 1317.5 nm |
| Wavelength TX (Typical) | 4x 1310 nm |
| Temperature Range | 0°C - 70°C |
| Type of DDM / DOM | Internally calibrated |
| Networking Protocol | 400G Ethernet, 4x 100G Ethernet, 100G Ethernet |
| Type | 4x DR4 |
| Operating Temp. (Min) | 0°C |
| Operating Temp. (Max) | 70°C |
| Vendor Switch Coding | MSA Standard |
| CDR | TX and RX |
| Inbuilt FEC | Yes |
| Bandwidth Per Lane | 106.25 Gbit/s |
| Receiver Min/Max | -5.9 dBm / 4 dBm (overload) @100G |
| SGMII | No |
| Transmit Min/Max | -2.9 dBm / 4 dBm |
| Power Consumption | 8 W |
| Lane Count | 4x (Tx/Rx) |
| Modulation | EML |
| Industry | Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks |
| Applications | Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking |
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team, Engineered to FLEXOPTIX exacting standards You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires |
Write Your Own Review
Customer Questions
In This Series
-
FLEXOPTIX 100G QSFP28 OTU4 ER4 with dual CDR | 40 km, λ1296-1309 nm, LC-Duplex, SinglemodeAU$5,146.61 AU$5,661.27
-

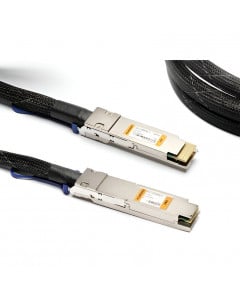

FLEXOPTIX 400G Finned-Top OSFP to QSFP-DD DAC | Passive Copper Cable, 0.5 - 3 mAs low as AU$501.00 AU$551.10
-

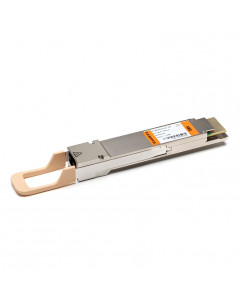

FLEXOPTIX 400G QSFP-DD SR8 with dual CDR | 100 m, 8x λ850 nm, MTP/MPO, MultimodeAU$821.70 AU$903.87
-
Related Products
-
FLEXOPTIX 200G QSFP-DD ER4 with dual CDR | 40 km, λ1296-1309 nm, LC-Duplex, SinglemodeAU$3,987.55 AU$4,386.31
-
-
-

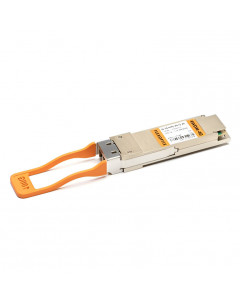

FLEXOPTIX 100G QSFP28 4WDM-40 with dual CDR | 40 km, λ1296-1309 nm, LC-Duplex, SinglemodeAU$4,181.12 AU$4,599.23
