OST 4T1M SF MUX 4X T1/E1 +10/100 SC/SM 1310nm/20KMSA Univ AC MNG
SKU #8823N-1-B

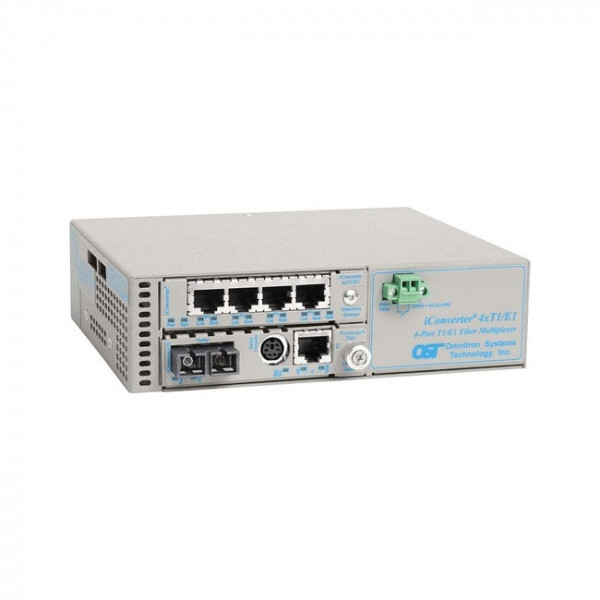

Omnitron iConverter MUX/M Ethernet + 4xT1/E1 Fibre Multiplexer SC Single-Mode 12km - 4 x T1/E1 (RJ-48) + 1 x 10/100/1000BASE-T to 1 x SC Single-Mode, Univ. AC Powered, Lifetime Warranty
Typically Ships in 15 to 20 Business Days
Part Number
8823N-1-B
iConverter MUX/M Ethernet + 4xT1/E1 Fibre Multiplexer SC Single-Mode 12km - 4 x T1/E1 (RJ-48) + 1 x 10/100/1000BASE-T to 1 x SC Single-Mode, Univ. AC Powered, Lifetime Warranty
The iConverter 4xT1/E1 MUX/M multiplexes up to four T1/E1s and Ethernet onto a fibre optic transport link, and features remotely managed testing and configuration capabilities.The iConverter 4xT1/E1 MUX/M operates in a back-to-back configuration, with one multiplexer at each end of the fibre transport link. The 4xT1/E1 MUX/M can be used in applications where services from legacy TDM equipment require transport across long distances that exceed the reach or capacity of copper. This includes applications such as T1/E1 extension, mobile backhaul and building-to-building PBX connectivity, making it ideal for Enterprise, Telecom and Utility industries.
Power Description
| Input Voltage | 240 V AC |
| 240 V AC |
Miscellaneous
| Additional Information |
Input Voltage: |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
Interfaces/Ports
| Number of Network (RJ-45) Ports | 1 |
| Management Port | Yes |
| Number of Data Channels | 4 |
| Number of SC Ports | 1 |
| Number of RJ-48 Ports | 4 |
| SC Port Type | Duplex |
Physical Characteristics
| Weight (Approximate) | 2.50 lb |
| Form Factor | Wall Mountable |
| Rack-mountable | |
| Desktop | |
| External | |
| Height | 1.9" |
| Width | 6.7" |
| Depth | 5.5" |
General Information
| Product Type | Data Multiplexer |
| Manufacturer Part Number | 8823N-1-B |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 8823N-1-x |
| Product Name | iConverter MUX/M SC Single-Mode 12km Univ. AC Powered |
| Product Line | iConverter |
| Product Series | T1/E1 MUX/M |
| Brand Name | Omnitron Systems |
Media & Performance
| Maximum Distance Supported | 7.46 Mile |
| Connectivity Technology | Wired |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Ethernet Technology | Fast Ethernet |
| Gigabit Ethernet | |
| Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fibre | |
| Fibre Mode Supported | Single-mode |
| Network Technology Supported | 10/100/1000Base-T |
| T1/E1 | |
| Fibre Optic Wavelength | 1310 nm |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975023437 |
| Product Series | Omnitron Systems iConverter Multi-Service Platform |
| Product Type | Add-Drop Multiplexer (ADM) |
| Industry | Service and Content Providers, Carriers, Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
| Applications | HetNet (Heterogeneous Network), Indoor/Outdoor DAS (Distributed Antenna Systems), Network Infrastructure, Network Core and Edge |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
