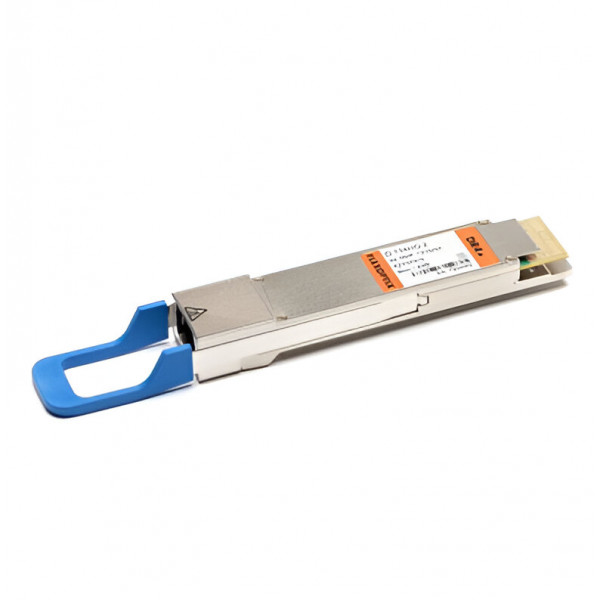

FLEXOPTIX 400G QSFP-DD DR4+ with dual CDR | 2 km, 4x λ1310 nm, MTP/MPO-8/12 APC, Singlemode

Be the first to review this product

SKU #D.134HG.2

Universal QSFP-DD Transceiver
Use FLEXBOX in combination with FLEXSOX to configure to almost any vendor
For 400GBASE-DR4+ Ethernet links
Integrated Clock-Data-Recovery (CDR)
PAM4 modulated signal
Supported Data Rates: 425 Gbit/s (4x 106.25 Gbit/s)
Up to 2 km via Singlemode OS2
Use ONLY with MTP/MPO-8/12 APC connectors

Need help selecting the right option for your vendor / hardware?
Request compatibility

AU$1,289.16 AU$1,418.08

86 In-stock / Dispatched from Germany (7 days)

Part Number

D.134HG.2

Choose Vendor Compatibility

More Information

Reviews

Product Questions

More Information
Manufacturer	FLEXOPTIX
Product Series	FLEXOPTIX Universal Transceivers
Product Type	Transceivers
Form Factor	QSFP-DD
Connector	MTP/MPO-8/12 APC
Distance	2 km
Interface	DR4+
Power Budget (dB)	4 dB
Transmit and Dispersion Penalty	3.4 dB
Extinction Ratio	3.4 dB
Bandwidth Range	425 Gbit/s
Laser	EML
Receiver Type	PIN
Wavelength RX (Typical)	4x 1310 nm
Wavelength TX (Range)	1304.5 - 1317.5 nm
Wavelength TX (Typical)	4x 1310 nm
Temperature Range	0°C - 70°C
Type of DDM / DOM	Internally calibrated
Networking Protocol	400G Ethernet, 4x 100G Ethernet, 100G Ethernet LAN
Type	DR4+
Operating Temp. (Min)	0°C
Operating Temp. (Max)	70°C
Vendor Switch Coding	MSA Standard, A10networks, ADTRAN, ADVA, Arista Networks, Check Point, Chelsio, Ciena (ex. Nortel), ECI, Edge Core, F5 Networks, Fluke Networks, Fortinet, Keymile, LANCOM, MikroTik, Motorola, Netgear, Nokia Networks, Oracle, Palo Alto Networks, Radware, Solarflare, Supermicro, TP-LINK, Transition Networks
CDR	TX and RX
Inbuilt FEC	No
Bandwidth Per Lane	106.25 Gbit/s
Receiver Min/Max	-6.4 dBm / 4.5 dBm (overload) @400G
SGMII	No
Transmit Min/Max	-2.4 dBm / 4 dBm
Power Consumption	12 W
Lane Count	4x (Tx/Rx)
Modulation	PAM4 @400G
Industry	Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications	Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Warranty	1 Year
Warranty Notes	AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team, Engineered to FLEXOPTIX exacting standards You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires
