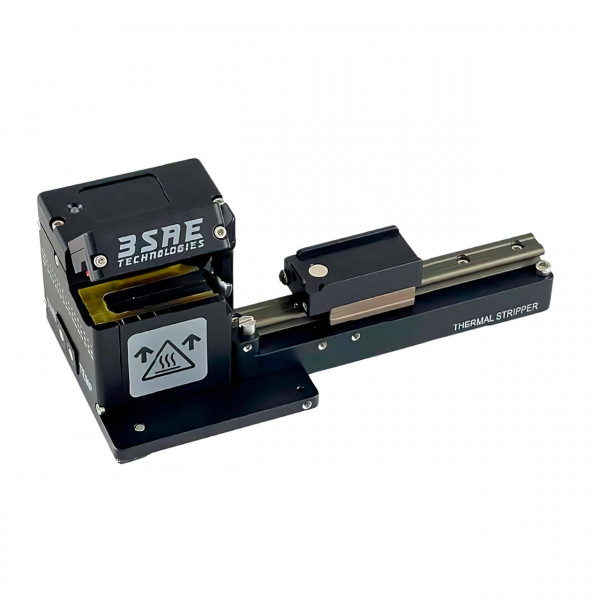

3SAE TS-HS Thermal Stripper High Strength
SKU #479030 |
MFR #ACC-01-0044
3SAE TS-HS are compact and easy to use optical fibre stripping units. Designed to thermo-mechanically remove coatings from 125 μm optical fibres. FITEL/Fujikura Fibre Holder Platform.
Contact to confirm lead time
Part Number
479030
Features
- Compact, low-maintenance bench top design
- High Strength version supports standard 125 μm acrylate coated fiber with buffer diameters up to 900 μm
- Adjustable temperature and time settings to accommodate different fiber coatings
- Available Fitel, Fujikura, 3SAE or Ericsson fiber holder compatible platforms
- Optional generic clamp for use without fiber holders
Introduction
The 3SAE Thermal Strippers are compact, easy-to-use fiber stripping units designed to thermo-mechanically remove coatings from optical fibers.
The High Strength Thermal Stripper supports standard 125 μm optical fibers, including 250 μm, 400 μm, and 900 μm coated fibers. Adjustable temperature and time settings allow it to adapt to stripping a variety of different coatings. The precision, self-centering blade design produces high strength stripping performance unmatched by previous flat blade strippers.
The High Strength Adjustable Thermal Stripper supports optical fibers with cladding diameters from 30 μm to 1000 μm, with buffer diameters up to 1200 μm. This includes standard 250 μm, 400 μm, and 900 μm coated fibers. Adjustable temperature and time settings allow it to adapt to stripping a variety of different coatings and cladding sizes.
3SAE's complete line of preparation tools, including the 3SAE Thermal Strippers, are configurable for use with Fitel, Fujikura, 3SAE or Ericsson fiber holders. Use of fiber holders provides a repeatable handling process across strip, clean, cleave and splice equipment for high strength splicing and improved yield.
3SAE's complete line of fiber holder compatible preparation tools incorporates the 3SAE Thermal Stripper, 3SAE Ultrasonic Cleaner, and 3SAE fiber cleavers.
Technical Specifications
- Dimensions: 158.5 (W) x 73.5 (D) x 74 (H) mm
- Weight: 445 grams
- Power Source:Input: 100-240 VAC, 50-60 Hz
- Output: 12V DC, 3 A
- Supported Fiber Types: 125 μm coated
- Supported Fiber Buffers: 250 – 900 μm
- Adjustable Temperature Range: 60 – 200 °C, or ambient
| Manufacturer | 3SAE | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer Part Number | ACC-01-0044 | ||||||||||||||||
| Product Series | 3SAE Thermal Stripper | ||||||||||||||||
| Product Type | Fiber Stripping Tools | ||||||||||||||||
| Fibre Compatibility | Large Diameter Fiber (LDF) | ||||||||||||||||
| Industry | Telecommunications, Aerospace and Defence, Fiber Optic Lasers, Medical, Optical Equipment Manufacturing (OEM), Research, Mining, Off-shore and Remote | ||||||||||||||||
| Applications | LDF (Large Diameter Fiber), PCF (Photonic Crystal Fiber) Splicing, Fiber Optic Lensing, Fiber Optic Tapering, OCD (Optical Combiner Development), LIDAR and remote sensing, Tunable heterodyne source | ||||||||||||||||
| Standard Package Contains | Standard Packages: 3SAE Thermal Stripper, High Strength - Fixed
Accessories and Consumables:
Standard Packages: 3SAE Thermal Stripper, High Strength - Fixed
|
||||||||||||||||
| Warranty | 1 Year | ||||||||||||||||
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team |
