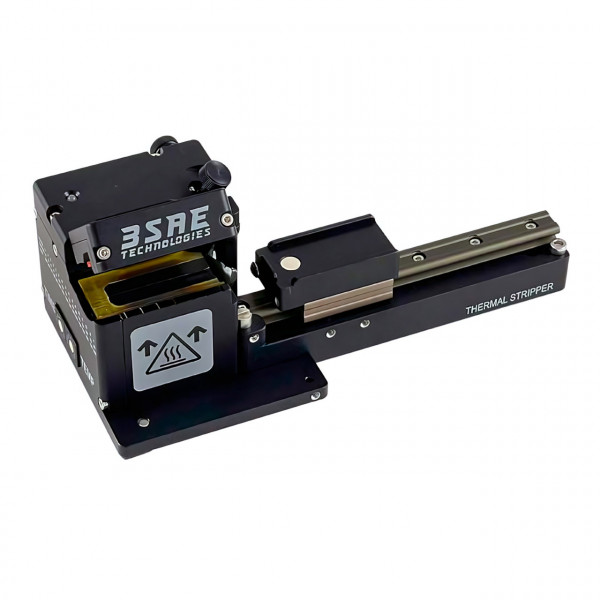

3SAE TS-ADJ Thermal Stripper Adjustable

Features

• Compact, low-maintenance bench top design
• Adjustable version supports cladding diameters from 30 μm to 1000 μm, with buffer diameters up to 1200 μm
• Adjustable temperature and time settings to accommodate different fiber coatings
• Available Fitel, Fujikura, 3SAE or Ericsson fiber holder compatible platforms
• Optional generic clamp for use without fiber holders
• Total Strip Length: 68mm

Introduction

The 3SAE Thermal Stripper High Strength – Adjustable models are compact, easy-to-use optical fiber stripping units designed to thermo-mechanically remove coatings from optical fibers.

The Thermal Stripper High Strength – Adjustable (TS-ADJ) supports optical fibers with cladding diameters ranging from 30 μm to 1000 μm, including standard 250 μm, 400 μm, and 900 μm coated fibers. It can also handle buffer diameters up to 1200 μm. The adjustable temperature and time settings of the TS-ADJ allow it to adapt to stripping a variety of different optical fiber coatings and cladding sizes.

3SAE offers a complete line of preparation tools, which includes the 3SAE Thermal Stripper, 3SAE Ultrasonic Cleaner, and 3SAE fiber cleavers. These tools are configurable for use with 3SAE, FITEL, and Fujikura fiber holders. By using fiber holders, you can ensure a repeatable handling process across strip, clean, cleave, and splice equipment, resulting in high strength fusion splicing and improved yield.

Technical Specifications

• Dimensions: 314 (W) x 78 (D) x 74 (H) mm
• Weight: 500 grams
• Power Source:Input: 100-240 VAC, 50-60 Hz
• Output: 12 VDC, 3 A
• Supported Fiber Types: High Strength: 125 μm coated; Adjustable: 30 – 1000 μm coated
• Supported Fiber Buffers: High Strength: 250 μm – 900 μm; Adjustable: 80 – 1200 μm
• Adjustable Temperature Range: 60 – 200 °C, or ambient
