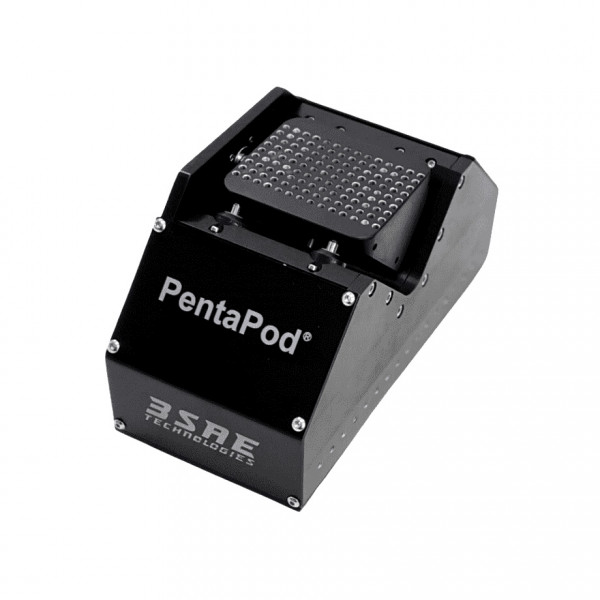

3SAE PentaPod® Multi-Axis Positioner
SKU #PPD-01-010X
The groundbreaking Kinematic Multi-Axis Positioning Stage from 3SAE. Seamlessly merges the benefits of both a Parallel stage and a Serial stage, delivering an impressive 5/6 Degrees of Freedom (DOF).
Contact to confirm lead time
Part Number
PPD-01-010X
Features
- Uses unique, patented, 5-degree of freedom joints that facilitate sub-micron precision motion in 5 or 6 axes.
- Offers a simple system integration with a single USB connection and no external controller required.
- Parallel Kinematic design providing exceptional positioning accuracy and stiffness.
- Software adjustable point of rotation.
- Small size and low profile without compromising on stroke, precision, or crosstalk.
- A fraction of the cost and complexity of a comparable Hexapod.
Introduction
The PentaPod®, developed by 3SAE, is a groundbreaking Kinematic Multi-Axis Micro Positioning Stage that combines the advantages of both Parallel (Hexapod) and Serial stages. With an impressive 5/6 Degrees of Freedom (DOF), this innovative design represents a significant leap forward in precision positioning technology.
Unparalleled Performance and Versatility
The PentaPod®'s patented "parallel kinematic design" delivers exceptional positional stiffness in the X and Z axes, while minimizing crosstalk across all axes. Its performance is remarkable, with the X and Z axes boasting a travel range exceeding 9mm and a measured resolution finer than 81nm. The XΘ and YΘ axes provide a 17° travel range, while the ZΘ axis offers 8°, all with a measured resolution better than 2.55µrad.
Singularity-Free Design
One of the key advantages of the PentaPod® over traditional Stewart Platforms (Hexapods) is its singularity-free design. This unique feature ensures that the stage can achieve any position within its operational range without the risk of binding due to kinematic constraints.
Streamlined and Compact
The PentaPod®'s compact design is further enhanced by the integration of all control electronics within the stage platform itself. This streamlined approach eliminates the need for bulky, external, multi-core controllers typically required to manage positional singularities and prevent stage binding in Stewart Platforms.
Today, the PentaPod® offers unparalleled performance and versatility in a compact, efficient package and represents a significant advancement in precision positioning technology.
Specifications
| Feature | Specification |
| Travel Range X (mm) | 9 |
| Travel Range Y (mm) (optional) | 11.5 |
| Travel Range Z (mm) | 11.5 |
| Travel Range θX (deg) | 17 |
| Travel Range θY (deg) | 17 |
| Travel Range θZ (deg) | 8 |
| Minimum incremental motion X, Z (um) | 0.081 |
| Minimum incremental motion Y (um) | 0.054 |
| Minimum incremental motion θX, θZ (urad) | 1.7 |
| Minimum incremental motion θY (urad) | 2.55 |
| Maximum Velocity X, Z (mm/sec) | 2 |
| Maximum Velocity Y (mm/sec) | 2.7 |
| Maximum Velocity θX, θY (mrad/sec) | 89 |
| Maximum Velocity θZ (mrad/sec) | 133 |
| Accuracy X, Y, Z (um) | 6 |
| Accuracy θX, θY, θZ (urad) | 150 |
| Max centered Load (g) | 2000 |
| Manufacturer | 3SAE |
|---|---|
| Product Series | 3SAE PentaPod Fusion Splicer (PFS) |
| Product Type | Optical Alignment Systems |
| Industry | Aerospace and Defence, Fiber Optic Lasers, Optical Equipment Manufacturing (OEM), Photonics, Research |
| Applications | High-Volume Manufacturing, High-Yield Manufacturing, LDF (Large Diameter Fiber), Specialty and Exotic Fiber Splicing, Fiber Preparation Equipment, PCF (Photonic Crystal Fiber) Splicing |
| Standard Package Contains |
|
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team |
