3SAE Liquid Clamp Cleaver II-S LDF (LCC II-S)

SKU #479071 | MFR #CLV-01-0015
Liquid Clamp Cleaver II-S LDF (LCC II-S), installed with 16mm F/H plate, cleave up to 1mm diameter
Request Quote
Request current lead time
Part Number
479071

Large Diameter Fiber Cleaver

 3SAE Liquid Clamp Cleaver II LDF

The 3SAE Liquid Clamp Cleaver II LDF, is the most advanced large diameter fiber cleaver for circular and shaped fibers from 125 μm to 1000 μm. It is available in two different models, the Liquid Clamp Cleaver II-S (LCC II-S) and Liquid Clamp Cleaver II-A (LCC II-A). The LCC II-S is designed for standard, non-angle cleaving while the LCC II-A features angle cleaving with rotation up to 30°.

The primary cause of bad cleave angles is torsional strain in the fiber, induced by torque from conventional clamps. This patented process features a completely torque-free clamping system, which uses a proprietary metal alloy ingot that melts at less than the boiling point of water. This is a lead-free, cadmium-free alloy ingot specially formulated to solidify tightly around the optical fiber when cooled, providing torque-free clamping, even on non-round fibers such as Octagonal shape. A solid-state temperature control system rapidly liquefies and solidifies the alloy as needed. When the alloy ingot is depleted by use, it can be easily replaced. These unique alloy ingots are available exclusively from 3SAE Technologies.

Both the LCC II-A and LCC II-S can optionally leverage an integrated manual backstop within the cleaver housing that provides enhanced cleave performance for structured fibers. Alignment of the blade, backstop, and fiber is achieved via the integrated side angle view vision system (requires PC connection). This perspective allows the user to easily verify the proper backstop and blade positioning for various fiber diameters prior to cleaving.

In addition to the best cleave quality obtainable, this LD cleaver has an on-board LCD that provides continuous status updates and instructs the operator in the proper loading and cleaving sequence. The menu system enables the operator to easily create, modify and use up to ten cleaving programs, allowing efficient transitions between different fiber diameters.



Product Features

  • Angled Cleaver with up to 30° of fiber rotation and the ability to cleave fiber up to 1 mm in diameter. (LCC II-A only)
  • Circular and shaped fiber compatible
  • Lowest mean cleave angles available
  • Lowest standard deviation available
  • Fiber holder compatible (16mm F/H standard, 18mm F/H with fiber holder adaptor plate)
  • Extended blade life
  • Integrated vision system for blade, backstop and fiber alignment.
  • Stores up to 10 programs
  • USB PC connection required for integrated vision system



Technical Specs

  • Dimensions: 188 (W) x 165 (D) x 245 (H) mm
  • Weight: 8 kg
  • Power Source: Input: 100 - 240 V, 50/60 Hz
  • Fiber Dimensions: 125 μm to 1000 μm
  • PC Interface: RS232 (9 pin D-sub, male)



Standard Package and Accessories

Product
LCC II LDF Models (Choose a Model)
Liquid Clamp Cleaver II-S LDF (LCC II-S)
Liquid Clamp Cleaver II-A LDF (LCC II-A)

Standard Package includes  Qty
Power Supply 1
Power Cord 1
125-350 μm Fiber Guide 1
350-650 μm Fiber Guide 1
650-1000 μm Fiber Guide 1
LCC Rev 2 Ingot, (10 per pkg) 1
User's Manual 1

Optional Components
LCC Rev 2 Ingot, (10 per pkg)
Spare Blade
LCC Fiber Holder Adaptor Plate (Fitel 18mm F/H)
LCC II SMA Connector Adapter
3SAE Ultrasonic Cleaner, Fitel/Fujikura 16 mm F/H Rail
3SAE Ultrasonic Cleaner, Fitel/Fujikura 18 mm F/H Rail



















More Information
Manufacturer 3SAE
Manufacturer Part Number CLV-01-0015
Product Series 3SAE Liquid Clamp Cleaver II-S LDF (LCC II-S)
Fiber Compatibility Large Diameter Fiber (LDF)
Industry Telecommunications, Aerospace and Defence, Fiber Optic Lasers, Medical, Optical Equipment Manufacturing (OEM), Research
Applications LDF (Large Diameter Fiber), PCF (Photonic Crystal Fiber) Splicing, Fiber Optic Tapering, OCD (Optical Combiner Development), Distributed Temperature and Strain (DTSS), Tunable heterodyne source
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:3SAE Liquid Clamp Cleaver II-S LDF (LCC II-S)
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Brochures and Specifications
Related Products
  1. 3SAE Large Diameter Splicing System - LDS 2.5
    3SAE Large Diameter Splicing System - LDS 2.5
    Request Quote

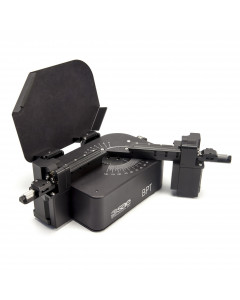

  2. 3SAE Large Diameter Bend Proof Tester (BPT)
